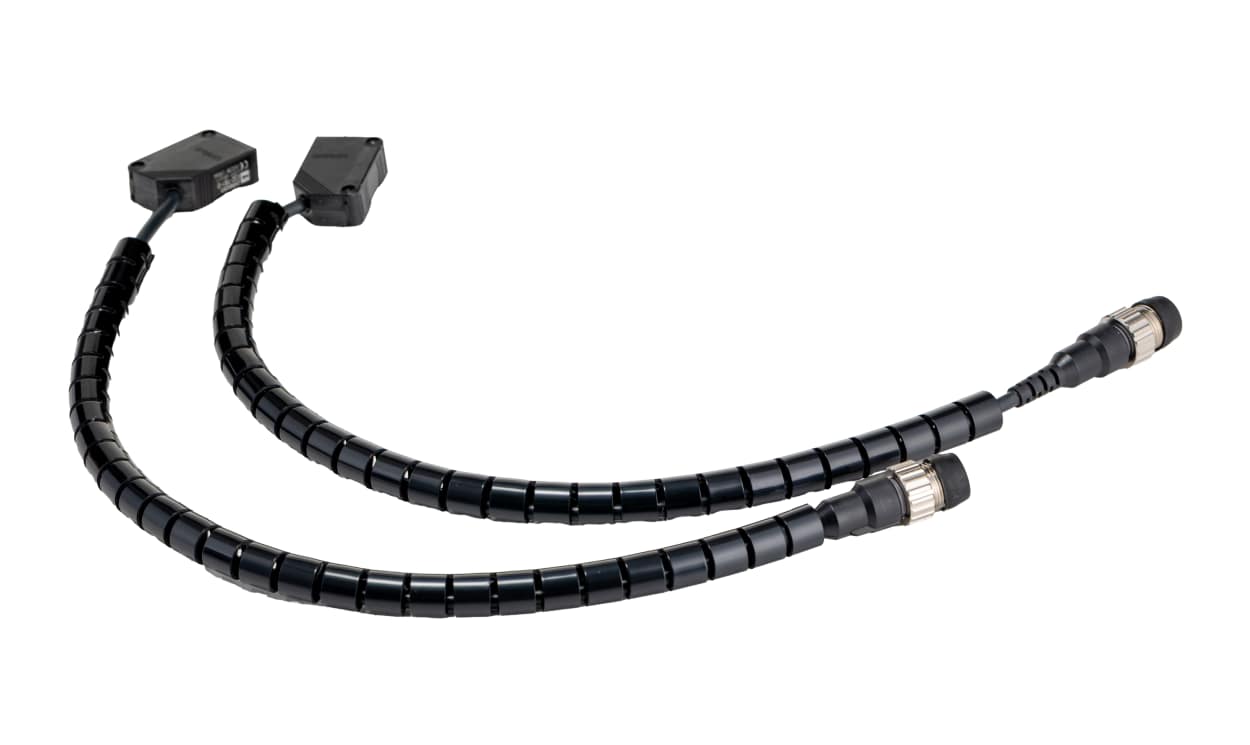

OMRON E3Z-T81-M1J-1 0.3M | Through-Beam Photoelectric Sensor | 15 m, PNP, Pre-Wired Cable
With a detection range of 15 m, the OMRON E3Z-T81-M1J-1 0.3M is a through-beam photoelectric sensor in a block-style housing that switches a PNP output. The unit is wired via a pre-wired cable, has an infrared LED light source and offers IP67 ingress protection.
- Maximum voltage 24 V DC
- Current rating up to 35 mA
- 1 ms response time
- Works from -25 °C to +55 °C
- Housing material: PBT
- Part of the OMRON E3Z series
- Detailed Description
- Specifications
- Downloads
Omron E3Z Series Photoelectric Sensor, 15m Detection Range, PNP Output Type - E3Z-T81-M1J-1 0.3M
Features & Benefits
• PNP output allows for easy integration with most systems
• Response time of 1ms ensures rapid detection
• IP67 rating provides protection against dust and water ingress
• Robust PBT housing withstands harsh environmental conditions
Applications
• Ideal for material handling processes in production lines
• Suitable for packaging machinery where reliability is critical
• Utilised in cold-storage facilities due to low-temperature operation capability
• Enhances safety in logistic by detecting object presence
How does this sensor perform in varying temperature conditions?
What types of connectivity options are available for integration?
Can this product help reduce false triggers from environmental factors?
What is the maximum current consumption for this sensor?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Through Beam |
| Detection Range | 15 m (49.2 ft) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | Pre-Wired Cable |
| Light Source | Infrared LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP67 |
| Maximum Current | 35 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | Wire Lead |
