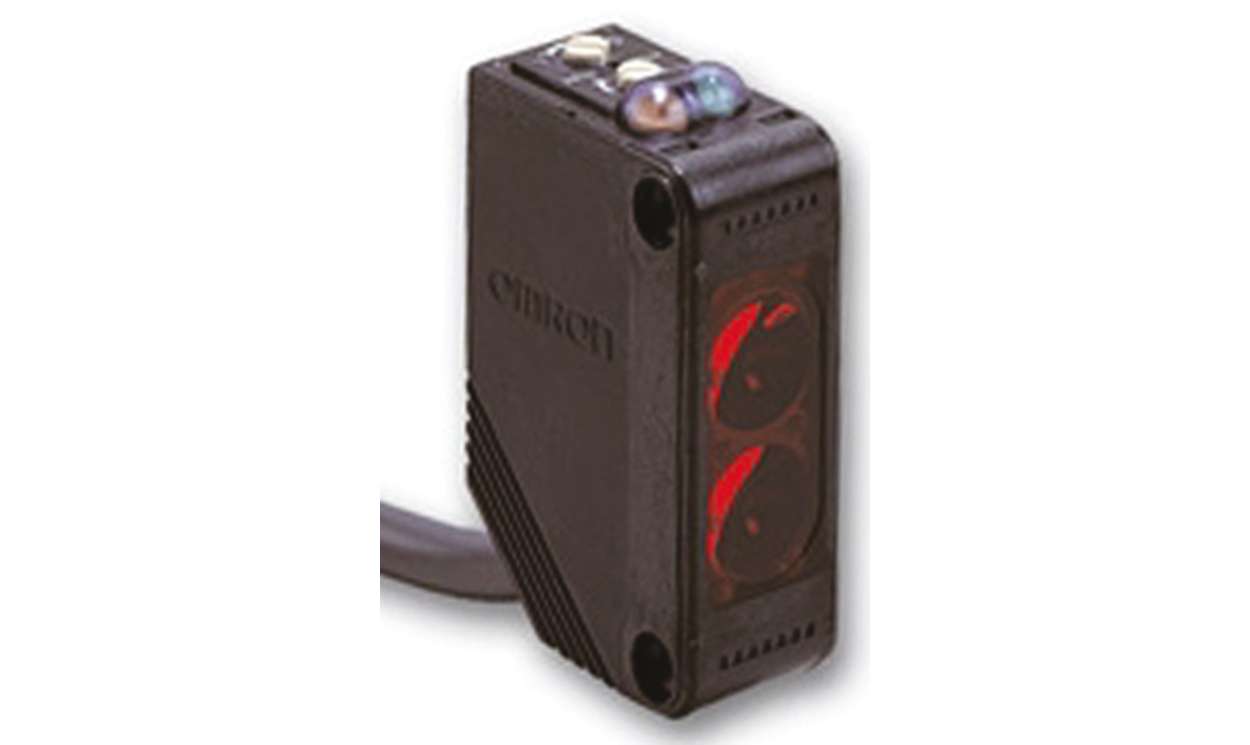

Name: Omron E3Z-T86A, Through Beam Photoelectric Sensor, Block Sensor, 10 mm Detection Range
Brand: OMRON
SKU: E3Z-T86A
Availability: OutOfStock

Omron E3Z-T86A, Through Beam Photoelectric Sensor, Block Sensor, 10 mm Detection Range

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E3Z-T86A, Through Beam Photoelectric Sensor, Block Sensor, 10 mm Detection Range

Part Number : E3Z-T86A

Availability: Sold out

Detailed Description
Specifications

E3Z Miniature High Performance Sensors

Through-beam (Infrared LED), Retro-reflective (Visible red LED) and Diffuse scan (Infrared LED) photoelectric sensors

IP67 rated PBT housing with methacylate lens
PNP and NPN output configurations
Light ON/dark ON selectable
Small dead-band for sensing close targets
Retro-reflective versions have polarised light source for shiny object detection
Short circuit and reverse polarity protection
Mutual interference protection (retro and diffuse versions only)
Operating temperature range -25° → +55°C

Note

For suitable reflector see stock no. 171-3779 (3m range)

Brand	Omron
Sensor Style	Block
Detection Type	Through Beam
Detection Range	10 mm
Output Type	PNP
Electrical Connection	M8 Connector
Maximum DC Voltage	26.4V
Terminal Type	Connector
Light Source	LED
IP Rating	IP67
Maximum Current	100 mA
Response Time	1 ms
Series	E3Z
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-25°C
Housing Material	Polybutylene Terephthalate
