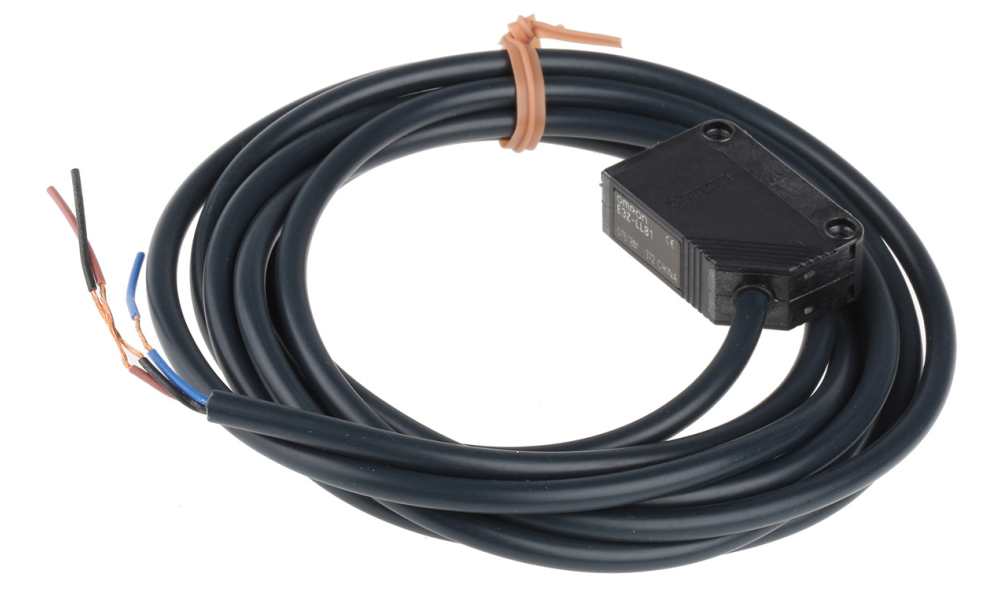

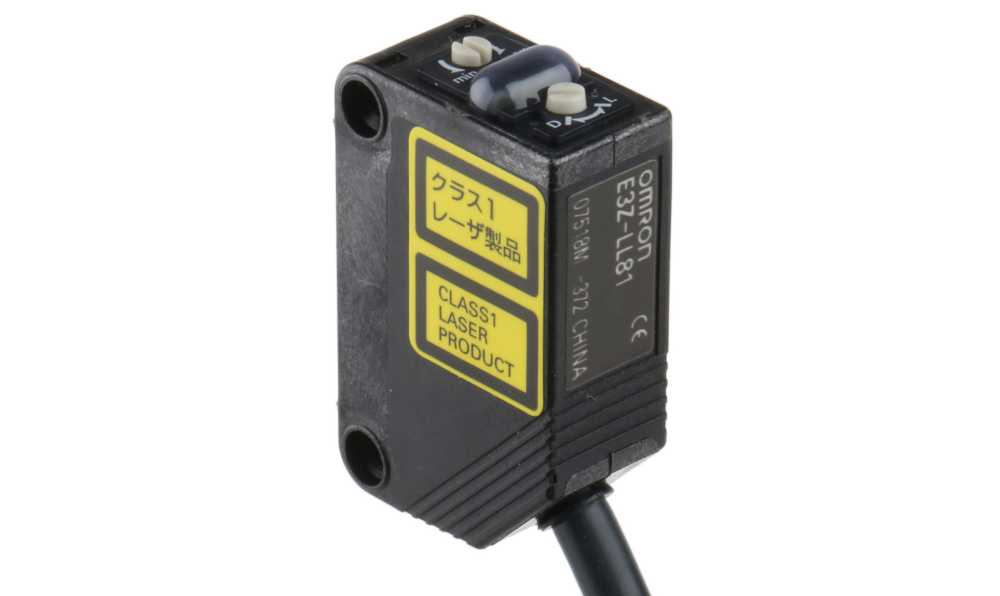

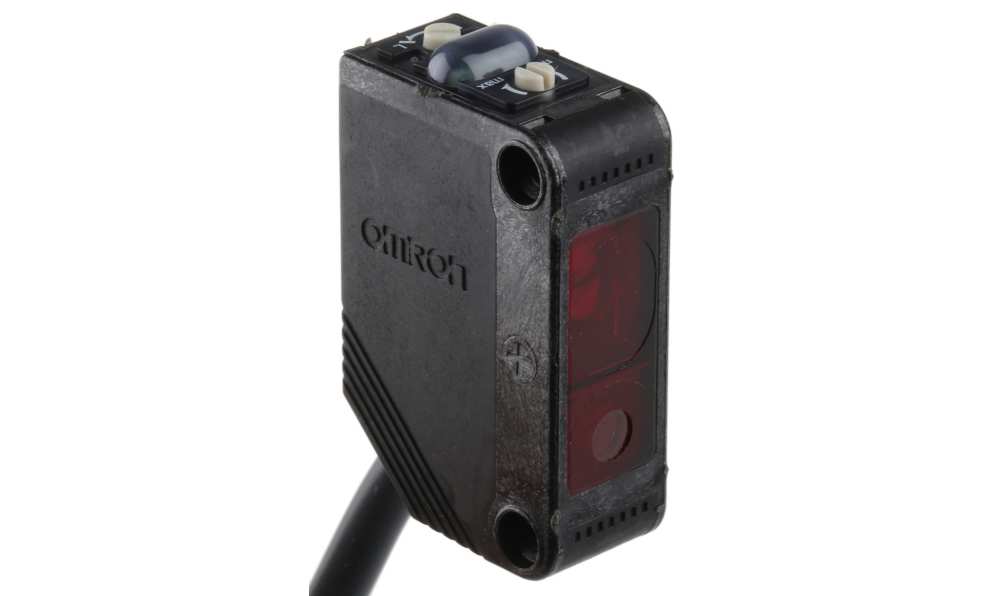

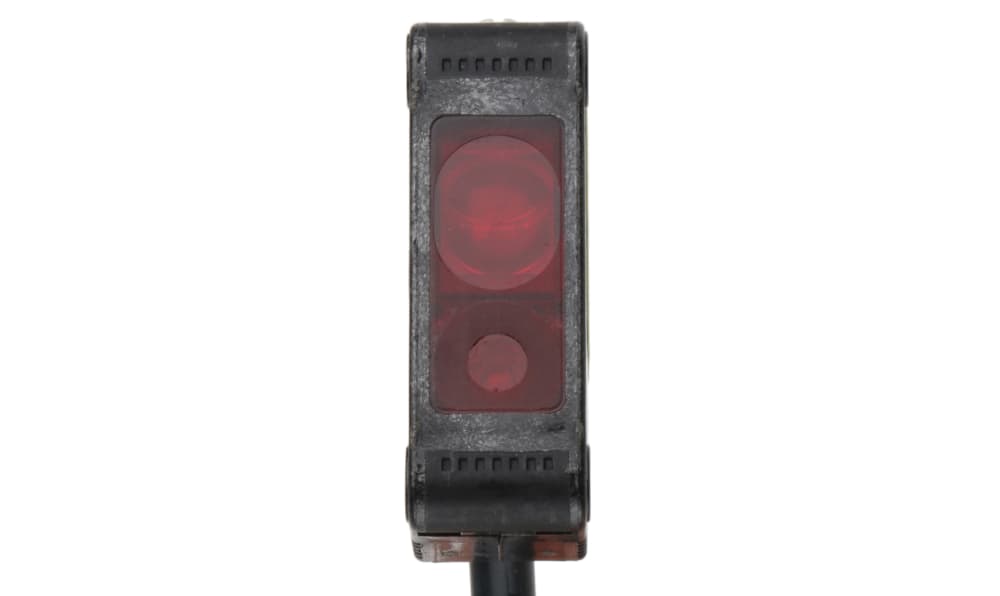

OMRON E3ZLL812M | Background Suppression Photoelectric Sensor | 20 mm to 300 mm, PNP, 2 m Cable
The OMRON E3ZLL812M is a block-style background suppression photoelectric sensor with a detection range of 20 mm to 300 mm and a PNP output. This sensor connects through a 3-wire 2 m cable, works with an LED light source and meets IP67 protection.
- Up to 26.4 V DC supply
- 100 mA maximum current
- Responds in 1 ms
- Temperature range -10 °C to +55 °C
- Body in PBT
- Series: E3Z
- Detailed Description
- Specifications
- Downloads
E3Z Miniature Laser Sensors
Class 1 Laser light sources– no worrying over safety concerns
Longer sensing ranges
Through beam: 60m range
Retro-reflective: 15m range
Background suppression (BGS): 300mm range
Excellent response with different target colours (diffuse type)
0.5mm spot size on BGS model
IP69K rated
Compact size
| Brand | Omron |
| Series | E3Z |
| Detection Type | Background Suppression |
| Detection Range | 20 mm → 300 mm (0.787 to 11.8 in) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | 3 Wire Cable 2 m |
| Light Source | LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 26.4V |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
