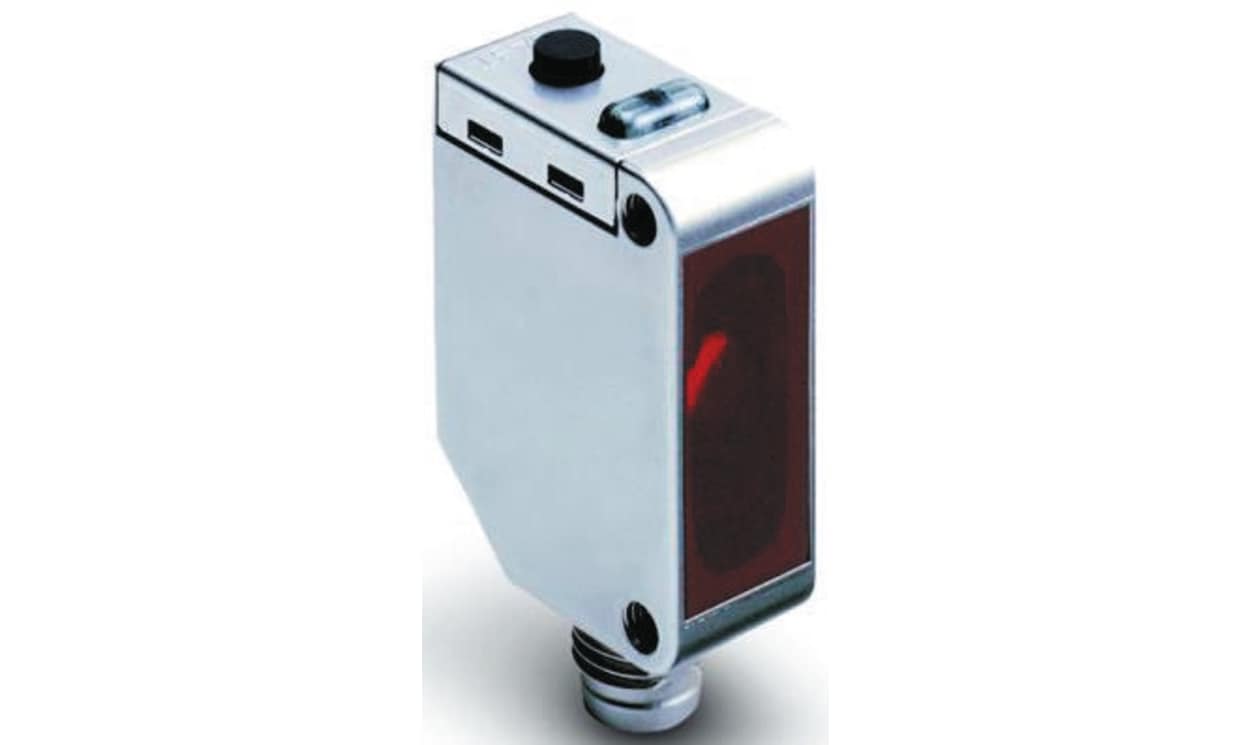

OMRON E3ZM-B61 2M | Retroreflective Photoelectric Sensor | 500 mm, NPN, Pre-Wired Cable
With a detection range of 500 mm, the OMRON E3ZM-B61 2M is a retroreflective photoelectric sensor in a block-style housing that switches an NPN output. The unit is wired via a pre-wired cable, has an LED light source and offers IP69K ingress protection.
- Supply up to 30 V DC
- Max. current 100 mA
- Response time 1 ms
- Operating temperature -40 °C to +60 °C
- Stainless steel housing
- E3ZM series
- Detailed Description
- Specifications
- Downloads
E3ZM-B Retro-Reflective Sensor
Stabile and reliable detection in difficult environments
High grade IP69K SUS housing
Designed for aggressive cleaning detergents of Food-Industry
One operation setup
| Brand | Omron |
| Series | E3ZM |
| Detection Type | Retroreflective |
| Detection Range | 500 mm (19.7 in) |
| Sensor Style | Block |
| Output Type | NPN |
| Electrical Connection | Pre-Wired Cable |
| Light Source | LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 30V |
| IP Rating | IP69K |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +60 °C (140 °F) |
