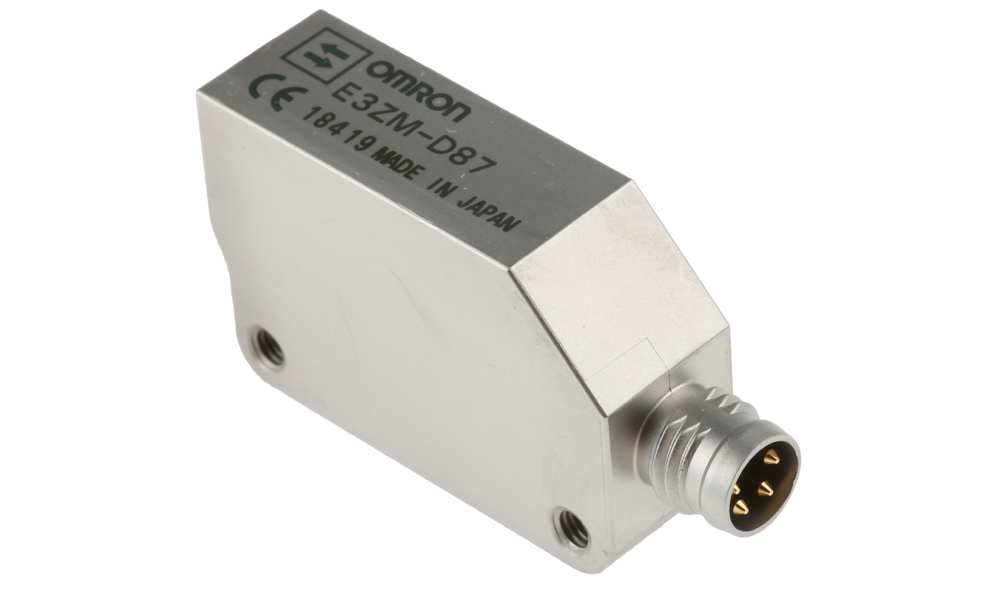

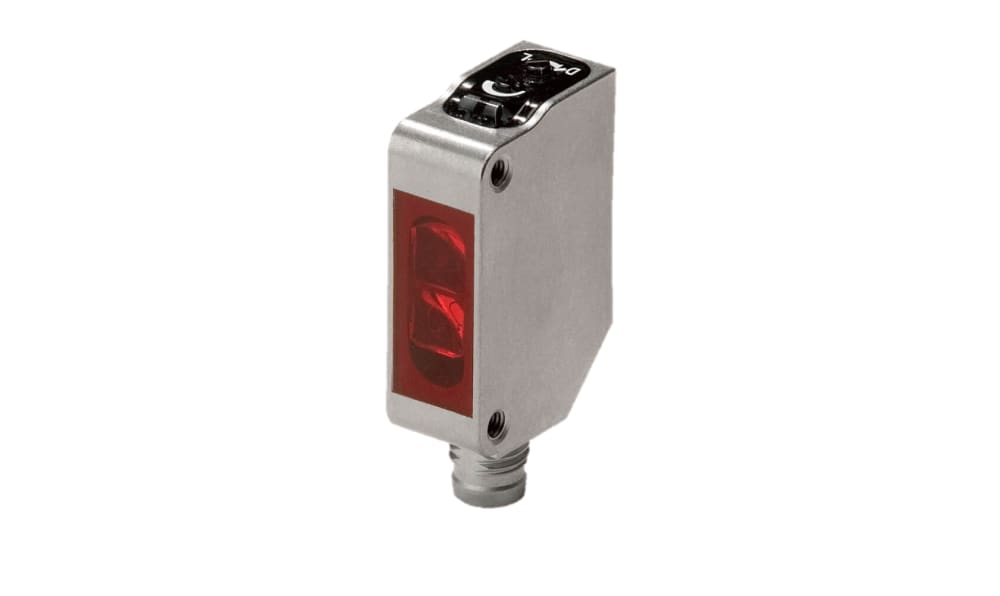

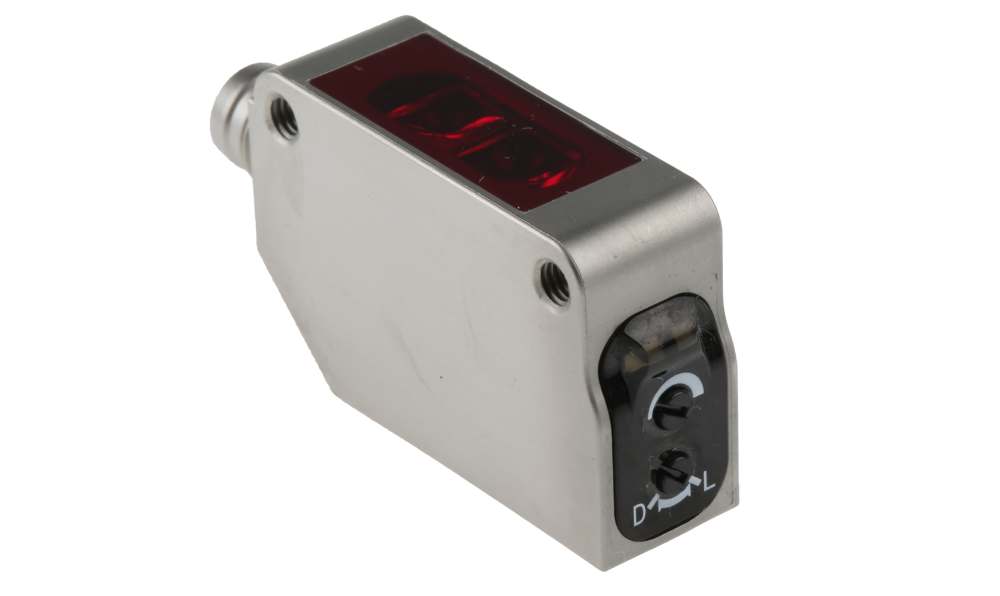

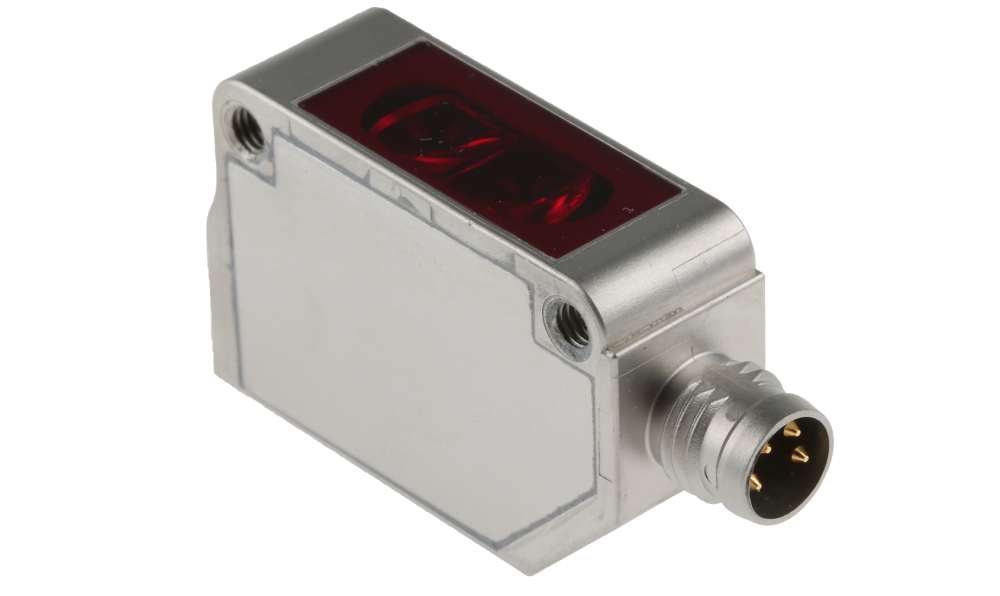

OMRON E3ZM-D87 | Diffuse Photoelectric Sensor | 1 m, PNP, M8 4-Pin
With a detection range of 1 m, the OMRON E3ZM-D87 is a diffuse photoelectric sensor in a block-style housing that switches a PNP output. The unit is wired via an M8 4-pin connector, has an infrared light source and offers IP69K ingress protection.
- Up to 30 V DC supply
- 100 mA maximum current
- Responds in 1 ms
- Temperature range -25 °C to +55 °C
- Body in stainless steel
- Series: E3ZM
- Detailed Description
- Specifications
- Downloads
Omron E3ZM Series Photoelectric Sensor, 1m Detection Range, IP69K - E3ZM-D87
Features & Benefits
• IP67 and IP69K ratings provide protection against dust and water
• Rapid response time of 1ms allows quick detection
• Suitable for high-temperature applications with a maximum temperature of +55°C
• Utilises infrared detection for dependable object sensing
Applications
• Ideal for environments requiring frequent cleaning and disinfection
• Employed in conveying systems to monitor product flow
• Applied in packaging and bottling lines to prevent contamination
• Useful in automated assembly lines for precise control
What is the installation process for this sensor?
How does it respond to different object materials?
Is it compatible with existing automation systems?
What maintenance is required for optimal performance?
| Brand | Omron |
| Series | E3ZM |
| Detection Type | Diffuse |
| Detection Range | 1 m (3.28 ft) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | M8 4 Pin Connector |
| Light Source | Infrared |
| Response Time | 1 ms |
| Maximum DC Voltage | 30V |
| IP Rating | IP69K |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +55 °C (131 °F) |
