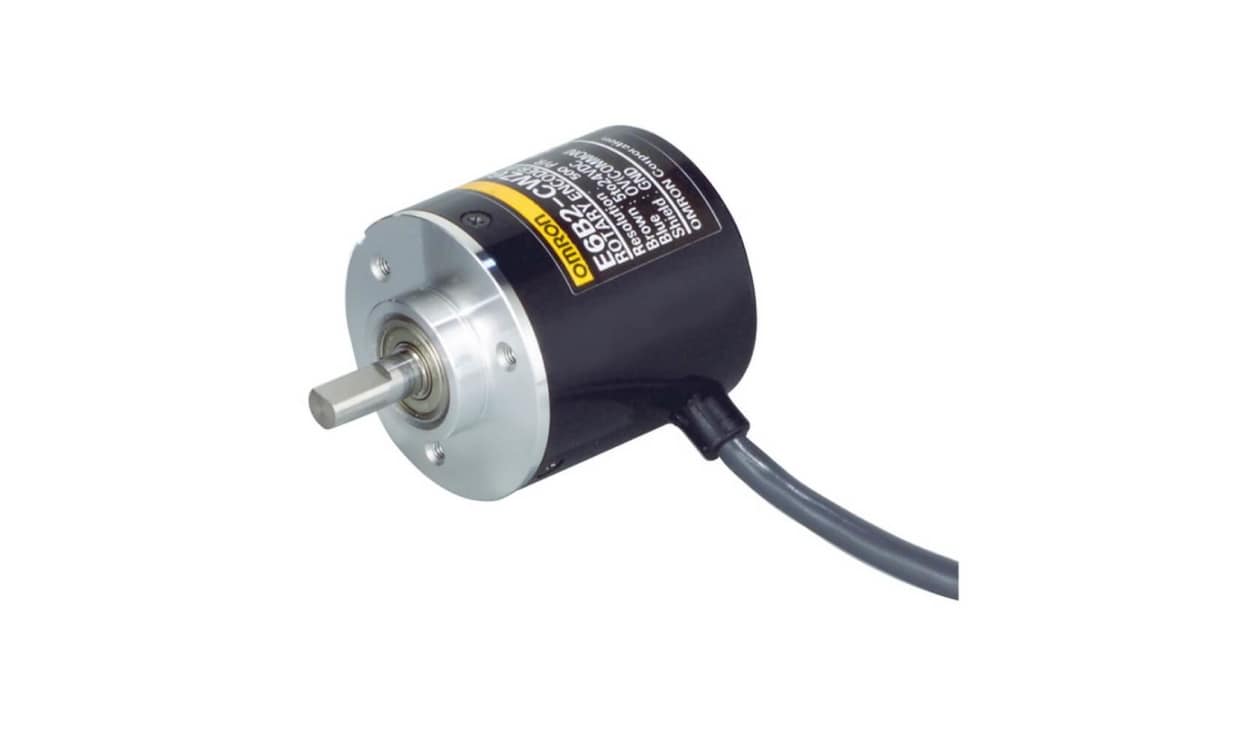

OMRON E6B2-CWZ5B 360P/R 2M | Incremental Encoder | 360 ppr, PNP Open Collector, 6 mm Shaft

Name: OMRON E6B2-CWZ5B 360P/R 2M | Incremental Encoder | 360 ppr, PNP Open Collector, 6 mm Shaft
Brand: OMRON
SKU: E6B2-CWZ5B 360P/R 2M
Availability: OutOfStock

Part Number : E6B2-CWZ5B 360P/R 2M

Rated at 360 ppr with a PNP open-collector output, the OMRON E6B2-CWZ5B 360P/R 2M belongs to the E6B2-C incremental encoder series. It has a 6 mm shaft, accepts 12 to 24 V DC and turns at up to 6000 rpm.

Resolution: 360 ppr
Output: PNP open collector
Supply: 12 to 24 V DC
Shaft diameter: 6 mm
Speed up to 6000 rpm

Availability: in stock

Detailed Description
Specifications
Features
Downloads

The Omron general purpose incremental rotary encoder with large shaft of 40 diameter has a wide operating voltage range from 5 to 24 VDC. A large load of 30 N in the radial direction and 20 N in the thrust direction are permitted. The load short-circuit and reversed connection protecting circuit assure high operation reliability.

Shock resistance strengthened by metal disk
Available with line driver output

Brand	Omron
Encoder Technology	Incremental
Series	E6B2-C
Pulses Per Revolution	360ppr
Maximum Revolutions	6000rpm
Output Signal Type	PNP Open Collector
Shaft Type	Radial, Thrust
Shaft Diameter	6mm
