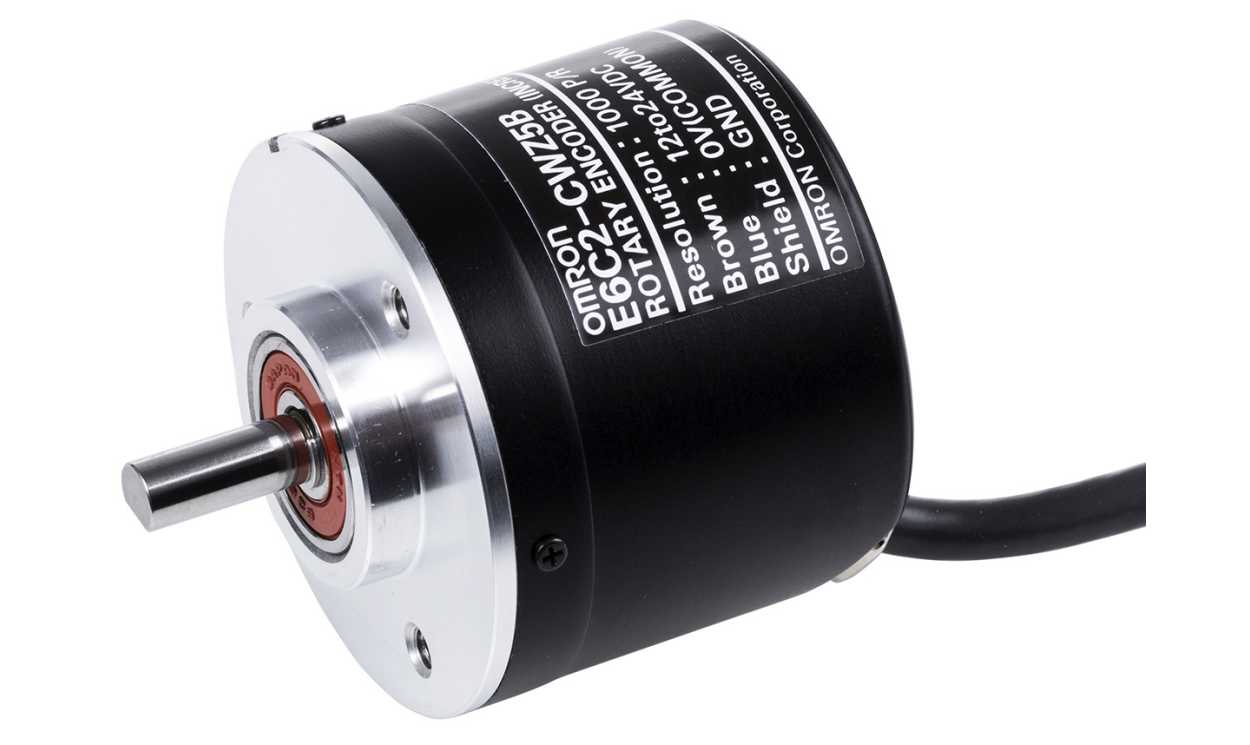

Omron E6C2-CWZ5B 1000P/R 2M OMS, E6C2 Series Incremental Incremental Encoder, 1000 ppr, Open Collector Signal, Solid Type, 6mm Shaft

Name: Omron E6C2-CWZ5B 1000P/R 2M OMS, E6C2 Series Incremental Incremental Encoder, 1000 ppr, Open Collector Signal, Solid Type, 6mm Shaft
Brand: OMRON
SKU: E6C2-CWZ5B 1000P/R 2M OMS
Availability: OutOfStock

Part Number : E6C2-CWZ5B 1000P/R 2M OMS

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E6C2 Series Incremental Encoder, 6000RPM Maximum, 12 to 24V DC Supply Voltage - E6C2-CWZ5B 1000P/R 2M OMS

This incremental encoder is designed for precise movement tracking and position control in various automation systems. It delivers consistent performance suitable for a wide range of industrial applications, ensuring accurate feedback for speed and movement control.

Features & Benefits

• Solid shaft design enhances durability under load
• Supports speeds up to 6000RPM for high-speed applications
• IP64 rating offers protection against dust and moisture
• Open collector output simplifies connections with control systems
• High resolution of 1000p/rev ensures precise measurements
• Versatile cable connections with angled pre-wired options

Applications

• Precise motor control in automated machinery
• Accurate positioning feedback in robotics
• Speed monitoring in conveyor systems
• Position tracking for CNC machines
• Consistent motion control in packaging equipment

Can it be used in environments with moisture?

Yes, it has an IP64 rating, which protects against dust and moisture.

What voltage range does it operate on?

It functions within a supply voltage of 12 to 24V DC.

Is installation straightforward?

Yes, the pre-wired cable connections facilitate easy installation.

What is the maximum switching frequency?

The encoder supports a maximum switching frequency of 50kHz.

Does it require a special mounting bracket?

No, standard mounting options are available

however, consider accessories for optimal installation.

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Incremental
Series	E6C2
Pulses Per Revolution	1000
Maximum Revolutions	6000rpm
Output Signal Type	Open Collector
Shaft Type	Solid
Supply Voltage	12 → 24 V dc
Shaft Diameter	6mm
Resolution	1000 P/R
IP Rating	IP64
Overall Height	40mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C
Switching Frequency	50 kHz
