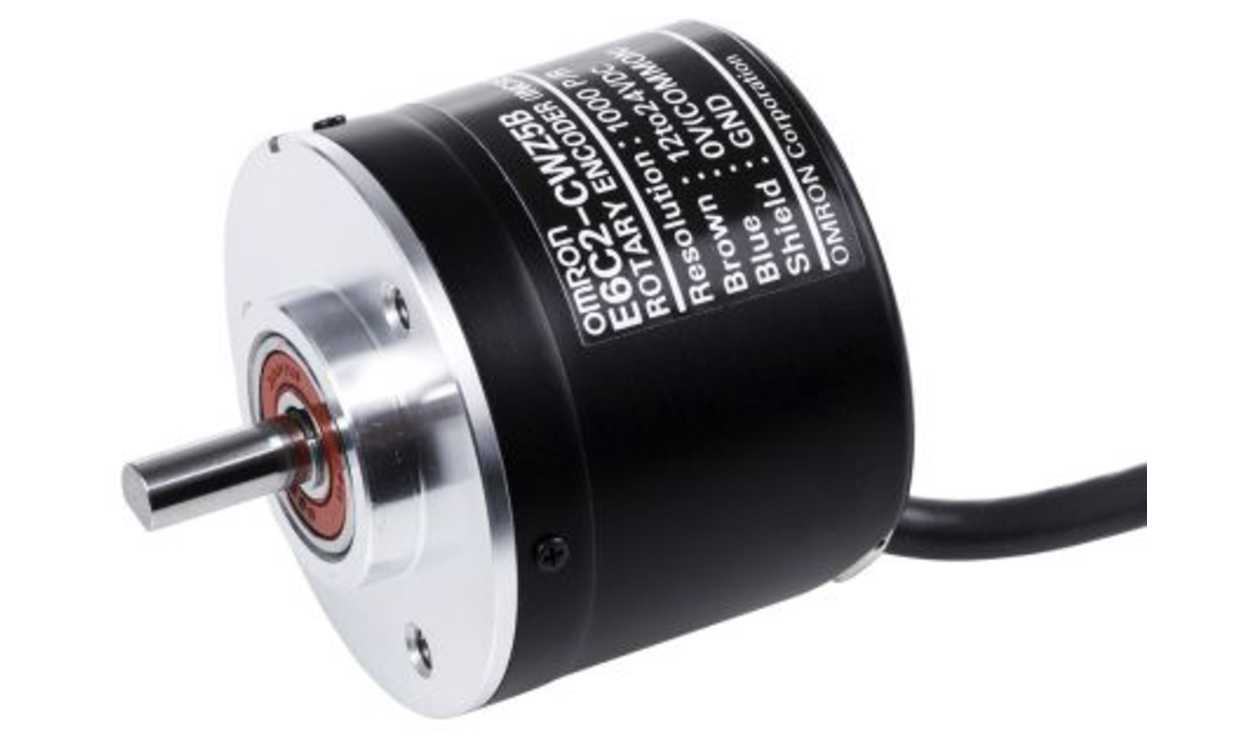

OMRON E6C2-CWZ5B 2000P/R 2M | Incremental Encoder | 2000 ppr, PNP, 6 mm Solid Shaft, IP64

OMRON E6C2-CWZ5B 2000P/R 2M | Incremental Encoder | 2000 ppr, PNP, 6 mm Solid Shaft, IP64

Part Number : E6C2-CWZ5B 2000P/R 2M

Combining 2000 ppr with a PNP open-collector output and a 2 m cable, the OMRON E6C2-CWZ5B 2000P/R 2M is an E6C2-C series incremental encoder. It mounts by clamping flange, has a 6 mm solid shaft and carries IP64.

  • 2000 ppr, PNP open collector, 50 kHz
  • 12 to 24 V DC, 100 mA
  • 6 mm solid shaft, 6000 rpm max
  • Clamping flange mounting
  • IP64, 50 x 60 mm (W x H)
  • 2 m cable, -10 °C to +70 °C
Availability: in stock
For pricing, please contact our experts.
