OMRON E6C3-CWZ5GH 2000P/R 2M | Incremental Encoder | 2000 ppr, NPN Open Collector, 8 mm Shaft

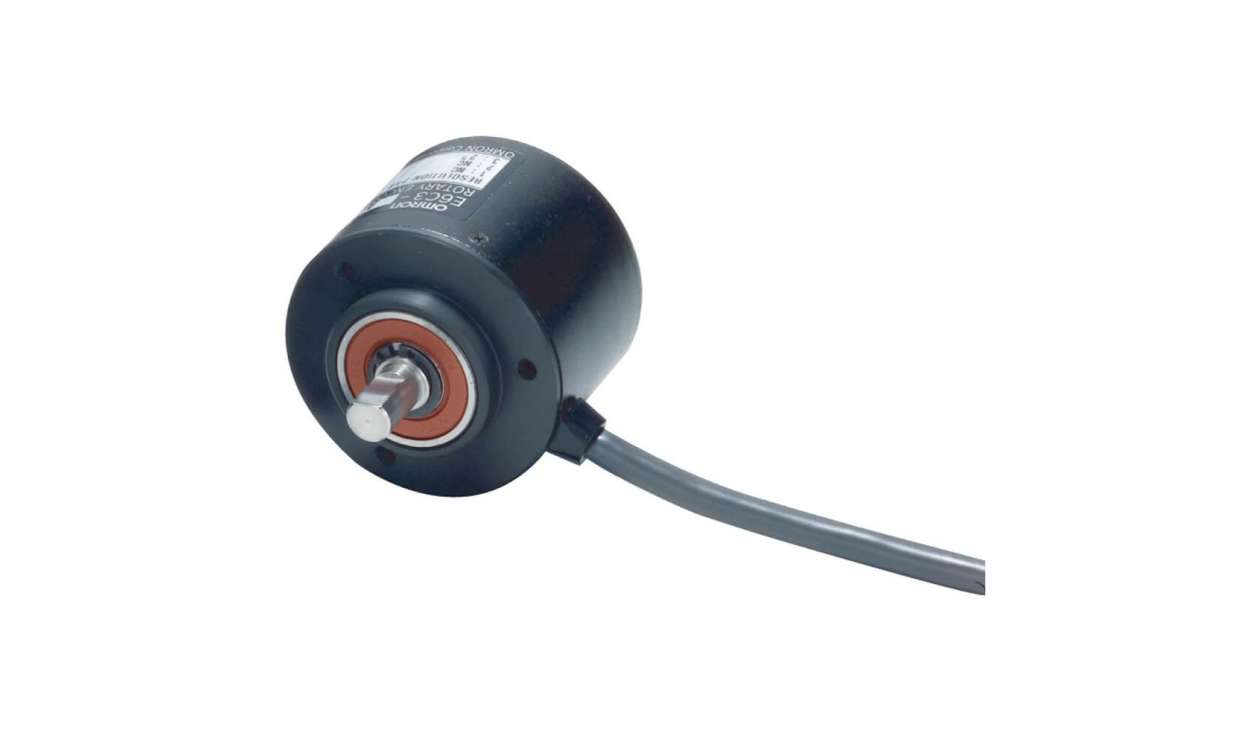

Name: OMRON E6C3-CWZ5GH 2000P/R 2M | Incremental Encoder | 2000 ppr, NPN Open Collector, 8 mm Shaft
Brand: OMRON
SKU: E6C3-CWZ5GH 2000P/R 2M
Availability: OutOfStock

Part Number : E6C3-CWZ5GH 2000P/R 2M

The OMRON E6C3-CWZ5GH 2000P/R 2M is an E6C3-C series incremental encoder producing 2000 ppr from an NPN open-collector output. It has an 8 mm shaft and a 6000 rpm speed rating.

E6C3-C series
2000 ppr
NPN open collector output
8 mm shaft
6000 rpm maximum

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron Rugged rotary encoder is a incremental model. This has coupling, mounting bracket and hex head spanner type accessary which are sold separately. Power supply reverse polarity protection and output load short circuit protection are compatible.

External diameter of 50 mm
Resolution of up to 3600 par
IP65 protection
Superior shaft loading performance

Brand	Omron
Encoder Technology	Incremental
Pulses Per Revolution	2000ppr
Series	E6C3-C
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Radial, Thrust
Shaft Diameter	8mm
