OMRON F3S-TGR-NLMC-21-M1J8 | Magnetic Non-Contact Safety Switch | NO/2NC, M12 Connector

Name: OMRON F3S-TGR-NLMC-21-M1J8 | Magnetic Non-Contact Safety Switch | NO/2NC, M12 Connector
Brand: OMRON
SKU: F3S-TGR-NLMC-21-M1J8
Availability: OutOfStock

Part Number : F3S-TGR-NLMC-21-M1J8

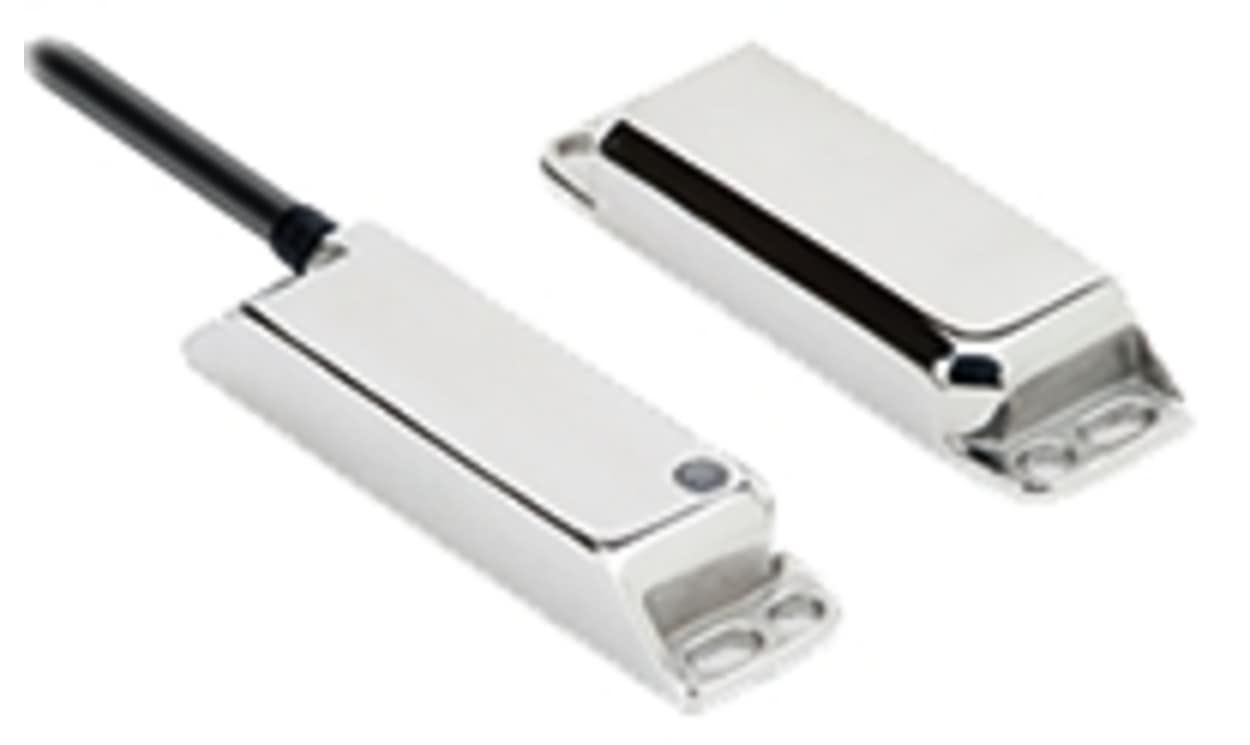

Fitted with an M12 connector and NO/2NC contacts, the OMRON F3S-TGR-NLMC-21-M1J8 is a magnetic non-contact safety switch in a stainless steel housing. Listed ratings include 3 approach directions, a 10 mm switching distance, IP67 protection, Safety Category 4, a 24 V dc supply and a coded actuator (included).

Switching distance: 10 mm
Safety contacts: NO/2NC
Connection: M12 connector
Housing: stainless steel
Protection rating: IP67
Safety category: 4

Availability: in stock

Detailed Description
Specifications
Downloads

F3S-TGR Non Contact Safety Switch

The F3S-TGR non contact safety switches are designed to interlock hinge, sliding or removable guard doors. Plastic and stainless steel switches are available, the latter are ideally suited to high hygiene demands in the food industry. The switches have a long sensing range to avoid false signals resulting from an ill aligned door, for example.

Non-contact equals no abrasion which means no particles
Excellent coverage of mechanical tolerances
Can operate behind stainless steel fittings
Screw hole covers

F3S-TGR-N_C Switch

Connect up to 3 switches in series
LED for easy diagnosis
Electronic output (potential-free optocoupler output)
IP67 protection

F3S-TGR-N_R Switch

Connect up to 6 switches in series
Reed contacts
IP67 protection

Note

Models F3S-TGR-N_C are coded.
Actuator is included.
For suitable controller see the G9SA or G9SB from Omron, or the NE1A DeviceNet system.

Standards

EN standards certified by TÜV Rheinland, EN 954-1, EN ISO 13849-1, EN 60204-1, EN/IEC 60947-5-3, UL 508, CSA C22.2, BS 5304, EN 1088-1 conformance.

Brand	Omron
Supply Voltage	24V dc
Safety Contacts	NO/2NC
Housing Material	Stainless Steel
Connection Type	M12
Actuator Type	Coded
Sensor Principle	Magnetic
Safety Category	4
Actuator Included	Yes
Switching Distance	10 mm
Series	F3S-TGR-N_C
IP Rating	IP67
Supply Current	50mA
Number of Approach Directions	3
