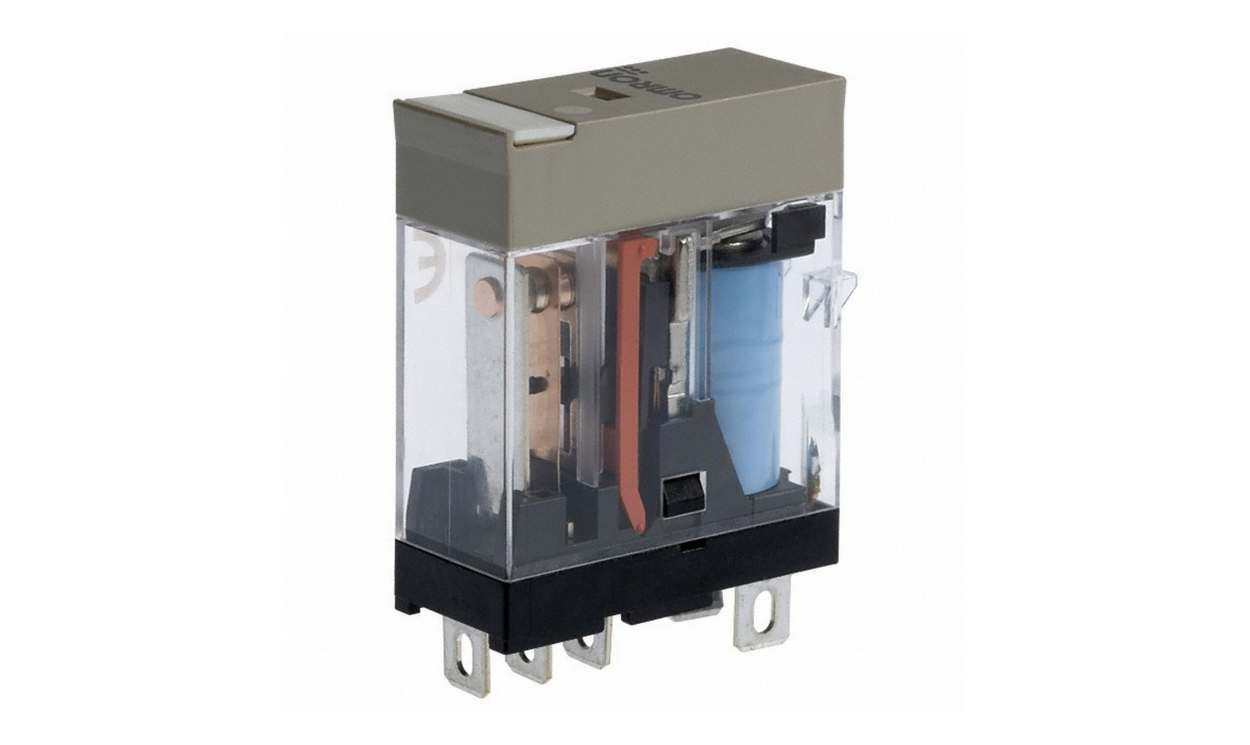

Name: Omron G2R-1-SND-AP3 24VDC (S), Plug In Relay, 24V dc Coil, 10A Switching Current, SPDT
Brand: OMRON
SKU: G2R-1-SND-AP3 24VDC (S)
Availability: OutOfStock

Omron G2R-1-SND-AP3 24VDC (S), Plug In Relay, 24V dc Coil, 10A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2R-1-SND-AP3 24VDC (S), Plug In Relay, 24V dc Coil, 10A Switching Current, SPDT

Part Number : G2R-1-SND-AP3 24VDC (S)

Availability: Sold out

Detailed Description
Specifications

Omron G2R-1 Series Relay, 24 V DC Coil Voltage, 10A Switching Current - G2R-1-SND-AP3 DC24(S)

This relay is designed for use in various applications within the automation and electrical sectors. Operating at a coil voltage of 24V DC, it features a Single Pole Double Throw (SPDT) contact configuration that aids in efficient circuit management. Its plug-in mounting type makes installation straightforward and comfortable, accommodating a switching current of 10A.

Features & Benefits

• High coil resistance of 1113 ohm improves energy efficiency
• Rated for maximum switching voltage of 440V AC
• Robust contact material enhances durability under high load
• Operates effectively from -40°C to +70°C for versatility
• Meets UL 508 and VDE standards ensuring reliability
• Plug-in design allows for easy replacement and maintenance

Applications

• Utilised in industrial automation systems for reliable control
• Common choice for electrical switchgear in machinery
• Integrated into HVAC systems for efficient operation
• Suitable for use in smart home technologies and controls
• Employed in safety systems requiring dependable performance

What is the significance of the SPDT configuration in this relay?

The SPDT configuration allows control of multiple circuits with a single device, providing flexibility in application and ensuring reliable switching between different inputs.

How does the maximum operating temperature affect functionality?

The wide operating temperature range from -40°C to +70°C ensures that it remains functional in extreme environments, making it suitable for diverse industrial applications.

What standards does this relay conform to?

This device meets UL 508 and VDE standards, which affirm its safety, reliability, and performance in industrial settings, ensuring it complies with regulatory requirements.

What benefits does the high coil resistance provide?

A high coil resistance of 1113 ohm minimises energy consumption during operation, leading to enhanced efficiency and reduced operational costs in long-term use.

What type of applications require a relay rated for 10A?

Applications requiring current switching up to 10A, such as lighting control, motor activation, or other medium-power devices, benefit significantly from the capabilities of this relay.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	1
Series	G2R-1
Terminal Type	Plug In
Maximum Switching Voltage AC	440V
Maximum Switching Voltage DC	125V
Coil Resistance	1113 Ω
Coil Power	530mW
Contact Material	AgSnIn + Au
Minimum Operating Temperature	-40°C
Standards Met	UL, VDE
Maximum Operating Temperature	+70°C
