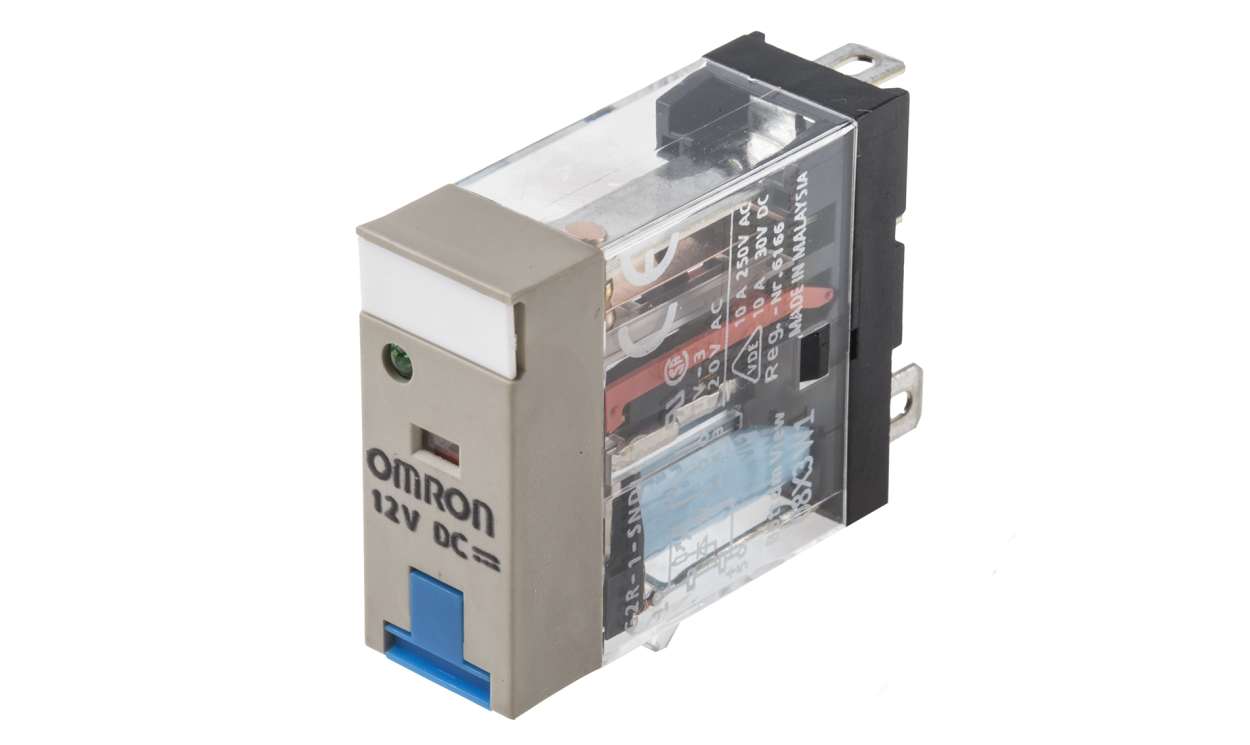

Name: Omron G2R-1-SNDI 12VDC (S), PCB Mount Non-Latching Relay, 12V dc Coil, 10A Switching Current, SPDT
Brand: OMRON
SKU: G2R-1-SNDI 12VDC (S)
Availability: OutOfStock

Omron G2R-1-SNDI 12VDC (S), PCB Mount Non-Latching Relay, 12V dc Coil, 10A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2R-1-SNDI 12VDC (S), PCB Mount Non-Latching Relay, 12V dc Coil, 10A Switching Current, SPDT

Part Number : G2R-1-SNDI 12VDC (S)

Availability: Sold out

Detailed Description
Specifications

Omron G2R Series Non-Latching Relay, SPDT Contact Configuration, 10A Switching Current - G2R-1-SNDI DC12(S)

This non-latching relay is suitable for a wide range of applications in automation and control systems, making it a common component in electrical and mechanical sectors. With a coil voltage of 12V DC, it efficiently manages high switching currents. This relay is designed for general-purpose use, adhering to stringent standards for performance and dependability.

Features & Benefits

• SPDT configuration allows multiple circuit Applications
• Quick connect terminals facilitate easy installation
• Maximum switching power of 2.5 kVA ensures effective performance
• Compact design for ease of integration in limited spaces
• High coil resistance of 278 ohm promotes energy efficiency

Applications

• Used in industrial automation systems
• Suitable for relay control panels in electrical devices
• Employed in HVAC systems for switching operations
• Utilised in machinery for control functions
• Applicable for electronic equipment requiring high switching current

What is the typical life expectancy of this relay in operation?

The relay is designed for prolonged service life, often exceeding one million cycles under standard operating conditions.

Can it be used in low-voltage applications?

Yes, it operates effectively at 12V DC, making it appropriate for low-voltage applications.

How does the relay handle high power loads?

It can manage switching currents up to 10A, ensuring reliable performance for high power loads while adhering to safety standards.

Is this relay compatible with all PCB types?

The PCB mount design allows compatibility with various circuit boards

however, confirm that it suits your specific board layout.

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Series	G2R
Terminal Type	Quick Connect
Maximum Switching Voltage AC	440V
Maximum Switching Voltage DC	125V
Maximum Switching Current AC	10 A
Maximum Switching Current DC	10 A
Length	29mm
Coil Resistance	278 Ω
Coil Power	530mW
Height	40.5mm
Standards Met	CE, CSA
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+70°C
Depth	13mm
