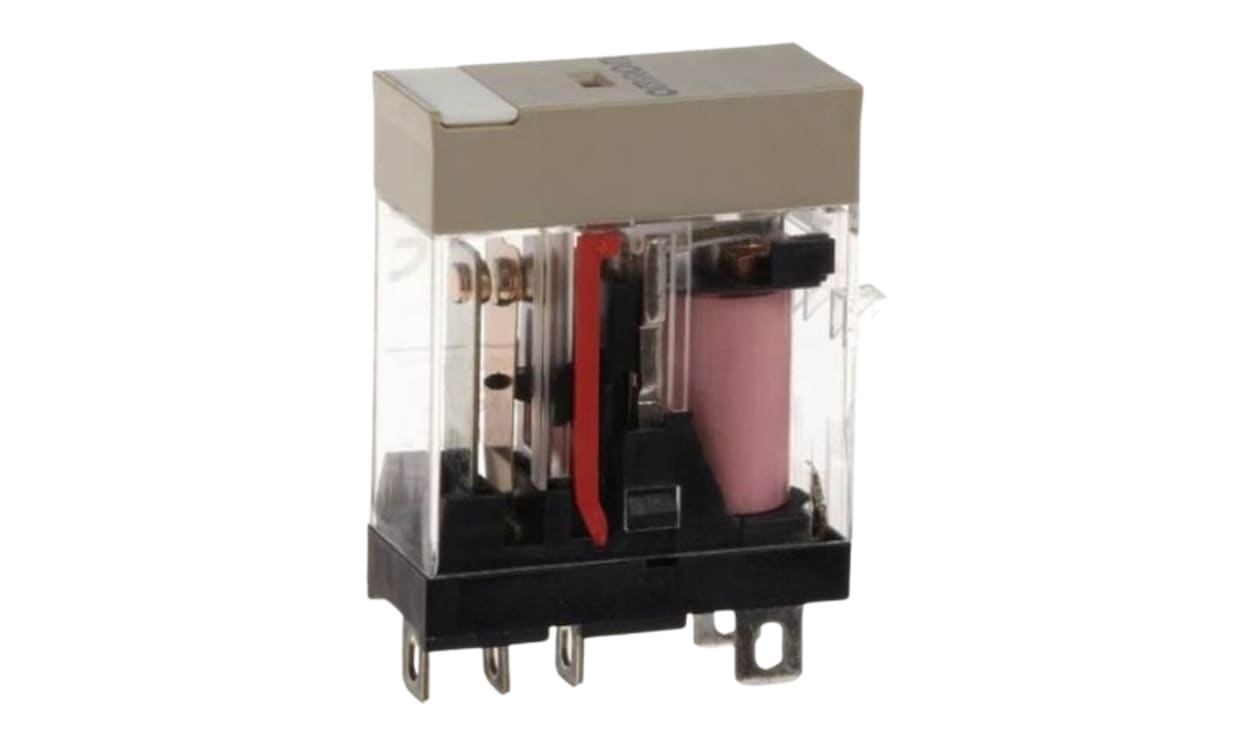

OMRON G2R-1-SNI 240VAC (S) | PCB Mount Non-Latching Relay | 240 V AC Coil, 10 A, SPDT

Name: OMRON G2R-1-SNI 240VAC (S) | PCB Mount Non-Latching Relay | 240 V AC Coil, 10 A, SPDT
Brand: OMRON
SKU: G2R-1-SNI 240VAC (S)
Availability: OutOfStock

Part Number : G2R-1-SNI 240VAC (S)

The OMRON G2R-1-SNI 240VAC (S) is a PCB-mount non-latching relay with a 240 V AC coil and SPDT contacts rated at 10 A switching current.

Coil: 240 V AC, 30360 Ω resistance
Contacts: SPDT, 1 pole
Mounting and type: PCB mount, non-latching
Series: G2R-S

Availability: in stock

Detailed Description
Specifications
Downloads

Omron G2R-S Series Non-Latching Relay, 240V AC Coil Voltage, 10A Switching Current - G2R-1-SNI AC240(S)

This non-latching relay is a versatile component in automation and control systems. As a PCB mount relay, it features a single pole double throw (SPDT) configuration that can handle a coil voltage of 240V AC. The compact design allows for easy integration into various applications, making it an essential choice for professionals in the electrical and mechanical industries.

Features & Benefits

• Built-in mechanical operation indicator for easy monitoring
• Plug-in terminal type simplifies installation processes
• Integrated self-diagnostic function enhances reliability
• Space-saving design reduces wiring work by 60%

Applications

• Utilised in industrial automation systems for secure control
• Ideal for use in lighting and HVAC systems
• Suited for various electrical equipment requiring efficient switching
• Can be implemented in control panels and machinery interfaces

What are the performance characteristics of this relay?

This relay can switch up to 10A at 250V AC and 30V DC, making it suitable for both resistive and inductive loads. It has a maximum switching voltage of 440V AC, ensuring compatibility with high voltage applications.

How does the built-in self-diagnostic function work?

The relay features an AC type coil with an LED indicator that signals coil disconnection and operational status, allowing for quick identification of issues without dismantling the installation.

What environmental conditions can this relay operate under?

It operates efficiently in temperatures ranging from -40°C to +70°C, ensuring reliability even in challenging conditions while maintaining a humidity range of 5% to 85%.

Brand	Omron
Coil Voltage	240V ac
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Series	G2R-S
Coil Resistance	30360 Ω

OMRON G2R-1-SNI 240VAC (S) | PCB Mount Non-Latching Relay | 240 V AC Coil, 10 A, SPDT

DOWNLOAD CATALOG

G2R-1-SNI 240VAC (S) Brochure - Industrial Relay A700000014065575

OMRON G2R-1-SNI 240VAC (S) | PCB Mount Non-Latching Relay | 240 V AC Coil, 10 A, SPDT

Omron G2R-S Series Non-Latching Relay, 240V AC Coil Voltage, 10A Switching Current - G2R-1-SNI AC240(S)

Features & Benefits

Applications

What are the performance characteristics of this relay?

How does the built-in self-diagnostic function work?

What environmental conditions can this relay operate under?

OMRON G2RL-1A DC12 | PCB Power Relay | 12 V DC Coil, 12 A, SPST

OMRON G5NB-1A4 DC24 | PCB Power Relay | 24 V DC Coil, 3 A, SPST

OMRON G5LE-1-36 DC5 | PCB Power Relay | 5 V DC Coil, 10 A, SPDT

OMRON G5NB-1A4-E DC12 | PCB Power Relay | 12 V DC Coil, SPST

OMRON G5RL-1-E AC230/240 | PCB Mount Power Relay | 240 V AC Coil, 16 A, SPDT

OMRON G9EA-1-B-CA DC24 | Flange Mount Power Relay | 24 V DC Coil, SPST, 30 A

OMRON G2RL-2-HA DC5 | PCB Power Relay | 5 V DC Coil, DPDT

OMRON G5RL-1A-E-HR DC5 | PCB Mount Power Relay | 5 V DC Coil, 16 A, SPST

Meet Us F2F

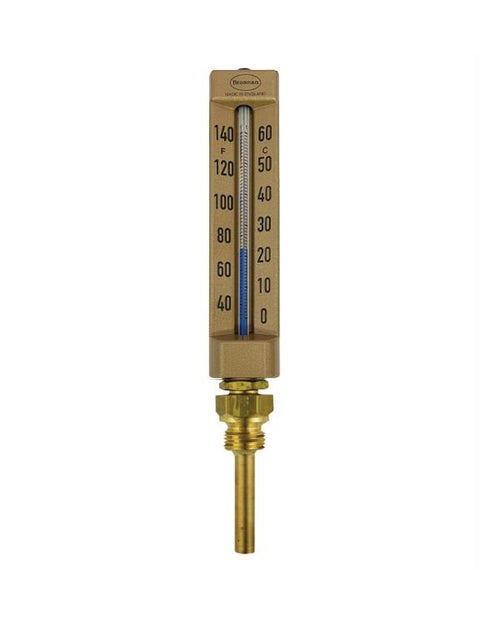

Brannan 81/159/0 | Industrial V-Line Thermometer | Straight, 200 mm, Polypropylene, 0 to +50 °C, 200 mm pocket
