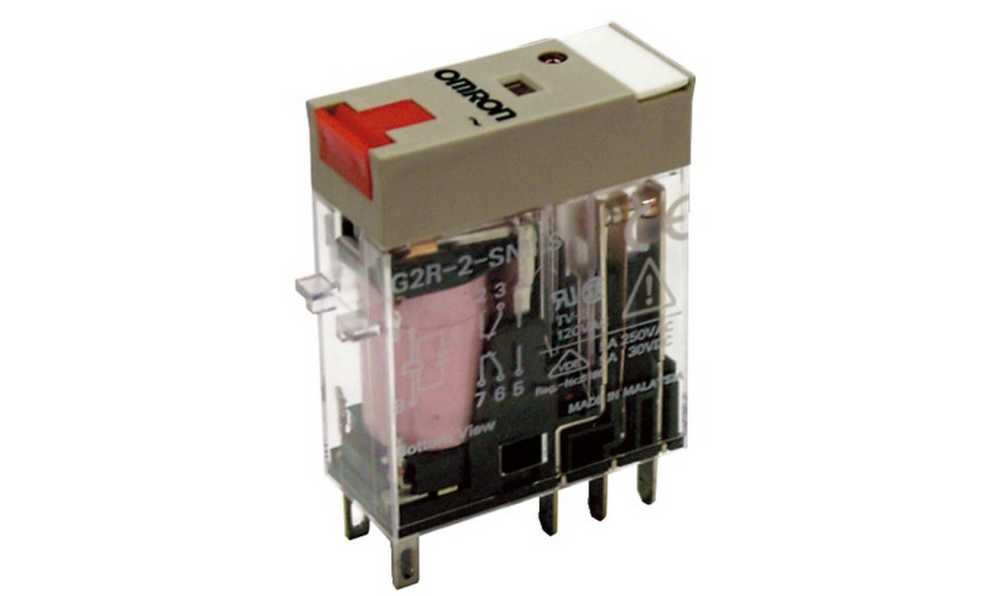

Omron G2R-2-SNI 24VAC (S), Plug In Power Relay, 24V ac Coil, 5A Switching Current, DPDT

Name: Omron G2R-2-SNI 24VAC (S), Plug In Power Relay, 24V ac Coil, 5A Switching Current, DPDT
Brand: OMRON
SKU: G2R-2-SNI 24VAC (S)
Availability: OutOfStock

Part Number : G2R-2-SNI 24VAC (S)

Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, lockable test button, label facility

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Power Relay, LED Indicator, 0.9VA Power Consumption - G2R Series - G2R-2-SNI AC24(S)

Take control of your electrical appliance with this power relay from OMRON. It's an electromagnetic switch that uses a small input to trigger a high-energy circuit to turn on or off. Its contacts have a low resistance of 100mΩ, so you can rest assured of seamless signal transmission. As the connectors are made of silver alloy that holds its own against corrosion and impact, the unit performs reliably in harsh environments. Thanks to innovative plug-in terminals, you don't need complex tools to assemble this piece of kit, saving you time and hassle.

Features & Benefits

• Low power consumption of 0.9VA shows that it's an energy-efficient choice
• LED indicators make it easy to monitor and troubleshoot
• Withstands up to 10 million mechanical operating cycles, so you can be sure of long-term performance
• Response time of 15ms indicates you get quick action when the unit's actuated

Applications

• Measurement and instrumentation devices
• Electrical workshops
• HVAC systems

How much does this power relay weigh?

This unit tips the scales at just 20g, so it won't weigh down your setup.

Brand	Omron
Coil Voltage	24V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	5A
Number of Poles	2
Latching	No
Series	G2R
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	30V dc
Maximum Switching Current DC	5 A
Maximum Switching Current AC	5 A
Length	29mm
Coil Resistance	253Ω
Coil Power	530mW
Standards Met	CE, CSA
Depth	13mm
Isolation Coil To Contact	5kV
Maximum Operating Temperature	+70°C

Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, lockable test button, label facility
