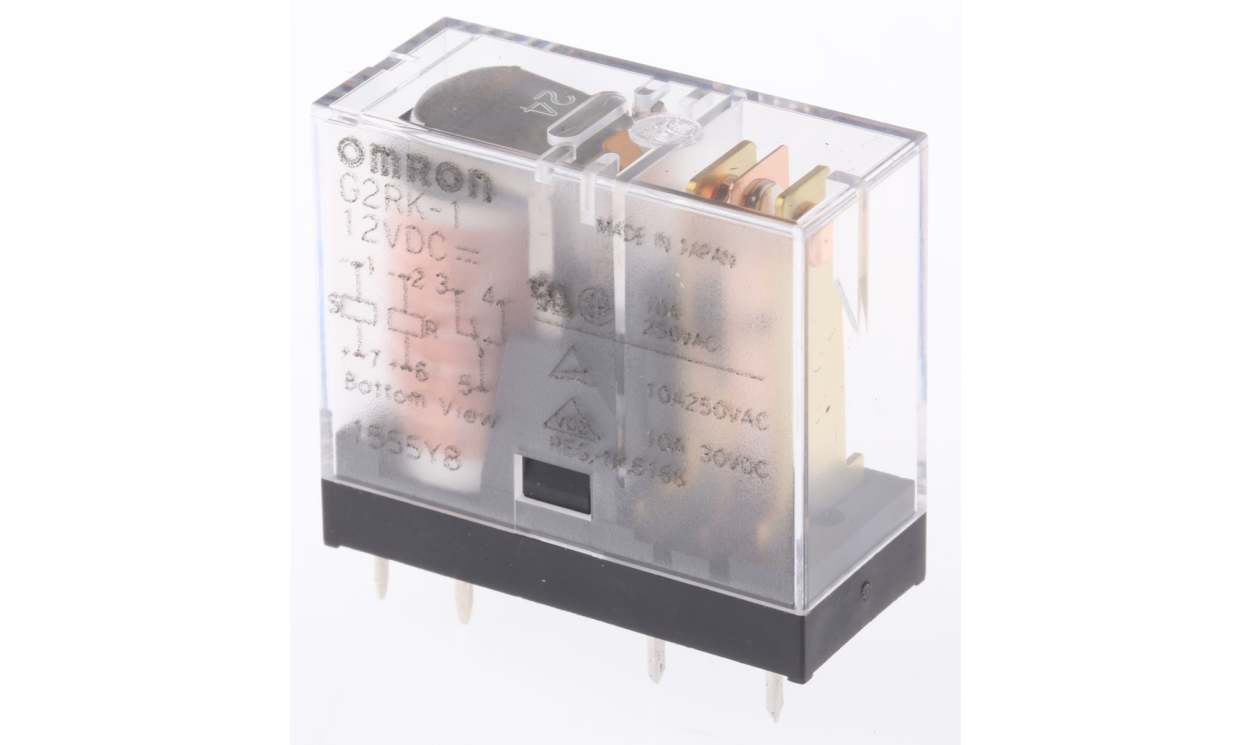

OMRON G2RK-1 DC12 | Latching PCB Power Relay | 12 V DC Coil, 5 A, SPDT

Name: OMRON G2RK-1 DC12 | Latching PCB Power Relay | 12 V DC Coil, 5 A, SPDT
Brand: OMRON
SKU: G2RK-1 DC12
Availability: OutOfStock

Part Number : G2RK-1 DC12

For circuits needing a 12 V DC coil, the OMRON G2RK-1 DC12 provides an SPDT contact set in a PCB-mount power relay format, rated at 5 A. Other listed details: latching operation and maximum switching voltages of 380 V AC and 125 V DC.

Coil resistance: set coil 170 Ω, reset coil 240 Ω
Switching power up to 1.25 kVA (AC) and 150 W (DC)
Silver contacts
Through-hole terminals
Rated for -40 °C to 70 °C ambient
Size 29 x 25.5 x 13 mm

Availability: in stock

Detailed Description
Specifications

G2R Series

General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm

Approvals

UL508; CSA22.2; EN 61810-1; SEV; SEMKO

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	5A
Latching	Yes
Terminal Type	Through Hole
Maximum Switching Voltage AC	380V ac
Maximum Switching Voltage DC	125V dc
Length	29mm
Coil Resistance	170 (Set Coil) Ω, 240 (Reset Coil) Ω
Depth	13mm
Height	25.5mm
Minimum Operating Temperature	-40°C
Contact Material	Silver
Maximum Operating Temperature	+70°C
Maximum Switching Power AC	1.25 kVA
Maximum Switching Power DC	150 W
Application	Power
Dimensions	29 x 25.5 x 13mm
