Name: Omron G2RV-1-S-G DC48, DIN Rail Latching Power Relay, 48V dc Coil, 6A Switching Current, SPDT
Brand: OMRON
SKU: G2RV-1-S-G DC48
Availability: OutOfStock

Omron G2RV-1-S-G DC48, DIN Rail Latching Power Relay, 48V dc Coil, 6A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2RV-1-S-G DC48, DIN Rail Latching Power Relay, 48V dc Coil, 6A Switching Current, SPDT

Part Number : G2RV-1-S-G DC48

Availability: Sold out

Detailed Description
Specifications

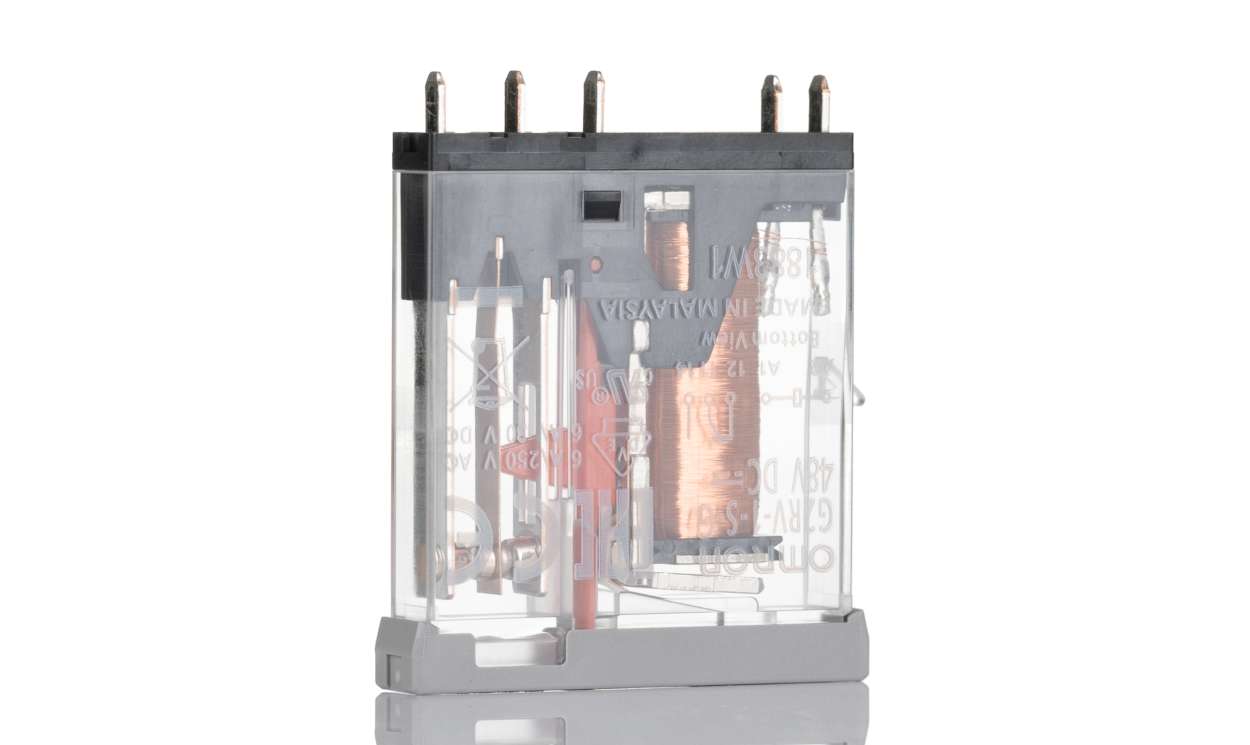

OMRON Power Relay, Transparent Casing, Plug-In Connector - G2RV-SR Series - G2RV-1-S-G DC48

Get your equipment's switching capability up to scratch with this OMRON power relay. It's built for controlling start and stop operations in high-current setups, such as factory machinery, HVAC systems and automotive assembly lines. The silver alloy contacts are durable and resistant to corrosion, ensuring dependable power connections even in tough environments. Simple push-in connectivity slips the product into place so you can speed through maintenance. By handling up to 1,800 cycles an hour, it tackles demanding switching tasks without breaking a sweat.

Features & Benefits

• Works with current up to 6A, so it's ideal for small to medium-sized electrical applications
• Isolated against voltages up to 4kV, so cuts the risk of hardware damage caused by electrical surges
• Super-slim 6.2mm width for efficient rail packing

Applications

• Industrial automation
• Packaging industry
• Process control

Can I use this device in harsh temperatures?

Yes, this relay works in temperatures between -40°C and +55°C, so it's suitable for use in challenging settings.

Why should I use a transparent relay?

A transparent relay like this one clearly shows you its contact position, so it's easy to check the switch status or troubleshoot problems.

Brand	Omron
Coil Voltage	48V dc
Contact Configuration	SPDT
Mounting Type	DIN Rail
Switching Current	6A
Number of Poles	1
Latching	Yes
Series	G2RV-SR
Terminal Type	Plug In
Maximum Switching Voltage AC	440V
Maximum Switching Voltage DC	125V
Maximum Switching Current DC	6 A
Maximum Switching Current AC	6 A
Length	5.2mm
Coil Resistance	0.3Ω
Coil Power	300mW
Maximum Operating Temperature	+55°C
Isolation Coil To Contact	4kV
Depth	30.5mm
Height	33mm
