OMRON G3PE-535B-3N 12-24VDC | Three-Phase Solid State Relay | 35 A, 528 V AC, DIN Rail
OMRON's G3PE-535B-3N 12-24VDC is a G3PE series three-phase solid state relay that handles 35 A at a maximum load voltage of 528 V AC, with DIN rail mounting. Features include a 9.6 to 30 V DC control voltage, zero-cross switching and a phototriac coupler output.
- Maximum load current: 35 A
- Load voltage: 180 to 528 V AC
- Control voltage: 9.6 to 30 V DC
- Contact configuration: 3P-NO
- Output device: Phototriac Coupler
- Dimensions: 80 x 155 x 140 mm
- Detailed Description
- Specifications
- Features
- Downloads

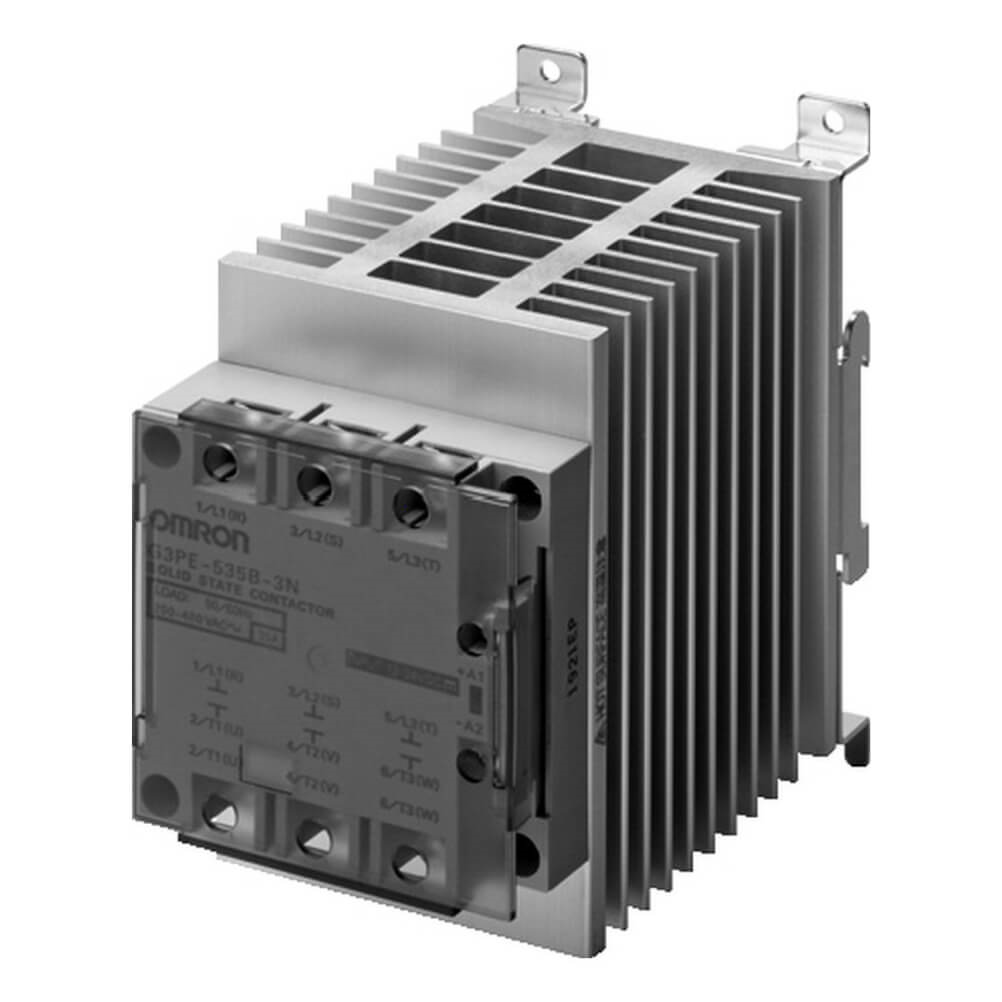

Omron G3PE Three Phase Series Solid State Relay, 35A Maximum Load Current, DIN Rail Mounting - G3PE-535B-3N DC12-24
Features & Benefits
• Efficiently manages maximum load currents of 35A
• Compact design for straightforward DIN rail mounting
• Rated for high voltage applications up to 528V AC
• Operates within a broad control voltage range of 9.6 to 30V DC
• Incorporates a phototriac coupler for dependable operation
Applications
• Suitable for automation processes that require precise current switching
• Applicable in motor control systems for both forward and reverse operations
• Ideal for thermal regulation in manufacturing
• Employed in various AC electrical distribution systems
What is the typical ambient temperature range for operation?
How does it improve energy efficiency in control systems?
Can it be used with both AC and DC control voltages?
What type of mounting options are provided?
Is it suitable for use with inductive loads?
Standards
| Brand | Omron |
| Series | G3PE Three Phase |
| Maximum Load Voltage | 528 V ac |
| Maximum Load Current | 35 A |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 180 V ac |
| Contact Configuration | 3P-NO |
| Output Device | Phototriac Coupler |
| Minimum Load Current | 0.5 A |
| Switching Type | Zero Cross |
| Terminal Type | Screw |
| Load Voltage Range | 180 → 528V ac |
| Dimensions | 80 x 155 x 140 mm (3.15×6.10×5.51 in) |
| Maximum Control Voltage | 30 V dc |
| Control Voltage Range | 9.6 → 30 V dc |
| Length | 80 mm (3.15 in) |
| Depth | 155 mm (6.10 in) |
| Minimum Control Voltage | 9.6 V dc |
| Maximum Turn On Time | 1/2 cycle + 1 ms |
| Off State Leakage Current | 20 mA |
Solid state relay, 3-pole, DIN-track mounting, 35 A, 528 VAC max
