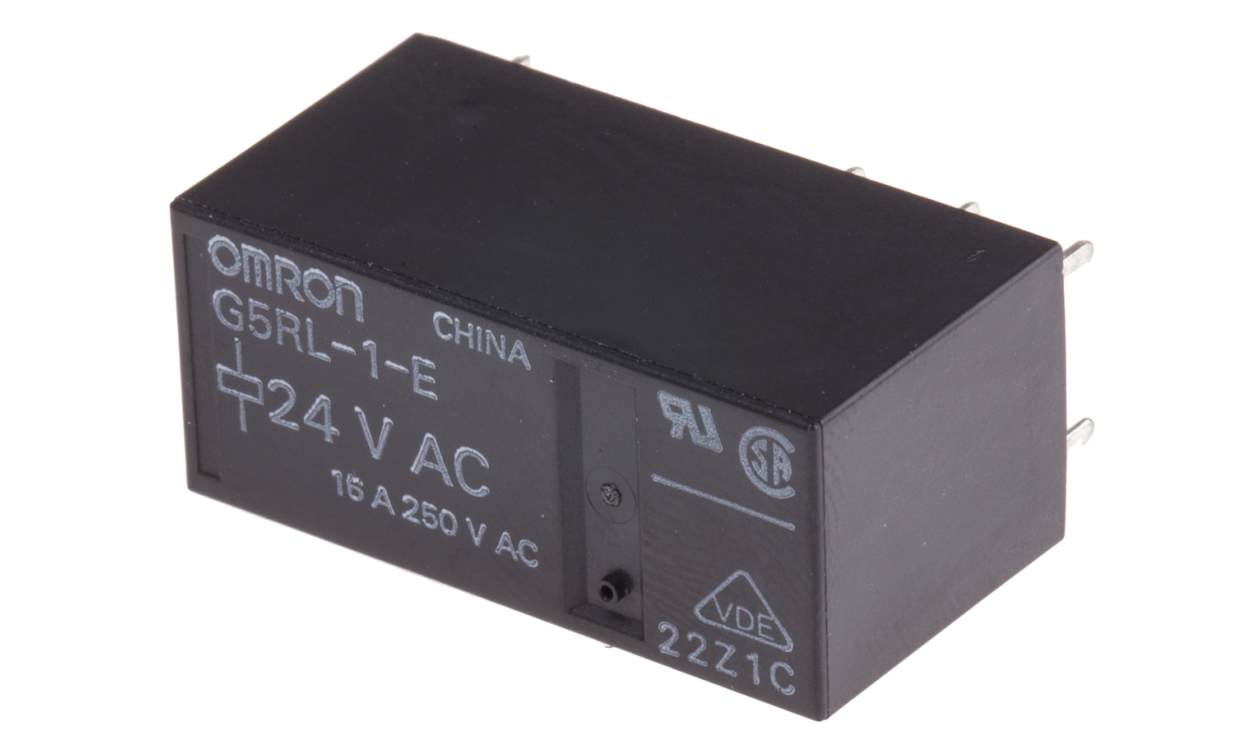

OMRON G5RL-1-E AC24 | PCB Mount Power Relay | 24 V AC Coil, 16 A, SPDT
Part Number : G5RL-1-E AC24
OMRON G5RL-1-E AC24 pairs a 24 V AC coil with SPDT contacts carrying 16 A in a PCB-mount non-latching power relay format. Here, the coil draws 750 mW and measures 443 Ω, and contacts handle up to 250 V AC or 24 V DC.
- SPDT contact configuration, 1 pole
- Dimensions (L x D x H): 29 x 12.7 x 15.7 mm
- Terminal type: through hole
- OMRON G5RL series
- Coil-to-contact isolation: 6 kV AC
- Contact material: silver alloy
For pricing, please contact our experts.
G5RL Series
Low noise "Silent" operation versions - almost inaudible, 44dB @ 15cm
High inrush versions - inrush peak currents up to 100A
AC versions - 24, 120 & 240Vac coils
Flux proof
8mm creepage/clearance between coil and contacts
Low profile: 15.7mm max height
High inrush versions - inrush peak currents up to 100A
AC versions - 24, 120 & 240Vac coils
Flux proof
8mm creepage/clearance between coil and contacts
Low profile: 15.7mm max height
Note
Operating temperature range -40 to 85°C (DC coil), -40 to 70°C (AC coil)
Approvals
UL, CSA, VDE
