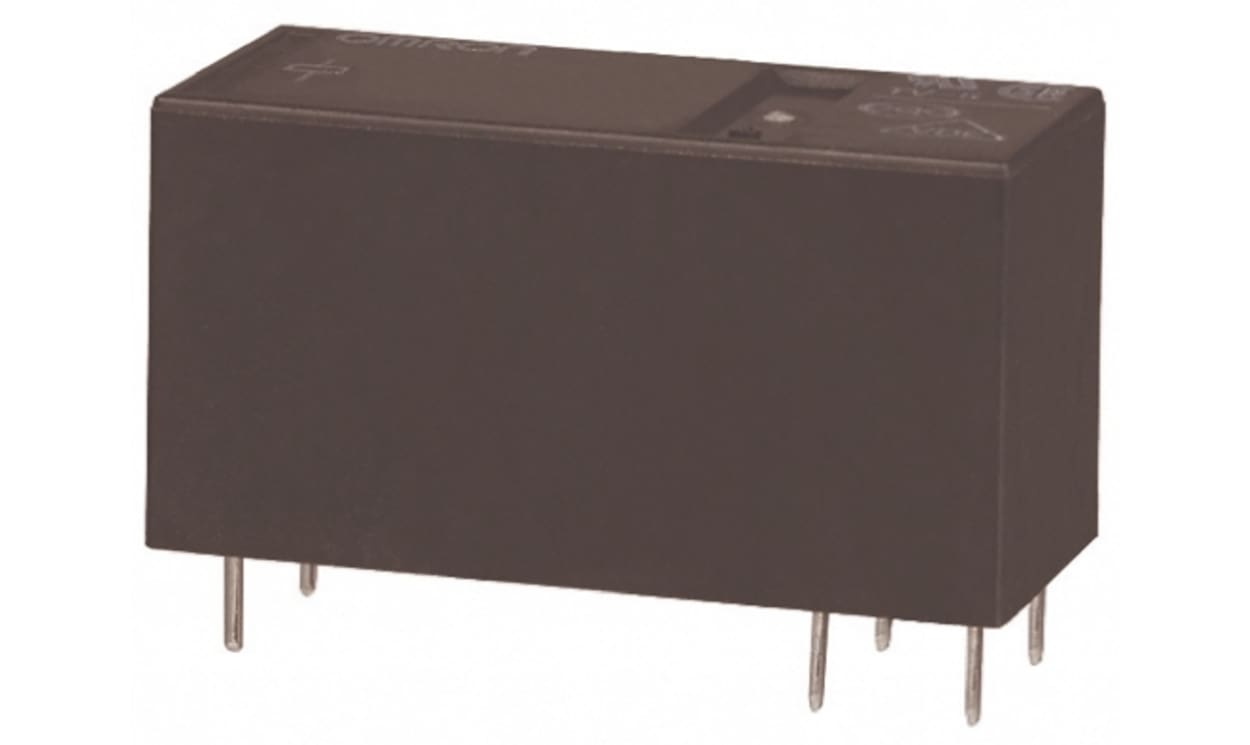

OMRON G5RL-U1A-E DC24 | G5RL Latching Power Relay | 24 V DC Coil, SPST, 16 A, PCB
Part Number : G5RL-U1A-E DC24
Unlike standard types, the OMRON G5RL-U1A-E DC24 is a latching power relay: its SPST contact holds position after the 24 V DC coil pulse. It switches 16 A at up to 250 V AC or 24 V DC and has a 5,000,000-operation life.
- Latching, 24 V DC coil, 600 mW
- SPST, 16 A
- Up to 250 V AC / 24 V DC
- 6 kV AC coil-to-contact isolation
- 5,000,000 operations life
- 29 x 12.7 x 15.7 mm, -40 to +85 °C
For pricing, please contact our experts.
G5RL Latching
Flux proof
8mm creepage/clearance between coil and contacts
Low profile: 15.7mm max height
8mm creepage/clearance between coil and contacts
Low profile: 15.7mm max height
Approvals
UL, CSA, VDE
