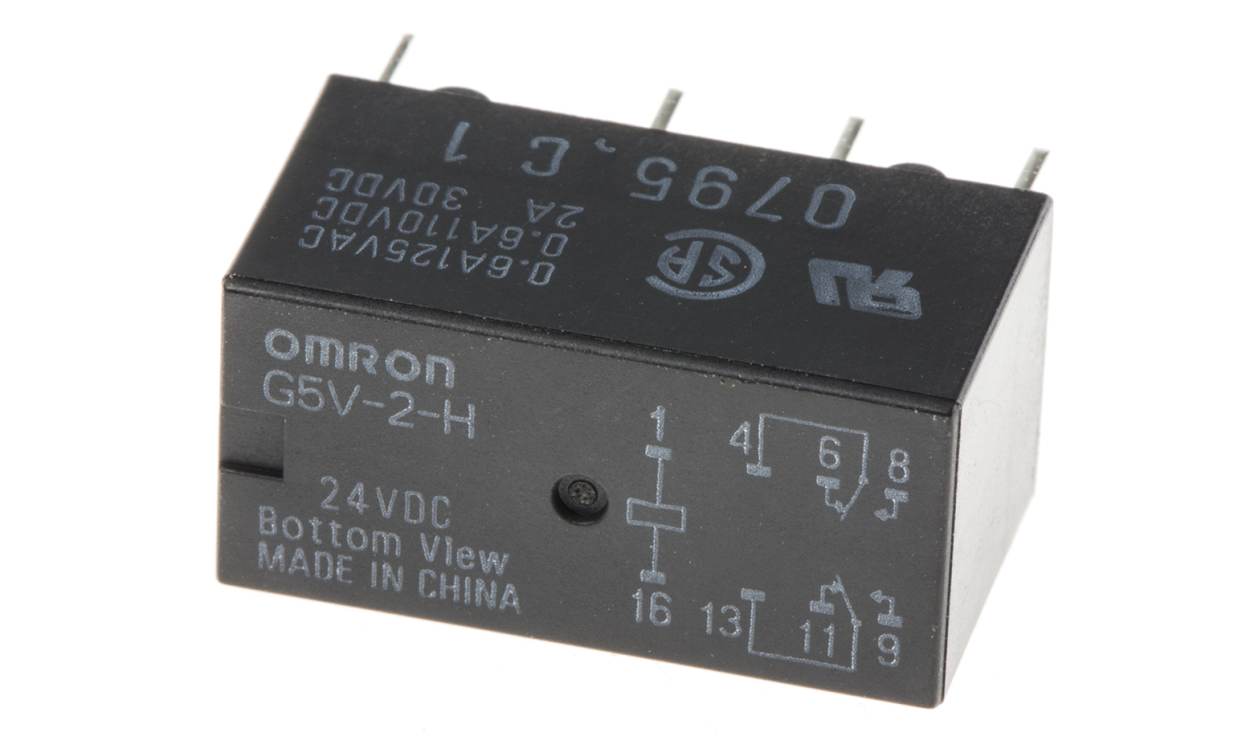

Name: Omron G5V-2-H DC24, PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT
Brand: OMRON
SKU: G5V-2-H DC24
Availability: OutOfStock

Omron G5V-2-H DC24, PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G5V-2-H DC24, PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT

Part Number : G5V-2-H DC24

Availability: Sold out

Detailed Description
Specifications
Downloads

G5V-2-H Series

Miniature PCB relays with high-sensitivity coil for signal circuits
H1 types are ultra high sensitivity
Fully sealed
Conform to FCC Part 68 requirements

Approvals

UL, CSA

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	PCB Mount
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V
Maximum Switching Voltage DC	125V
Maximum Switching Power DC	24 W
Series	TSC
Length	20.5mm
Latching	No
Depth	10mm
Height	9.9mm
Dimensions	20.5 x 10 x 11.5mm
Terminal Type	Through Hole
Switching Current	1A
Application	Telecommunications
Number of Poles	2
Life	100000 Operations
Maximum Switching Power AC	62.5VA

Omron G5V-2-H DC24, PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT

DOWNLOAD CATALOG

Omron G5V-2-H DC24, PCB Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT

G5V-2-H Series

Approvals
