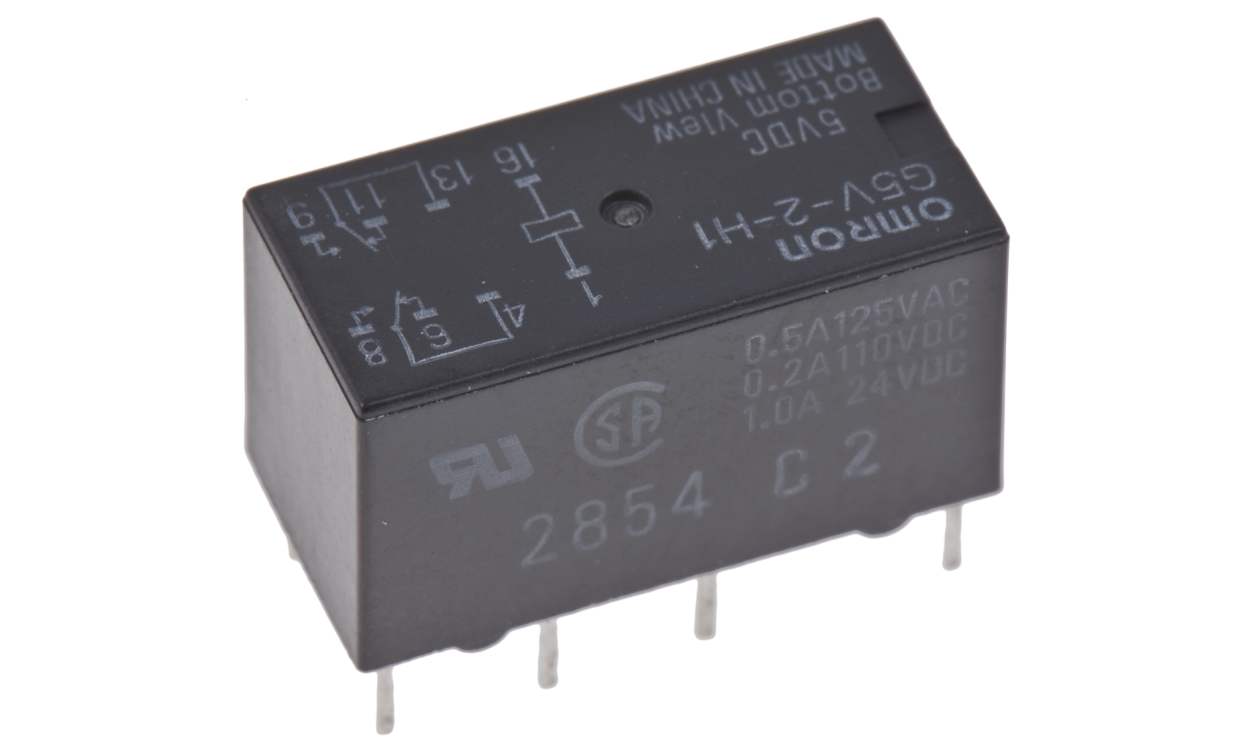

OMRON G5V-2-H1 DC5 | Signal Relay | 5 V DC Coil, DPDT, 1 A, PCB Mount
Built around a 5 V DC coil, the OMRON G5V-2-H1 DC5 is a non-latching PCB-mount signal relay with DPDT contacts and 1 A switching current. Ratings for the G5V-2-H1 DC5 include a maximum switching voltage of 125 V AC / 125 V DC and switching power up to 24 W DC.
- Terminals: through hole
- Max switching current: 1 A DC
- Coil-to-contact isolation: 1 kV rms
- Life: 100,000 operations (electrical)
- Listed application: telecommunications
- Number of poles: 2
- Detailed Description
- Specifications
- Downloads
G5V-2-H Series
H1 types are ultra high sensitivity
Fully sealed
Conform to FCC Part 68 requirements
Approvals
| Brand | Omron |
| Series | W11 |
| Coil Voltage | 5V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 1A |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Voltage AC | 125V |
| Maximum Switching Voltage DC | 125V |
| Maximum Switching Power DC | 24 W |
| Length | 20.5 mm (0.807 in) |
| Latching | No |
| Depth | 10.5 mm (0.413 in) |
| Height | 11.5 mm (0.453 in) |
| Dimensions | 20.5 x 10 x 11.5 mm (0.807×0.394×0.453 in) |
| Terminal Type | Through Hole |
| Number of Poles | 2 |
| Application | Telecommunications |
| Isolation Coil To Contact | 1kV rms |
| Electrical Life | 10^5 Operations |
