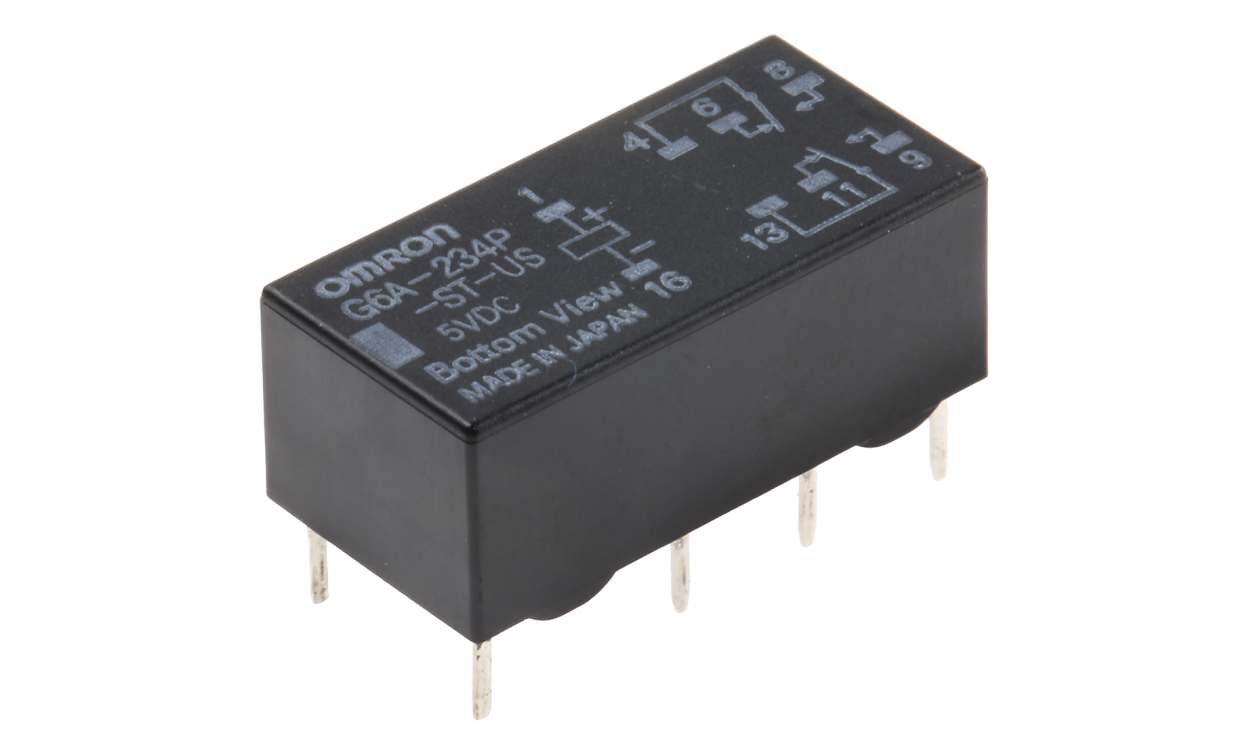

OMRON G6A-234P-ST-US DC5 | Signal Relay | 5 V DC Coil, DPDT, 2 A, PCB Mount
This DPDT G6A series signal relay, the OMRON G6A-234P-ST-US DC5, is driven by a 5 V DC coil and handles 2 A in a PCB-mount format. The G6A-234P-ST-US DC5 (5 V DC version) has a maximum switching voltage of 250 V AC / 220 V DC and switching power up to 60 W DC / 62.5 VA AC. Its 5 V DC coil has a power of 140 mW and a resistance of 1029 Ω.
- Terminals: PCB pin
- Minimum operating temperature: -40 °C
- Contact material: PdRu
- Listed application: power
- Number of poles: 2
- Detailed Description
- Specifications
- Downloads
G6A Series DPCO
Low magnetic leakage
Impulse withstand voltage of 1500V
Ideal for telecommunications equipment
Approvals

| Brand | Omron |
| Series | G6A |
| Coil Voltage | 5V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Maximum Switching Power DC | 60 W |
| Length | 10 mm (0.394 in) |
| Depth | 6 mm (0.236 in) |
| Height | 5.65 mm (0.222 in) |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Application | Power |
| Coil Resistance | 1029Ω |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Coil Power | 140mW |
| Contact Material | PdRu |
| Maximum Switching Power AC | 62.5VA |
