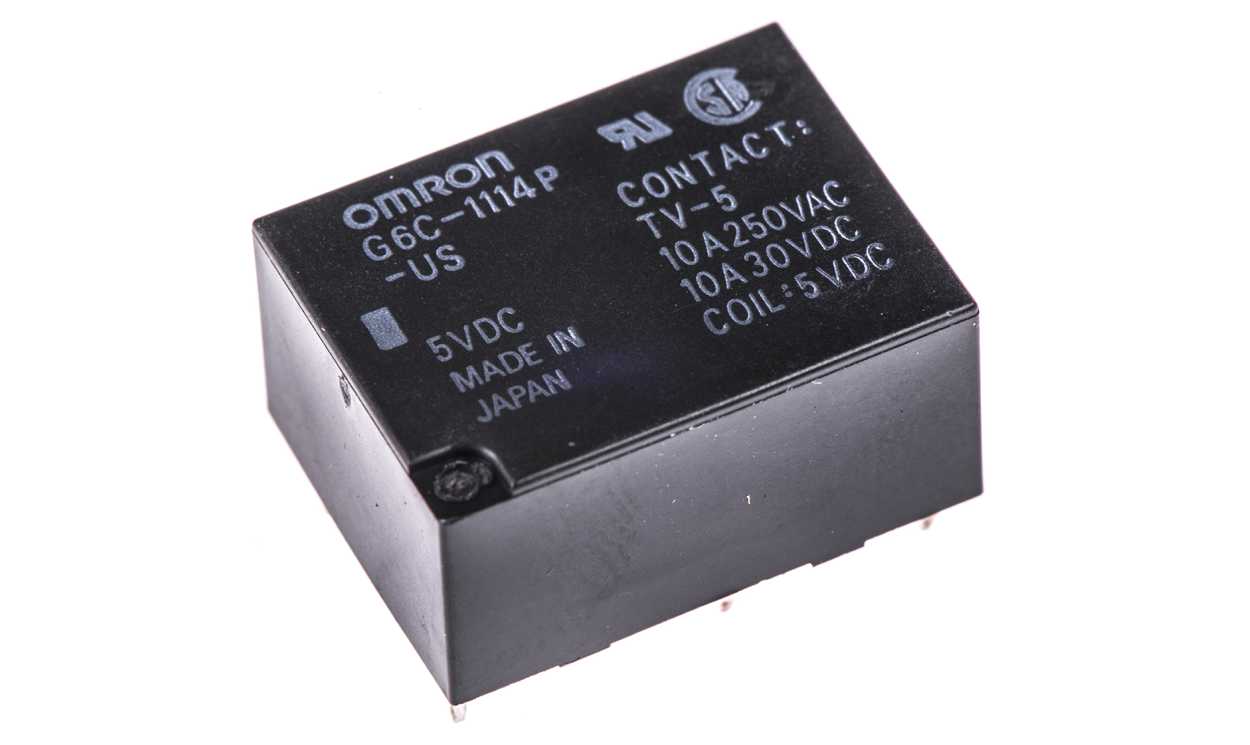

Omron G6C-1114P-US 5DC, PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPST

Name: Omron G6C-1114P-US 5DC, PCB Mount Power Relay, 5V dc Coil, 10A Switching Current, SPST
Brand: OMRON
SKU: G6C-1114P-US 5DC
Availability: OutOfStock

Part Number : G6C-1114P-US 5DC

Availability: Sold out

Detailed Description
Specifications
Downloads

G6C Series

Low power consumption, 200mW
Flux protection or fully sealed types available
Compact size, L20xW15xH10 mm

Approvals

UL, CSA (SEV for those with SV within the Manufacturer part number)

Brand	Omron
Coil Voltage	5V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Series	G6C
Latching	No
Terminal Type	Through Hole
Length	20mm
Coil Resistance	125Ω
Contact Material	Silver
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-25°C
Depth	15mm
Height	10mm
Maximum Switching Power AC	2.5 kVA
Maximum Switching Power DC	300 W
Application	Power
