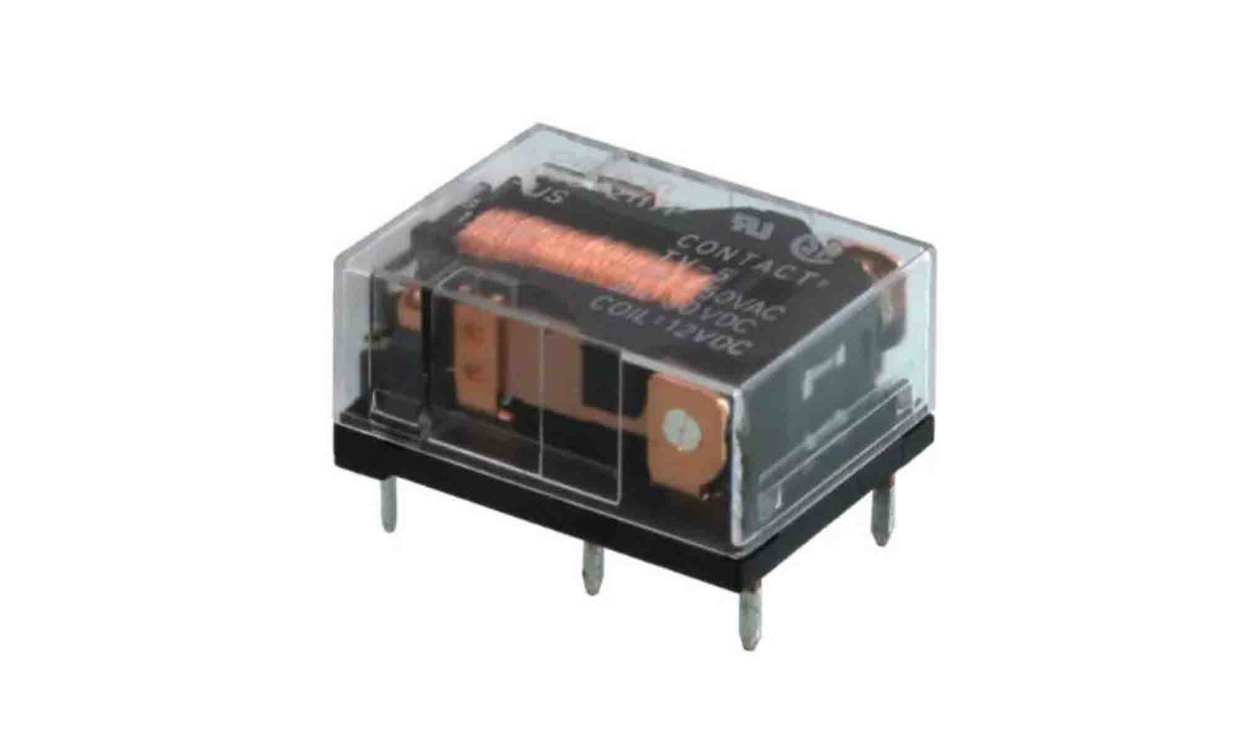

OMRON G6CU-2117P-US DC3 | PCB Mount Latching Power Relay | 3 V DC Coil, 8 A, SPST

Name: OMRON G6CU-2117P-US DC3 | PCB Mount Latching Power Relay | 3 V DC Coil, 8 A, SPST
Brand: OMRON
SKU: G6CU-2117P-US DC3
Availability: OutOfStock

Part Number : G6CU-2117P-US DC3

This 3 V DC version of the OMRON G6CU-2117P-US DC3 is a PCB-mount latching power relay offering SPST contacts and 8 A switching current.

SPST contact configuration
Max switching current: 8 A AC / 10 A DC
Coil voltage: 3 V DC

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron Electronic Components miniature high capacity relays with SPST-NO 10A and SPST-NO + SPST-NC 8A for power switching and output that satisfy the needs for space-saving.

200mW low power consumption
Small high capacity relays compact
5% to 85% ambient operating humidity
-25°C to 70°C ambient operating temperature

Brand	Omron
Coil Voltage	3V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	8A
Latching	Yes
Maximum Switching Current AC	8 A
Maximum Switching Current DC	10 A
