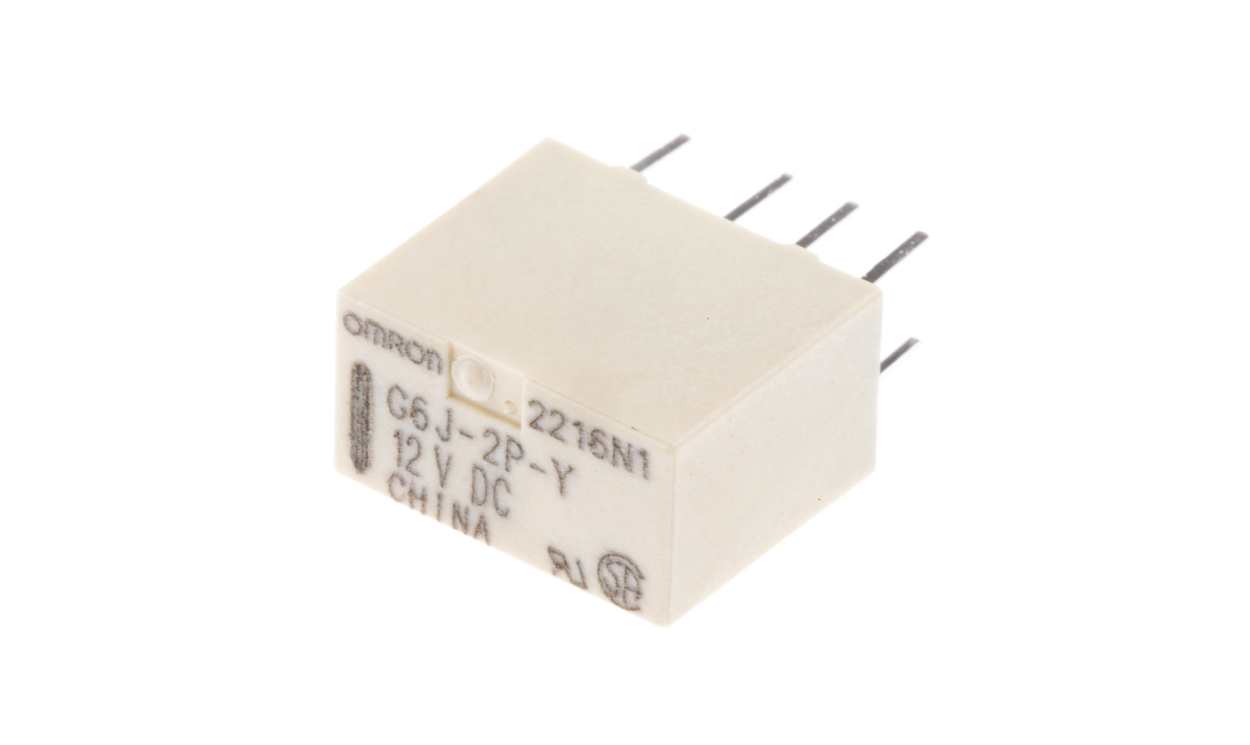

OMRON G6J-2P-Y DC12 | Signal Relay | 12 V DC Coil, DPDT, 1 A, PCB Mount
Built around a 12 V DC coil, the OMRON G6J-2P-Y DC12 is a non-latching PCB-mount G6J series signal relay with DPDT contacts and 1 A switching current. Ratings for the G6J-2P-Y DC12 include a maximum switching voltage of 125 V AC / 110 V DC and switching power up to 30 W DC.
- Dimensions: 10.6 x 9 x 5.7 mm
- Terminals: PCB pin
- Max switching current: 1 A DC
- Minimum operating temperature: -40 °C
- Number of poles: 2
- Non-latching type
- Detailed Description
- Specifications
- Downloads
Omron G6J Series
Fully sealed
Conforms to North American Telcordia specifications (formerly Bellcore)
Conforms to FCC Part 68 (i.e. impulse withstand voltage of 1500V for 10x160μs between coil and contacts and between contacts of the same polarity)
Approvals

| Brand | Omron |
| Series | G6J |
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 1A |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Voltage AC | 125V ac |
| Maximum Switching Voltage DC | 110V dc |
| Maximum Switching Power DC | 30 W |
| Length | 10.6 mm (0.417 in) |
| Latching | No |
| Depth | 5.7 mm (0.224 in) |
| Height | 9 mm (0.354 in) |
| Dimensions | 10.6 x 9 x 5.7 mm (0.417×0.354×0.224 in) |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Application | Compact |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Features | Conforms to FCC Part Requirements, Bifurcated Contacts, Improved Product For Soldering Heat Resistance |
