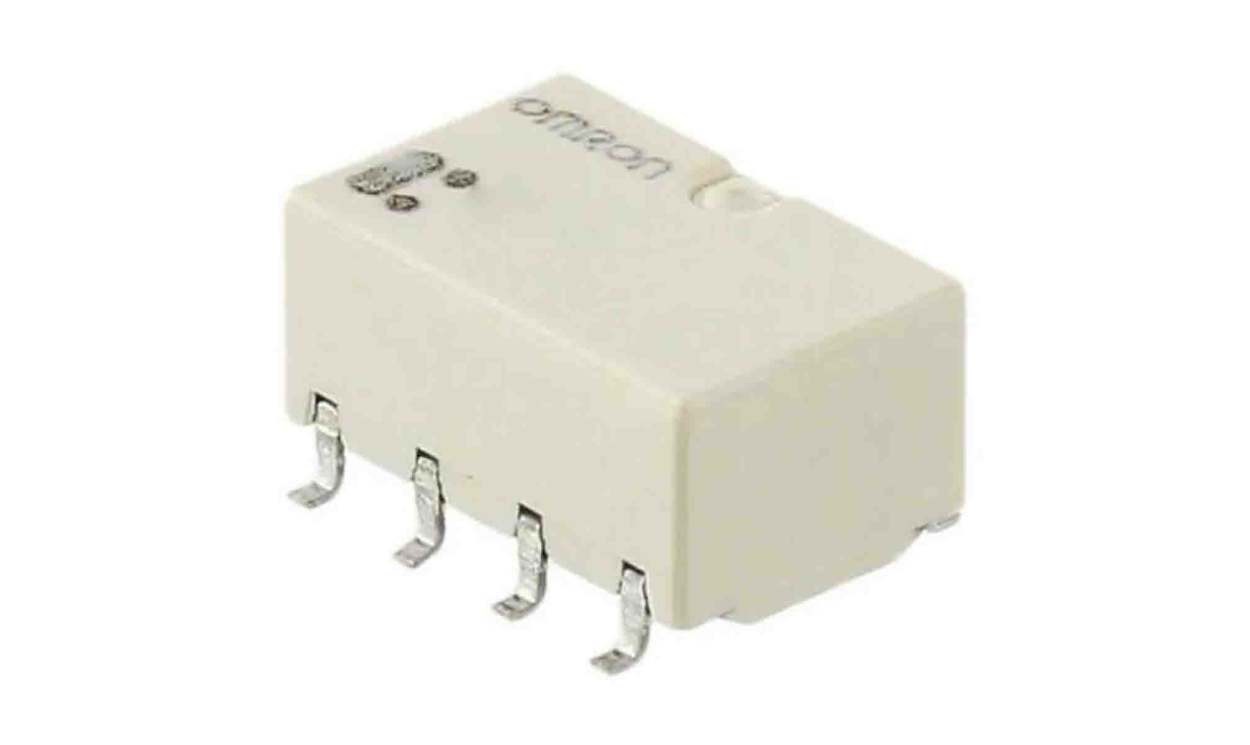

OMRON G6K-2F-Y-TR DC24 | Signal Relay | 24 V DC Coil, DPDT, 1 A, Surface Mount
The OMRON G6K-2F-Y-TR DC24 is a surface-mount non-latching G6K series signal relay with a 24 V DC coil and DPDT contacts rated for 1 A switching current. Contacts on the G6K-2F-Y-TR DC24 carry a maximum switching voltage of 125 V AC / 60 V DC and switching power up to 30 W DC.
- Dimensions: 10 x 6.5 x 5.2 mm
- Terminals: surface mount
- Max switching current: 1 A DC
- Coil-to-contact isolation: 1.8 kV rms
- Maximum operating temperature: +70 °C
- Contact material: gold-plated
- Detailed Description
- Specifications
- Downloads
-40°C to +70°C operating temperature
100mO maximum contact resistance
| Brand | Omron |
| Series | G6K |
| Coil Voltage | 24V dc |
| Contact Configuration | DPDT |
| Mounting Type | Surface Mount |
| Switching Current | 1A |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Voltage AC | 125V ac |
| Maximum Switching Voltage DC | 60V dc |
| Maximum Switching Power DC | 30 W |
| Length | 10 mm (0.394 in) |
| Latching | No |
| Depth | 6.5 mm (0.256 in) |
| Height | 5.2 mm (0.205 in) |
| Dimensions | 10 x 6.5 x 5.2 mm (0.394×0.256×0.205 in) |
| Terminal Type | Surface Mount |
| Number of Poles | 2 |
| Isolation Coil To Contact | 1.8kV rms |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Contact Material | Gold Plated |
