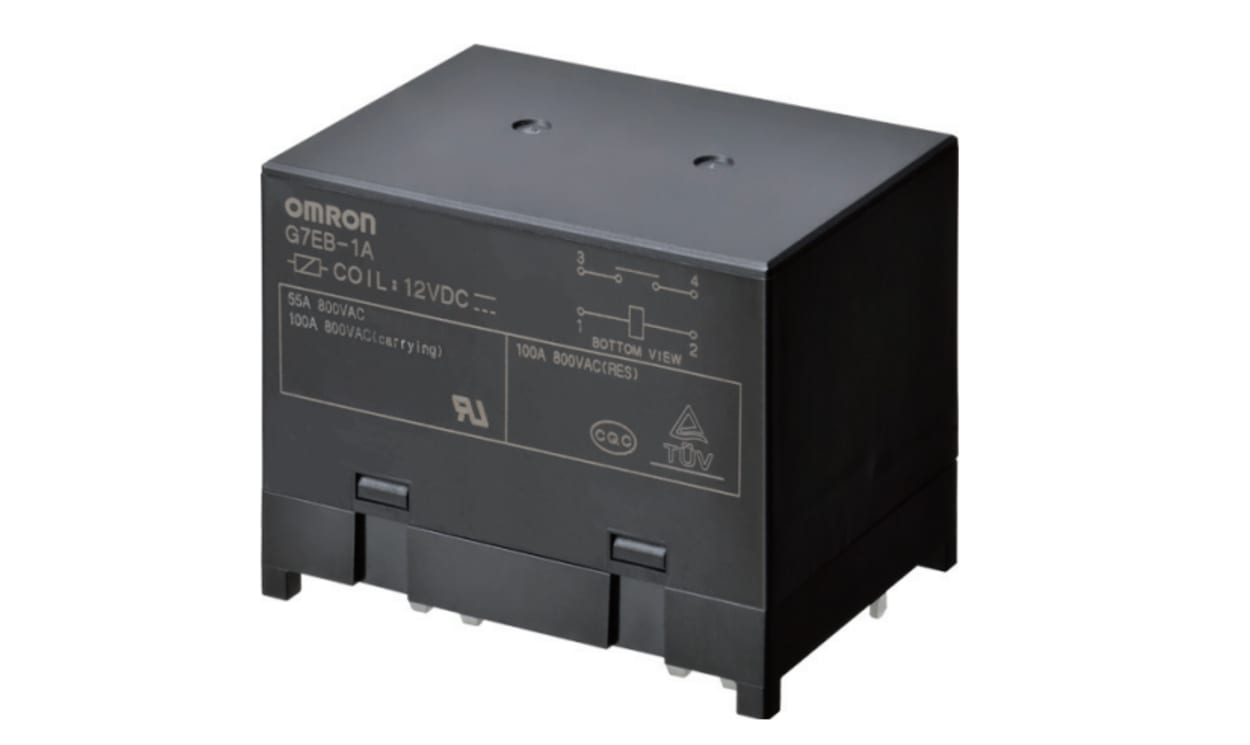

OMRON G7EB-1AP1 DC12 | PCB Mount Power Relay | 12 V DC Coil, SPST, 100 A

Name: OMRON G7EB-1AP1 DC12 | PCB Mount Power Relay | 12 V DC Coil, SPST, 100 A
Brand: OMRON
SKU: G7EB-1AP1 DC12
Availability: OutOfStock

Part Number : G7EB-1AP1 DC12

With a 12 V DC coil, the OMRON G7EB-1AP1 DC12 power relay switches 100 A through SPST contacts. As a G7EB-series relay, the G7EB-1AP1 DC12 uses PCB mounting.

10 kV isolation between coil and contacts
Single coil
Coil: 2.8 W power, 51 Ω resistance

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron G7EB series high power and high temperature type power relay with 480 VAC and 100 A switching current. Used for power conditioner inverter and industrial inverter.

480 VAC/100 A high current switching
60 VDC/100 A for normal/reverse direction switching
Ambient temperature 85°C
High impulse withstand voltage, 10 kV
Contact gap ≥3.6 mm (Applied to VDE0126)
Low initial contact resistance ≤5 mΩ

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	100A
Number of Poles	1
Series	G7EB
Coil Resistance	51 Ω
Coil Power	2.8W
Isolation Coil To Contact	10kV
Number of Coils	Single
