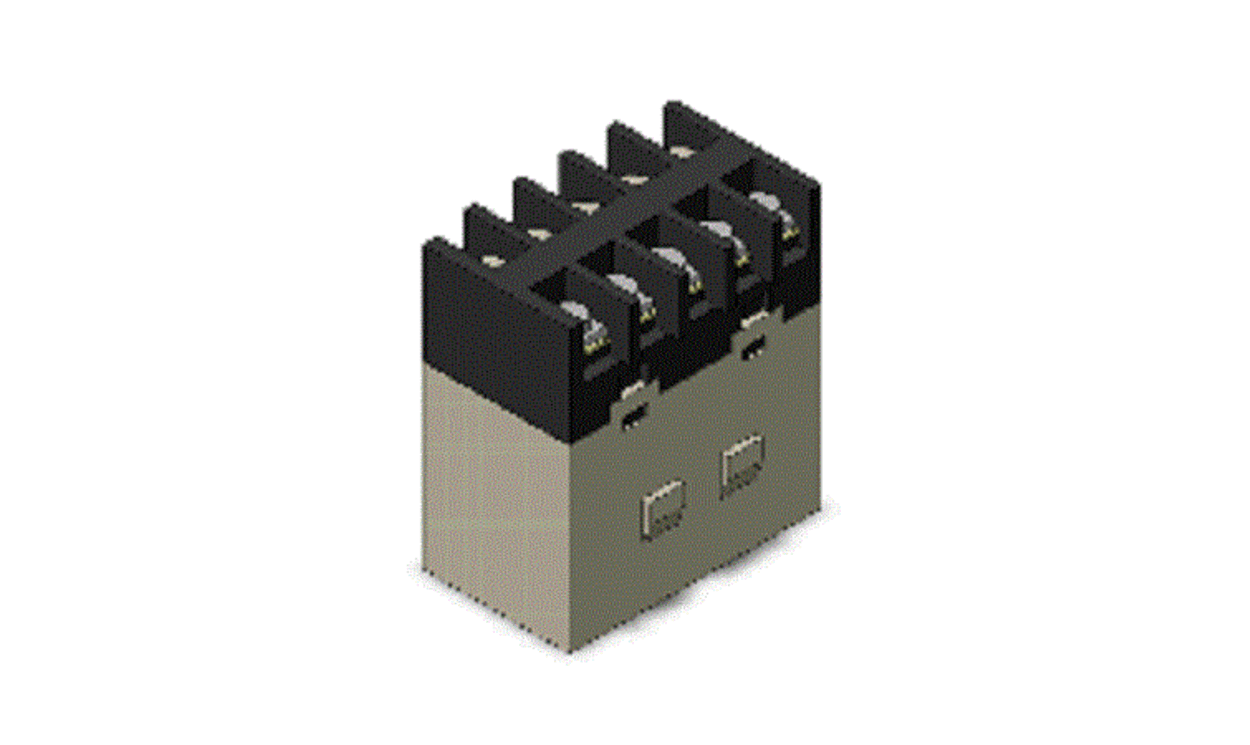

OMRON G7J-2A2B-B 24VDC | Panel Mount Power Relay | 24 V DC Coil, DPST-NO + DPST-NC, 25 A

Name: OMRON G7J-2A2B-B 24VDC | Panel Mount Power Relay | 24 V DC Coil, DPST-NO + DPST-NC, 25 A
Brand: OMRON
SKU: G7J-2A2B-B 24VDC
Availability: OutOfStock

Part Number : G7J-2A2B-B 24VDC

Rated for 25 A switching current, the OMRON G7J-2A2B-B 24VDC is a DPST-NO + DPST-NC power relay driven by a 24 V DC coil. The G7J-2A2B-B 24VDC is a non-latching relay for panel mounting.

Coil voltage: 24 V DC
Contact configuration: DPST-NO + DPST-NC (2 poles)
Switching current: 25 A

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron power relay is a high-capacity, high-dielectric-strength, multi-pole relay used like a contactor. It has miniature hinge for maximum switching power for motor loads as well as resistive and inductive loads. No contact chattering for momentary voltage drops up to 50% of rated voltage.

Withstanding more than 4 kV between contacts that are different in polarity and between the coil and contacts
Flame-resistant materials used for all insulation material
