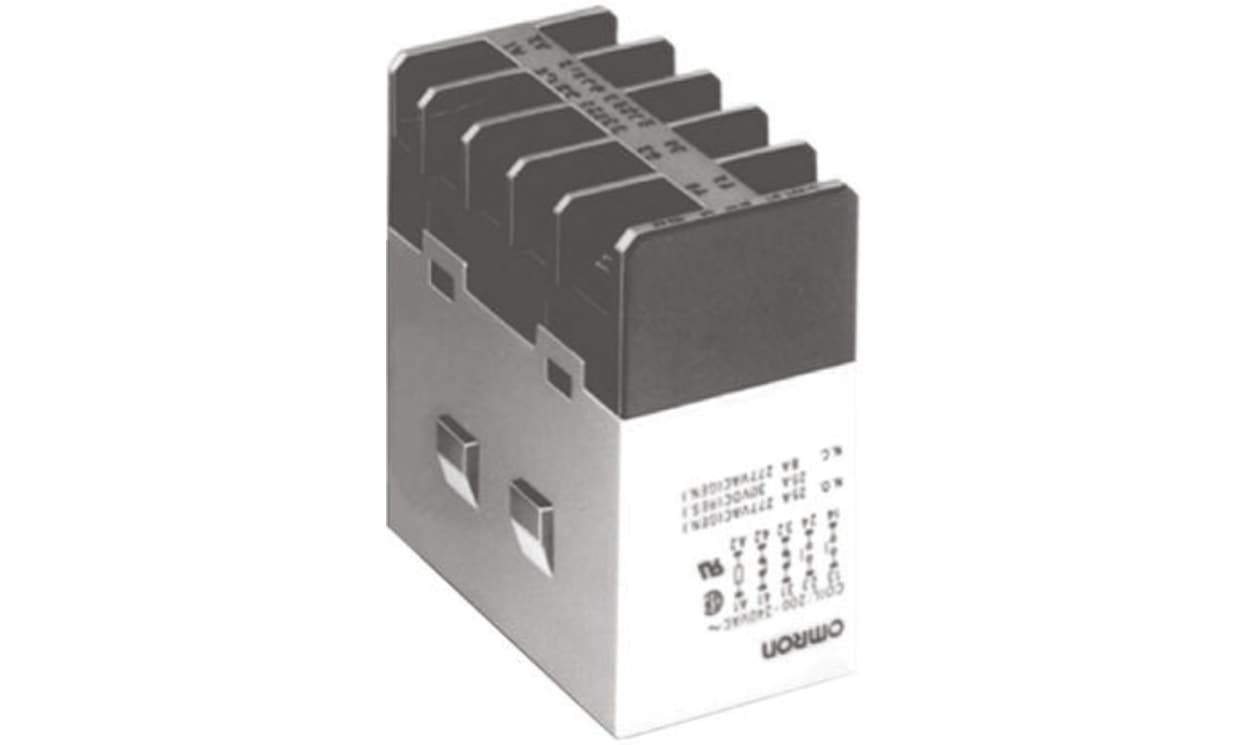

OMRON G7J-4A-B AC200/240 | Panel Mount Power Relay | 240 V AC Coil, 4PST-NO, 25 A

Name: OMRON G7J-4A-B AC200/240 | Panel Mount Power Relay | 240 V AC Coil, 4PST-NO, 25 A
Brand: OMRON
SKU: G7J-4A-B AC200/240
Availability: OutOfStock

Part Number : G7J-4A-B AC200/240

Rated for 25 A switching current, the OMRON G7J-4A-B AC200/240 is a 4PST-NO power relay driven by a 240 V AC coil. The G7J-4A-B AC200/240 belongs to the G7J series (non-latching) and comes with panel mounting and screw terminals.

Contact material: silver
Dimensions: length 51.5 mm, depth 34.5 mm, height 64 mm
Application category: general purpose
Maximum switching power: 5.5 kVA (AC) / 750 W (DC)
Operating temperature: −25 °C to +60 °C

Availability: in stock

Detailed Description
Specifications
Downloads

PCB Mounting & Screw Terminal - Power Relays - G7J Series

High capacity, high dielectric strength, multi-pole relays ideal for 3-phase motor control applications and resistive loads
No contact chattering for momentary voltage drops up to 50% of rated voltage
Withstands more than 4kV between contacts that are of different polarity and between the coil and contacts
Flame-resistant material (UL94V-0)
Push-to-test button lets user check contact operation
PCB mounted, screw terminal or quick connect types available

Approvals

UL; CSA

Brand	Omron
Coil Voltage	240V ac
Contact Configuration	4PST-NO
Mounting Type	Panel Mount
Switching Current	25A
Number of Poles	4
Series	G7J
Latching	No
Terminal Type	Screw
Length	51.5mm
Contact Material	Silver
Depth	34.5mm
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
Height	64mm
Maximum Switching Power AC	5.5 kVA
Maximum Switching Power DC	750 W
Application	General Purpose
