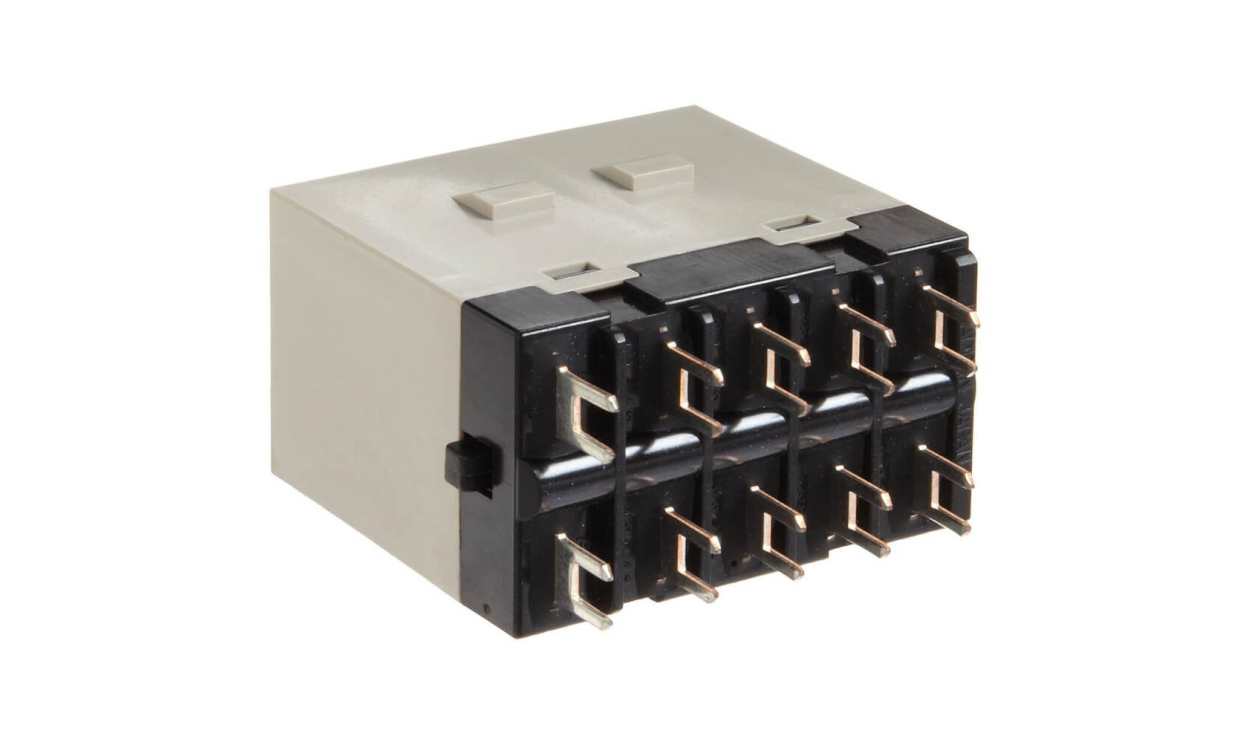

Name: Omron G7J-4A-P 24VDC, PCB Mount Power Relay, 24V dc Coil, 25A Switching Current, 4PST-NO
Brand: OMRON
SKU: G7J-4A-P 24VDC
Availability: OutOfStock

Omron G7J-4A-P 24VDC, PCB Mount Power Relay, 24V dc Coil, 25A Switching Current, 4PST-NO

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G7J-4A-P 24VDC, PCB Mount Power Relay, 24V dc Coil, 25A Switching Current, 4PST-NO

Part Number : G7J-4A-P 24VDC

Availability: Sold out

Detailed Description
Specifications

Omron G7J Series Power Relay, 24V DC Coil Voltage, 4PST-NO Contact Configuration - G7J-4A-P DC24

This power relay is designed for efficient control in various automation applications. Operating at a coil voltage of 24V DC, it is suitable for a wide range of electrical tasks. Its robust construction ensures reliability in demanding environments, with an operating temperature range from -25°C to +60°C. The versatility of this product makes it an essential component for professionals in the electrical and mechanical fields.

Features & Benefits

• Silver alloy contact ensures durability and conductivity
• PCB mount type simplifies installation and integration
• Suitable for general-purpose applications, increasing versatility
• Maximum switching power capacity of 5.5kVA for AC and 750W for DC

Applications

• Used for controlling motors and lighting circuits
• Suitable for automation processes in various industries
• Ideal for monitoring in manufacturing equipment
• Functions well in control panels for diverse settings

What is the coil resistance of this relay?

The coil resistance is 288Ω, providing efficient operation for your applications.

What is the maximum operating temperature for reliable functionality?

It can operate effectively in temperatures as high as +60°C and as low as -25°C, making it suitable for various environments.

Is the relay suitable for use in sensitive electronic applications?

Yes, the silver alloy contacts enhance performance and reliability for sensitive applications, ensuring stable operation.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	4PST-NO
Mounting Type	PCB Mount
Switching Current	25A
Number of Poles	4
Latching	No
Series	G7J
Terminal Type	PCB Pin
Length	51.5mm
Coil Resistance	288Ω
Coil Power	2W
Depth	33.5mm
Maximum Operating Temperature	+60°C
Height	51mm
Minimum Operating Temperature	-25°C
Contact Material	Silver Alloy
Maximum Switching Power AC	5.5 kVA
Maximum Switching Power DC	750 W
Application	General Purpose
