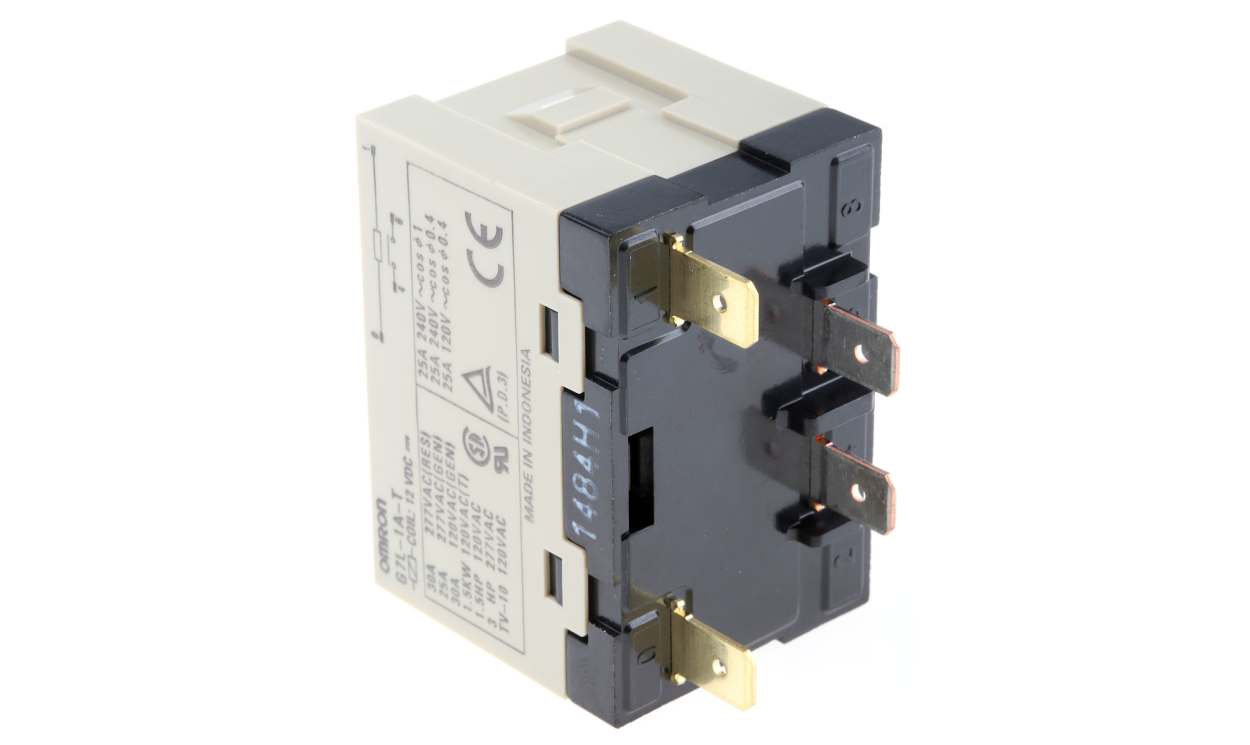

OMRON G7L-1A-T DC12 | Panel Mount Power Relay | 12 V DC Coil, SPST, 30 A
Part Number : G7L-1A-T DC12
Rated for 30 A switching current, the OMRON G7L-1A-T DC12 is an SPST power relay driven by a 12 V DC coil. The G7L-1A-T DC12 belongs to the G7L series (non-latching) and comes with panel mounting and quick-connect terminals.
- Operating temperature: −25 °C to +60 °C
- Dimensions: length 52.5 mm, depth 33.5 mm, height 53 mm
- Application category: power
- Coil resistance: 75 Ω
- Maximum switching power: 6.6 kVA (AC)
For pricing, please contact our experts.
PCB Mounting & Plug-in - Power Relays - G7L Series
Relay compatible with momentary voltage drops up to 50% of rated voltage
High capacity and high dielectric strength
Flame-resistance UL94V-0 insulation material
Choice of connection types available - quick-connect or PCB terminals
Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)
High capacity and high dielectric strength
Flame-resistance UL94V-0 insulation material
Choice of connection types available - quick-connect or PCB terminals
Suitable DIN rail/surface socket (Front connecting socket) and relay mounting clip (E-bracket) available separately for use with quick-connect types G7L-1A-T and G7L-2A-T (not to be used with G7L-1A-TUB and G7L-2A-TUB upper bracket mount types)
Approvals
UL; CSA; TÜV
