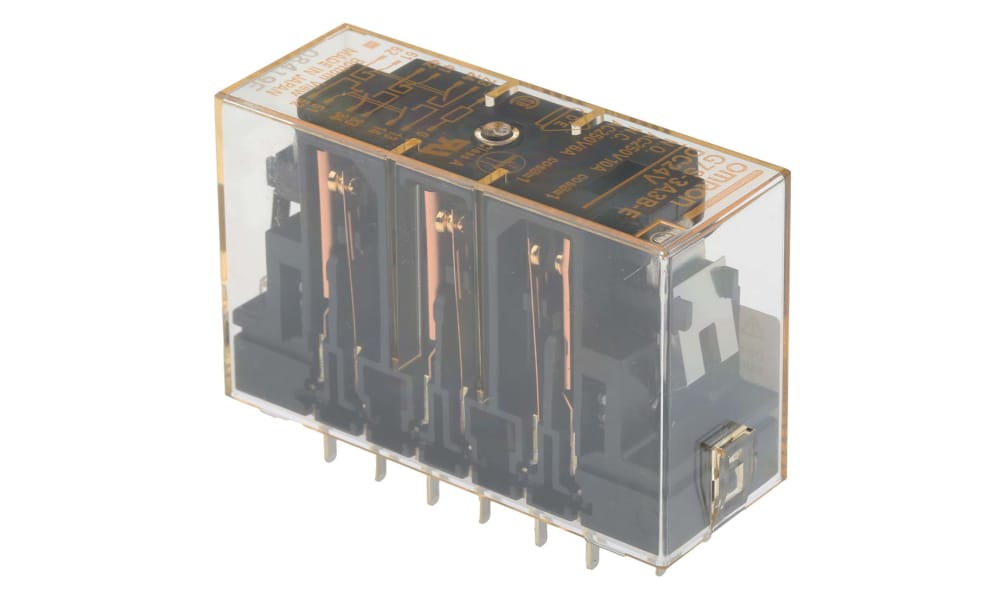

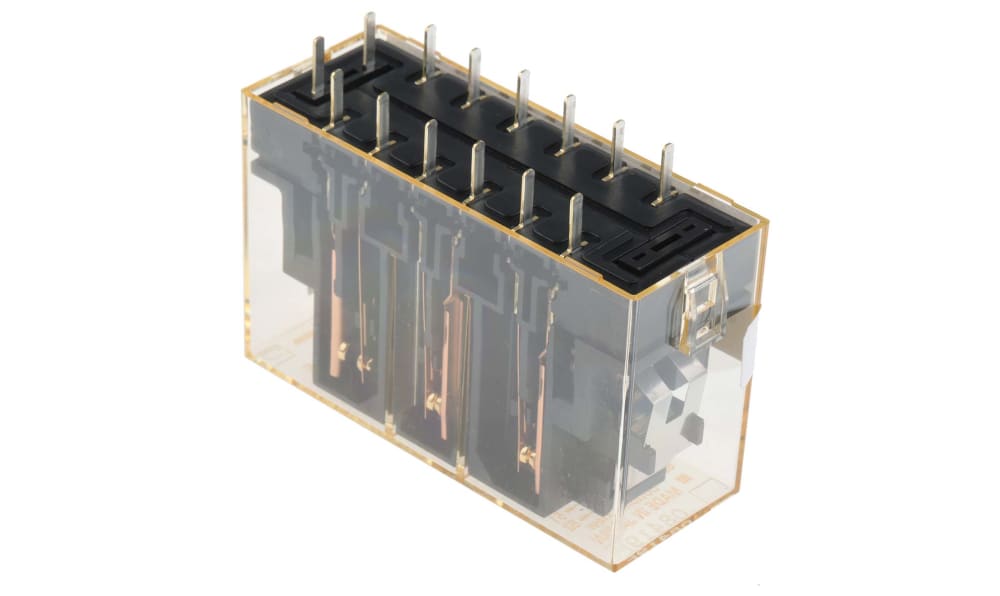

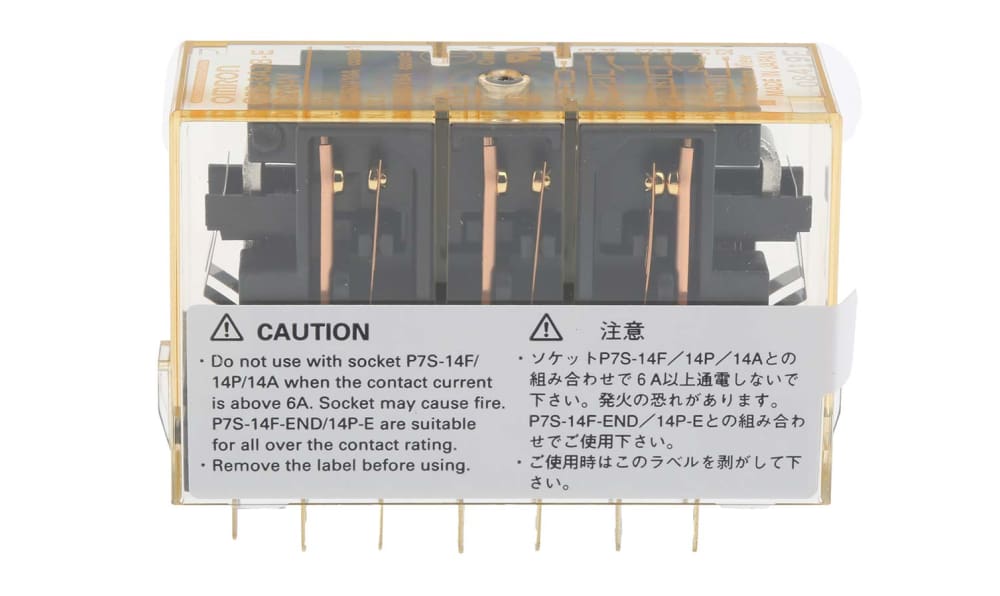

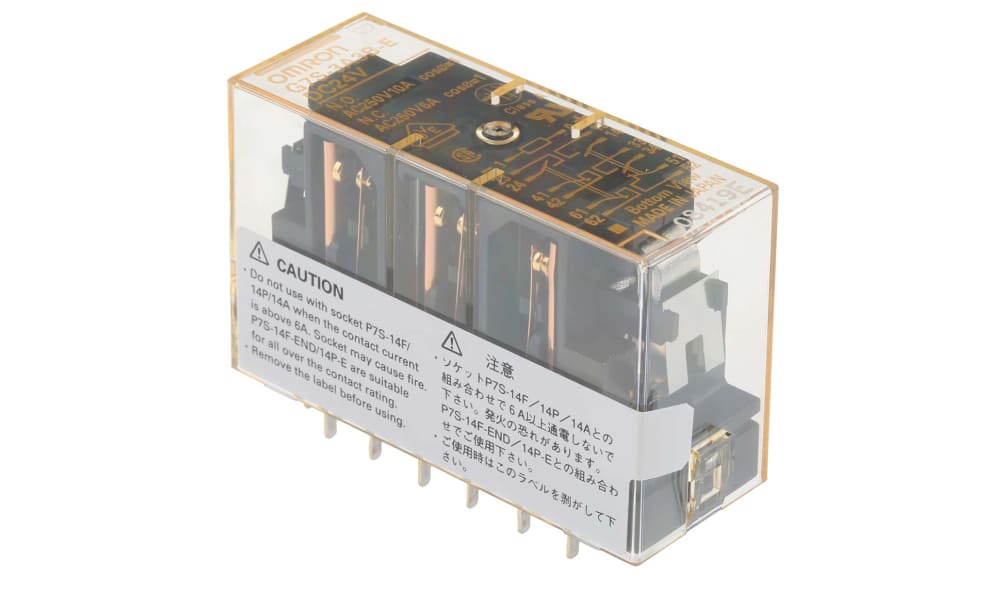

OMRON G7S-3A3B-E DC24 | PCB Force Guided Relay | 24 V DC Coil, 3PST-NO/3PST-NC, 10 A

Name: OMRON G7S-3A3B-E DC24 | PCB Force Guided Relay | 24 V DC Coil, 3PST-NO/3PST-NC, 10 A
Brand: OMRON
SKU: G7S-3A3B-E DC24
Availability: OutOfStock

Part Number : G7S-3A3B-E DC24

The OMRON G7S-3A3B-E DC24 is a six-pole force guided relay for PCB mounting, with three normally open and three normally closed contacts (3PST-NO/3PST-NC). Its 24 V DC coil is rated 800 mW.

10 A switching current
250 V AC / 30 V DC max. switching voltage
Coil resistance 800 Ω
Through-hole, 62 x 22.5 x 37 mm
Operating temperature -25 to +70 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Omron G7S Series Force Guided Relay, 24V DC Coil Voltage, 800mW Coil Power - G7S-3A3B-E DC24

This force guided relay is crafted for dependable operation in automation and electrical applications. Its strong performance is essential for effective circuit control, particularly in environments prioritising safety and precision. This device is tailored for users requiring a compact solution without sacrificing power or functionality.

Features & Benefits

• Coil resistance of 800Ω ensures consistent operation
• Handles high switching current up to 10A
• Compact PCB mount design for straightforward integration
• Operational temperature range from -25 to +70°C
• Compliant with CSA and UL safety standards
• Low coil power consumption of only 800mW

Applications

• Controls industrial machinery and equipment
• Suitable for automation within production lines
• Integrates smoothly into circuit protection systems
• Appropriate for safety applications that necessitate redundancy

What type of circuit can it control?

This relay is capable of managing both AC and DC circuits, offering versatility for a range of setups.

How to install the product?

With a PCB mount design, it allows for easy integration into existing systems.

Is it suitable for outdoor use?

While it operates effectively within a broad temperature range, it is advisable to use it in protected environments to maintain performance.

Does it require any special maintenance?

Regular checks for functionality are recommended to ensure it operates within the specified parameters.

Can it be used with different voltages?

It is specifically designed for 24V DC applications to ensure optimal performance at this voltage.

Brand	Omron
Coil Voltage	24V dc
Mounting Type	PCB Mount
Contact Configuration	3PST-NO/3PST-NC
Number of Poles	6
Coil Resistance	800Ω
Switching Current	10A
Maximum Switching Current AC	10 A
Coil Power	800mW
Maximum Switching Current DC	10 A
Maximum Switching Voltage DC	30V
Maximum Switching Voltage AC	250V
Terminal Type	Through Hole
Minimum Operating Temperature	-25°C
Depth	22.5mm
Series	G7S
Life	1000000 Cycles; 100000Cycles
Height	37mm
Maximum Operating Temperature	+70°C
Length	62mm
