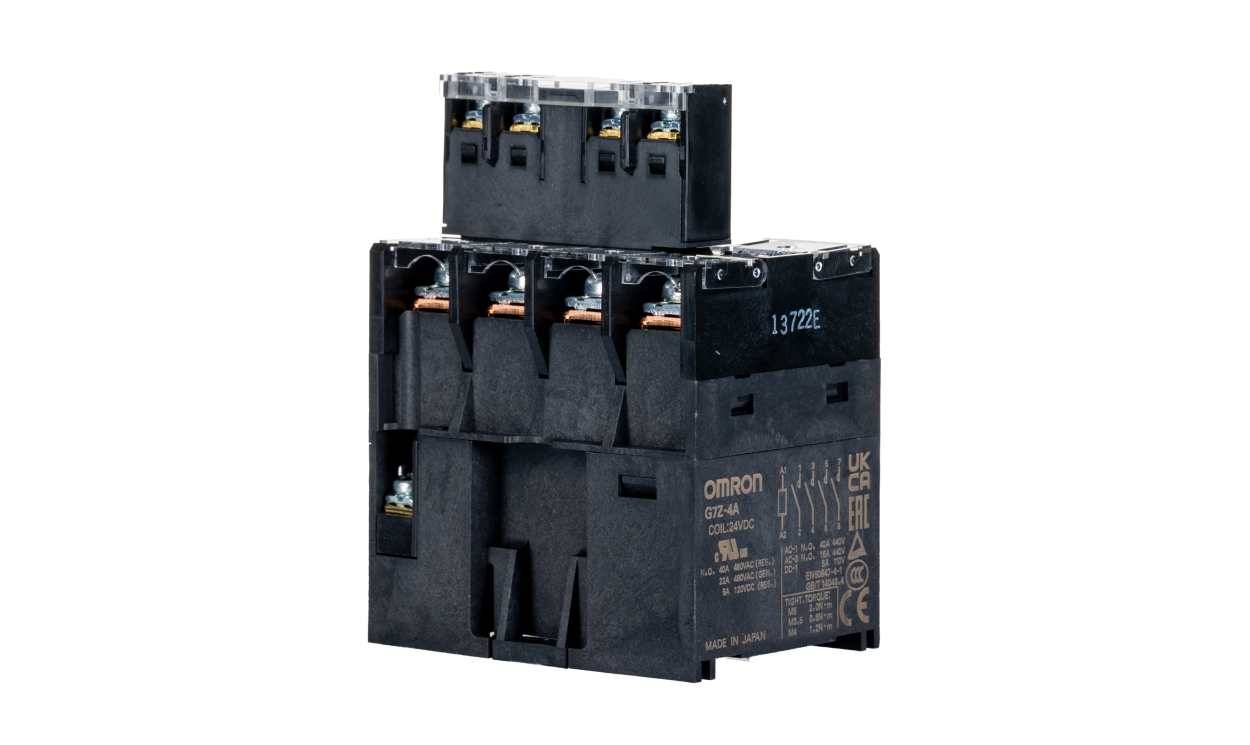

Name: Omron G7Z-4A-11Z-R DC24, Chassis Mount Power Relay, 24V dc Coil, 40 (AC) A, 5 (DC) A Switching Current
Brand: OMRON
SKU: G7Z-4A-11Z-R DC24
Availability: OutOfStock

Omron G7Z-4A-11Z-R DC24, Chassis Mount Power Relay, 24V dc Coil, 40 (AC) A, 5 (DC) A Switching Current

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G7Z-4A-11Z-R DC24, Chassis Mount Power Relay, 24V dc Coil, 40 (AC) A, 5 (DC) A Switching Current

Part Number : G7Z-4A-11Z-R DC24

Availability: Sold out

Detailed Description
Specifications

Omron G7Z Series Power Relay, 24V DC Coil Voltage, 3.7W Coil Power - G7Z-4A-11Z-R DC24

This power relay is a key component in automation and control systems, designed for high-current applications. It offers efficient switching of electrical loads, making it suitable for industrial environments. With a coil voltage of 24V DC, this relay controls motors and inverters with ease.

Features & Benefits

• Capable of switching currents up to 40A at 440V AC
• Features a 4PST-NO contact configuration for diverse applications
• Non-latching design simplifies integration into various electrical systems
• Chassis mount installation ensures secure placement
• High contact life of up to 1 million operations reduces maintenance requirements
• Compliant with CE standards, ensuring safe operation

Applications

• Utilised with industrial inverters for efficient power supply control
• Suitable for switching motor loads across various machinery
• Employed for controlling servo drivers in automation systems
• Ideal for applications needing high current switching capabilities

How should it be installed to ensure proper functioning?

The relay should be mounted with the coil terminal facing upwards, using M4 screws for a secure fit.

What type of load can be managed with this device?

It efficiently manages both resistive and inductive loads within the specified current ratings as per system requirements.

Is there a need for additional components when integrating it into a circuit?

Surge-absorbing diodes are recommended to suppress counter-electromotive voltage when connected to semiconductor elements.

What precautions are necessary during installation?

Ensure adequate spacing from grounded surfaces and set the tightening torque for screws appropriately to prevent overheating.

Can it be used in combination with auxiliary contact blocks?

Yes, it supports the use of auxiliary contact blocks for enhanced functionality in more complex applications.

Brand	Omron
Coil Voltage	24V dc
Mounting Type	Chassis Mount
Switching Current	40 (AC) A, 5 (DC) A
Number of Poles	4
Series	G7Z
Latching	No
Terminal Type	Crimp
Maximum Switching Voltage AC	480V ac
Maximum Switching Voltage DC	125V dc
Maximum Switching Current AC	40 A
Maximum Switching Current DC	5 A
Length	45mm
Coil Power	3.7W
Contact Material	Silver Alloy
Life	1000000 (Minimum) operations
Minimum Operating Temperature	-25°C
Height	62mm
Depth	92.2mm
Maximum Operating Temperature	+60°C
