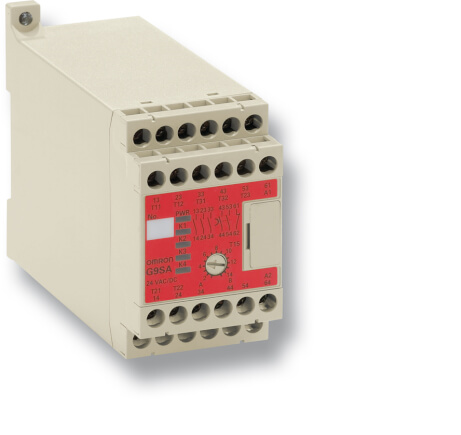

OMRON G9SA-301 AC/DC24 | Emergency Stop Safety Relay | 24 V AC/DC, 3 Safety Contacts
The OMRON G9SA-301 AC/DC24 is a G9SA emergency stop safety relay for 24 V AC/DC with 3PST-NO safety outputs rated 5 A and one SPST-NC auxiliary contact. It accepts 1- or 2-channel input and resets automatically.
- Outputs: 3PST-NO, 5 A; auxiliary SPST-NC
- Supply voltage: 24 V AC/DC
- Input channels: single or dual
- Safety category 4 (ISO 13849-1)
- Performance level e (ISO 13849-1)
- Reset: automatic
- Dimensions (L x W x D): 76 x 45 x 111 mm
- Approvals: CE, CSA
- Detailed Description
- Specifications
- Features
- Downloads
Omron G9SA Series Safety Relay, 1 Auxiliary Contact, Emergency Stop Function - G9SA-301 AC/DC24
Features & Benefits
• Dual channel safety relay for added redundancy and safety
• Compact design for easy integration into existing systems
• Auxiliary contacts for enhanced functionality
Applications
• Ideal for safety gates and interlocking systems
• Suitable for safety circuits in manufacturing plants
Can it be used in safety circuits for multiple machines?
Will it provide reliable safety functions in high-speed automation systems?
Standards
| Brand | Omron |
| Series | G9SA |
| Supply Voltage | 24V ac/dc |
| Function | Emergency Stop |
| Safety Contacts | 3 |
| Auxiliary Contacts | 1 |
| Number of Channels | 1, 2 |
| Safety Category ISO 13849-1 | 4 |
| Depth | 111 mm (4.37 in) |
| Width | 45 mm (1.77 in) |
| Length | 76 mm (2.99 in) |
| Reset Method | Automatic |
| PL ISO 13849-1 | e |
| Performance Level | e |
| Standards Met | CE, CSA |
Safety relay unit, 3PST-NO (Category 4), 5 A, SPST-NC aux, 1 or 2 channel input
