Omron G9SB-200-B AC/DC24, G9SB Safety Relay 24V ac/dc, Dual-Channel 2 Safety Contacts

Name: Omron G9SB-200-B AC/DC24, G9SB Safety Relay 24V ac/dc, Dual-Channel 2 Safety Contacts
Brand: OMRON
SKU: G9SB-200-B AC/DC24
Availability: OutOfStock

Part Number : G9SB-200-B AC/DC24

Availability: Sold out

Detailed Description
Specifications
Downloads

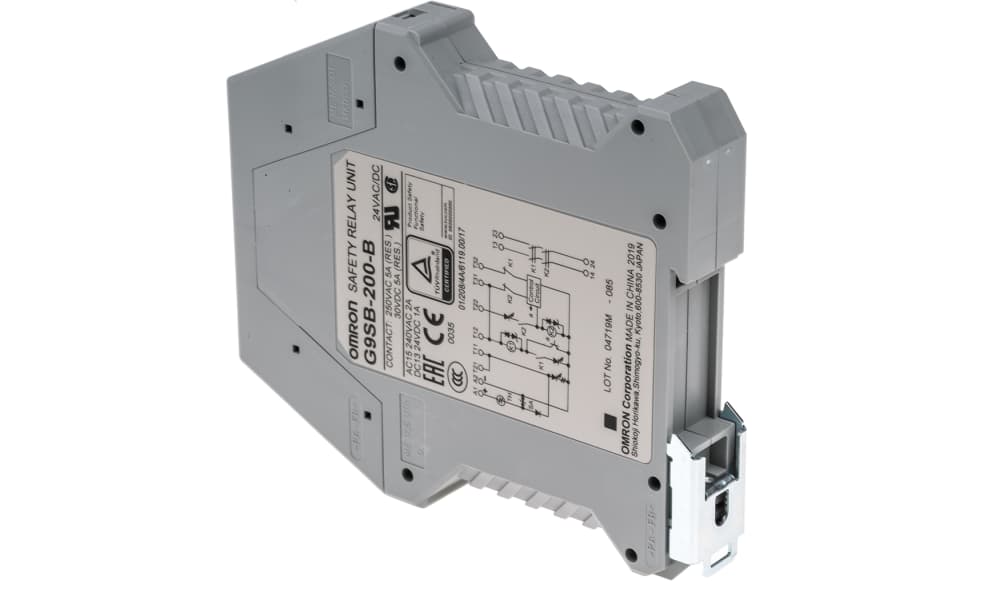

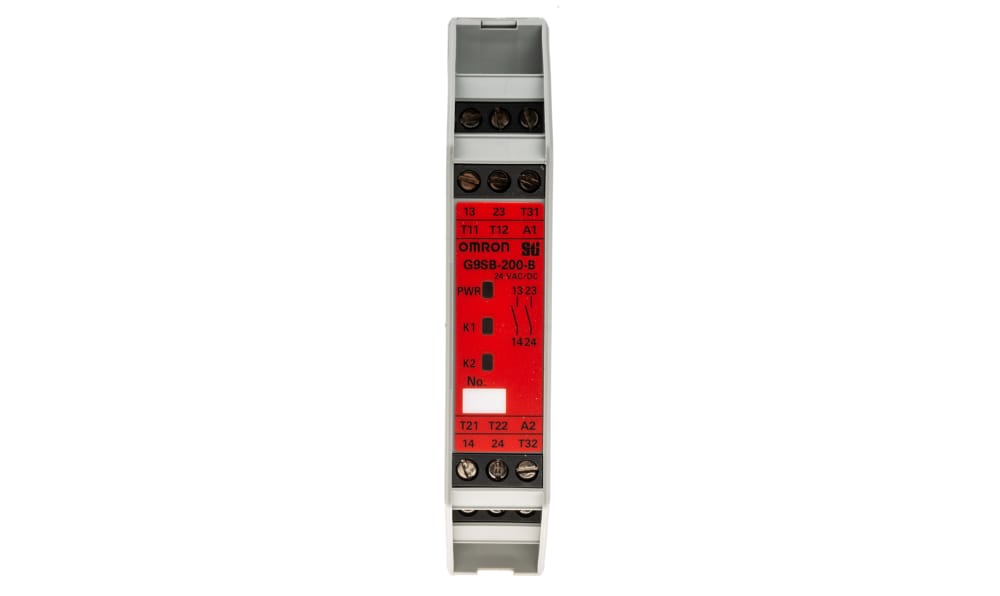

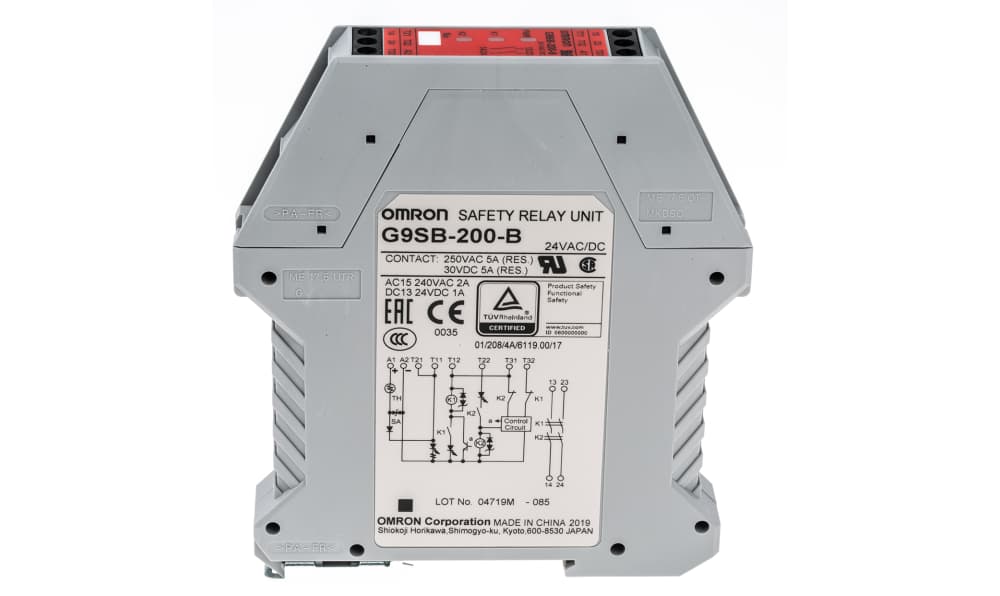

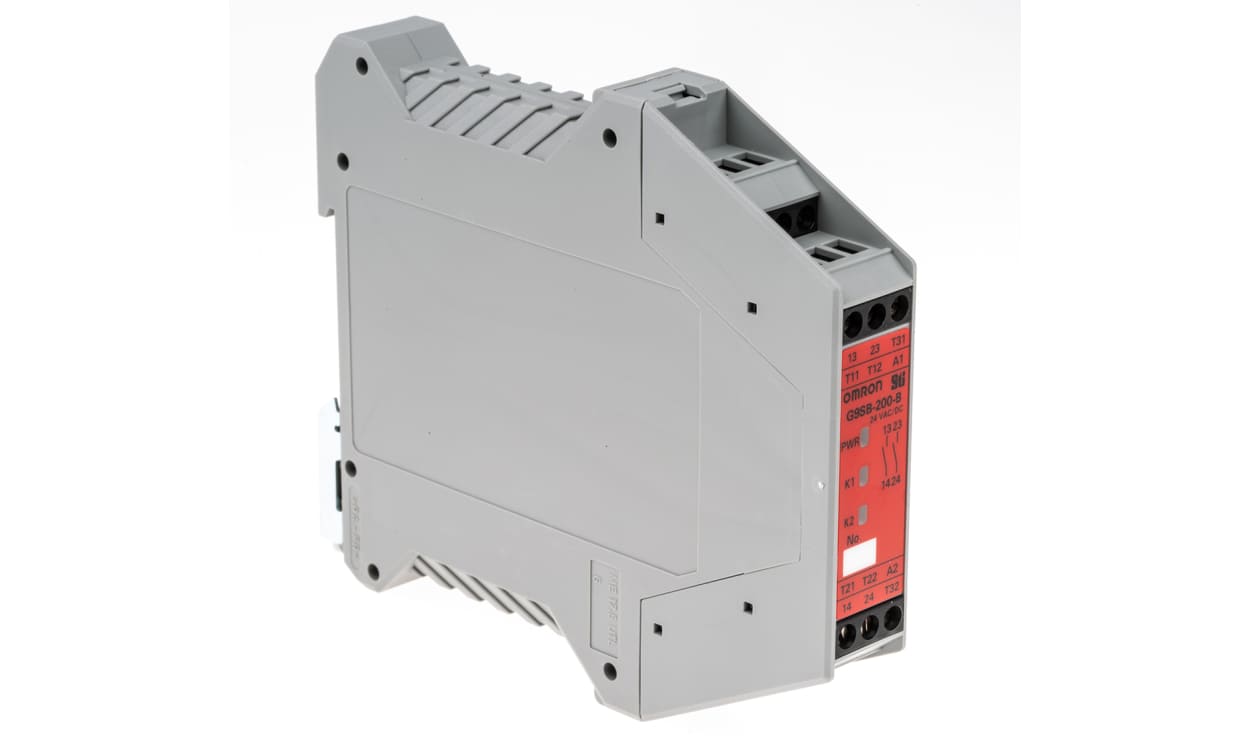

Omron G9SB Series Safety Relay, 24V AC/DC Supply Voltage, 100mm Length - G9SB-200-B AC/DC24

This safety relay is designed to enhance operational safety in automated environments. It is critical for emergency stop applications, providing immediate power disconnection in the event of a safety breach. By adhering to rigorous safety standards, this relay offers peace of mind in various industrial contexts.

Features & Benefits

• Supports automatic reset for convenient operation
• Conforms to ISO 13849-1 Safety Category 4 standards
• Compact design with a width of only 18mm for efficient installation
• CE and CSA certified for compliance in global markets
• Dual channel input ensures dependable safety signal processing

Applications

• Used in emergency stop systems for machinery
• Suitable for conveyor system safety monitoring
• Ideal for protecting automated robotic arms
• Employed in industrial controls for machine safety
• Integrated into safety circuits involving limit switches

How does this device handle power failures?

It automatically resets after a power failure, maintaining safety protocols.

Can it be used with different voltage inputs?

Yes, it operates on both 24V AC and DC inputs.

What is the installation process like?

Installation is straightforward on DIN rails, making it user-friendly.

Is it suitable for use in hazardous environments?

Yes, it should be installed within an enclosure rated IP54 or higher.

How to ensure it operates correctly?

Regular testing of input signals and connections is recommended to maintain functionality.

Brand	Omron
Supply Voltage	24V ac/dc
Number of Channels	2
Safety Contacts	2
Function	Emergency Stop
Reset Method	Automatic
Safety Category ISO 13849-1	4
Depth	112mm
Series	G9SB
Width	18mm
Length	100mm

Omron G9SB-200-B AC/DC24, G9SB Safety Relay 24V ac/dc, Dual-Channel 2 Safety Contacts

DOWNLOAD CATALOG

G9SB-200-B AC DC24 Omron Machine Safety 0900766b814c686b

G9SB-200-B AC DC24 G9SB Datasheet 0900766b816a0fd6

Omron G9SB-200-B AC/DC24, G9SB Safety Relay 24V ac/dc, Dual-Channel 2 Safety Contacts
