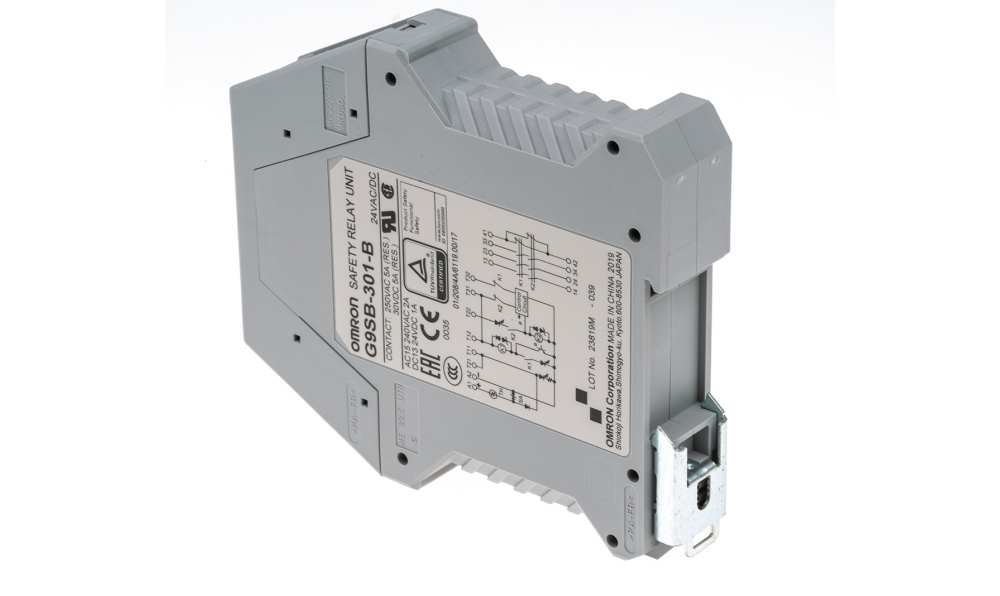

Omron G9SB-301-B AC/DC24, G9SB 1 Auxiliary Contacts Safety Relay 24V ac/dc, Dual-Channel 3 Safety Contacts

Name: Omron G9SB-301-B AC/DC24, G9SB 1 Auxiliary Contacts Safety Relay 24V ac/dc, Dual-Channel 3 Safety Contacts
Brand: OMRON
SKU: G9SB-301-B AC/DC24
Availability: OutOfStock

Part Number : G9SB-301-B AC/DC24

Safety relay unit, DIN 22.5mm, 3PST-NO (Category 4), 5 A, SPST-NC aux, 1 or 2 channel input, auto-reset (+ common input)

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

G9SB, Safety Relays, Ultra Slim

The Omron G9SB series is an ultra slim safety relay available in either a 17.5mm or 22.5mm housing. The 17.5mm units have 2 or 3 safety contacts and the 22.5mm units have 3 safety contacts and an auxiliary contact.

1 and 2 input channel units
Manual and automatic reset units
Certification up to category 4 according to EN954-1 (depending on the application)
Can also be used with safety sensors F3SN, F3SH, F3S-B, F3STGR, F3SL, F3S-J
Conforms to EN standards (TUV approval)

Note

When ordering take note of the safety reset mode that is required: Models G9SB**A and G9SB ** B = Auto Reset operation; Models G9SB ** D = Manual Reset operation

Approvals

EN954-1, EN60204-1, UL508, CSA C22.2 No. 14

OMRON Safety Relay, DIN Rail Mounting, 22.5 (W) x 100 (H) x 112mm (D) - G9SB Series - G9SB-301-B AC/DC24

Nip electrical hazards in the bud with this safety relay from OMRON. The device's emergency stop function shuts equipment down if it detects an issue, working with a safety mat or light curtain to deliver effective workforce protection. With a reaction time of 10ms, the switch springs into action to quickly respond to faults. Thanks to its auxiliary contact, it alerts your control device when it switches for hassle-free monitoring. Tool-free rail mounting means you can clip the relay into a cabinet in a flash.

Features & Benefits

• 2 input channels for handy dual-circuit fault monitoring
• Electrical service life of at least 100,000 operations to provide long-term safety measure control
• Low maximum power usage of 1.7W to cut down on energy consumption
• Screw terminals means fingers stay clear of conductors

Applications

• Heavy engineering
• Process control
• Packaging industry

How do I reset this safety relay?

To cut unnecessary downtime out of the equation, this unit automatically resets after a fault, getting your hardware running again as soon as it's safe to do so.

Brand	Omron
Supply Voltage	24V ac/dc
Number of Channels	2
Safety Contacts	3
Function	Emergency Stop
Auxiliary Contacts	1
Reset Method	Automatic
Safety Category ISO 13849-1	4
Standards Met	CE, CSA, cURus
Safety Category	3
Depth	112mm
Width	23mm
Series	G9SB
Length	100mm

Safety relay unit, DIN 22.5mm, 3PST-NO (Category 4), 5 A, SPST-NC aux, 1 or 2 channel input, auto-reset (+ common input)

Omron G9SB-301-B AC/DC24, G9SB 1 Auxiliary Contacts Safety Relay 24V ac/dc, Dual-Channel 3 Safety Contacts

DOWNLOAD CATALOG

G9SB-301-B AC DC24 Omron Machine Safety 0900766b814c686b

G9SB-301-B AC DC24 G9SB Datasheet 0900766b816a0fdb
