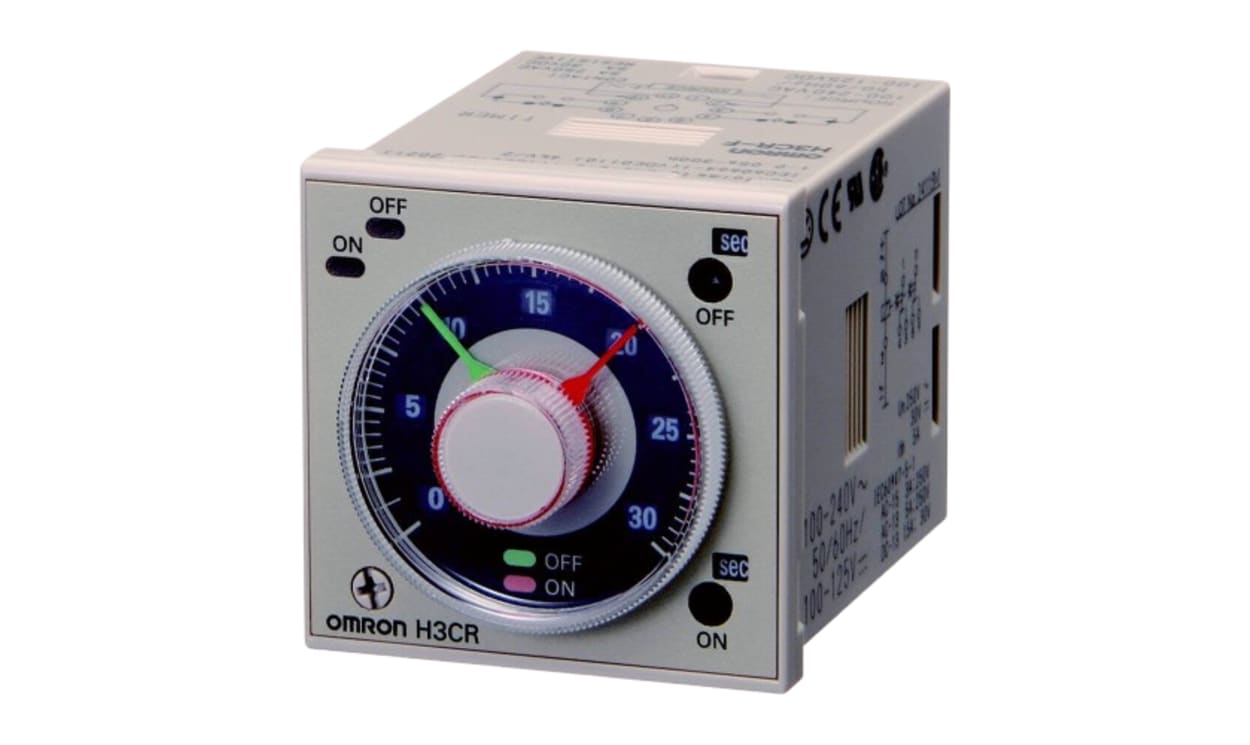

Name: Omron H3CR-F 100-240VAC/100-125VDC, H3CR Series DIN Rail, Panel Mount Timer Relay, 100 → 240V ac, 2-Contact, 0.05 s → 300 h,
Brand: OMRON
SKU: H3CR-F 100-240VAC/100-125VDC
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron H3CR-F 100-240VAC/100-125VDC, H3CR Series DIN Rail, Panel Mount Timer Relay, 100 → 240V ac, 2-Contact, 0.05 s → 300 h,

Part Number : H3CR-F 100-240VAC/100-125VDC

Availability: Sold out

Detailed Description
Specifications

Omron H3CR Series Timer Relay, DPDT Contact Configuration, 100 to 240V AC Supply Voltage - H3CR-F AC100-240/DC100-125

This timer relay is tailored for various industrial applications, providing precise control for automation and electrical duties. It functions within a supply voltage range of 100 to 240V AC, suitable for diverse environments. With compact dimensions of 48x84mm, it can be installed on DIN rails or panels, allowing flexibility in setup.

Features & Benefits

• Flicker OFF Start mode improves operational control
• Dual contacts facilitate effective circuit switching
• Maximum current rating of 5A supports demanding applications
• DPDT configuration offers versatile connectivity options
• Time range from 0.05s to 300h enables accurate timing adjustments
• External power supply assures dependable performance

Applications

• Utilised in industrial automation systems
• Suitable for HVAC control timing
• Ideal for sequential machine operations
• Employed in safety interlocking scenarios
• Useful in process control solutions

Can it operate at temperatures below -10°C?

No, the minimum operating temperature is -10°C.

Will it handle both AC and DC voltage?

Yes, it supports voltages up to 240V AC and 125V DC.

Is it easy to install in existing setups?

Yes, it can be mounted on DIN rails or panels with ease.

Can it provide adjustable timing for different tasks?

Yes, it offers a time range from 0.05s to 300h.

Brand	Omron
Supply Voltage	100 → 240V ac
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start
Time Range	0.05 s → 300 h
Number of Contacts	2
Number of Timer Functions	Single
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	125 V dc, 240V ac
Switch Configuration	DPDT
Terminal Type	PCB Pin
Power Supply	External
Minimum Voltage	100 V ac, 100V dc
Width	48mm
Maximum Operating Temperature	+55°C
Depth	84mm
Series	H3CR
Length	48mm
