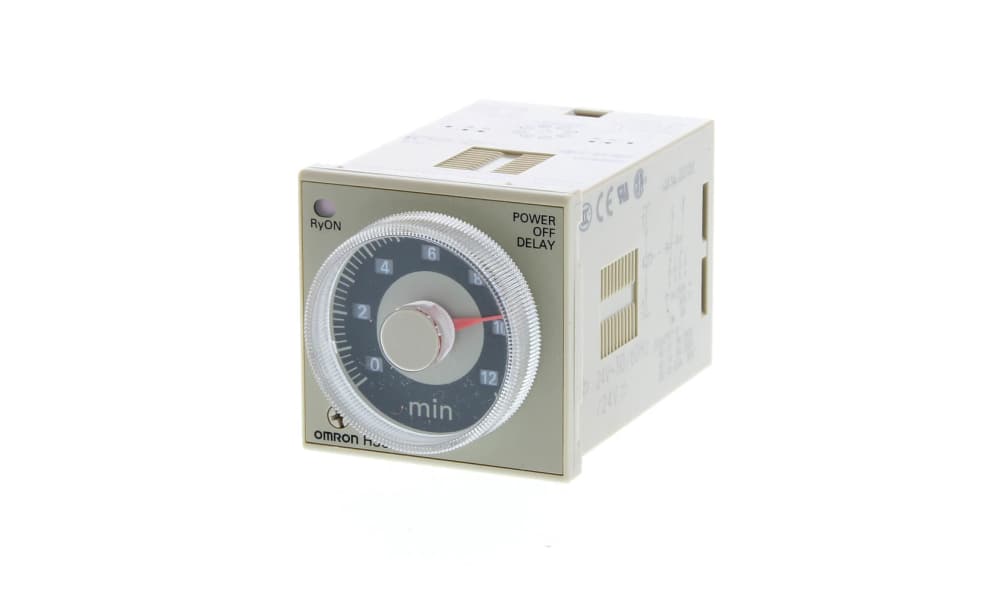

OMRON H3CR-H8L 24VAC/DC M | Off-Delay Timer Relay | 0.05-12 min, 24 V AC/DC, DPDT
Part Number : H3CR-H8L 24VAC/DC M
Supplied at 24 V AC/DC, this H3CR off-delay timer relay (OMRON H3CR-H8L 24VAC/DC M) sets delays across 0.05 to 12 min; its specified operating mode is off-delay.
- Output contacts: DPDT, 5 A maximum
- Mounting: DIN rail or panel mount
- Terminals: 8-pin connector
- Size: 48 x 48 mm
- Maximum switching voltage: 30 V DC, 250 V AC
- Operating temperature: -10 °C to +55 °C
For pricing, please contact our experts.
OMRON Timer Relay, 4kV Impulse Withstand Voltage, IP40 Rating - H3CR Series - H3CR-H8L AC/DC24 M
For pre-programmed power-downs you can set your watch by, pick this handy timer relay from OMRON. As a power-off delay model, it pauses for between 0.5 seconds and 12 minutes from the moment it receives a control signal to the instant it turns your connected kit off. The versatile unit is lightweight at just 50g and is easy to install using either surface mounting, flush mounting or dependably quick DIN-rail installation. A tight accuracy of ±0.2% of FS means you can rely on this timer to count accurately and deliver predictable performance.
Features & Benefits
• Conditional short-circuit protection shields against common current faults
• Resists shock and vibration, so safe to use in harsh industrial settings or near moving machinery
• Impulse withstand voltage of 4kV lets the unit tolerate significant electrical surges
• IP40 rating means it resists tools or wires with a diameter of 2.5mm or greater
• Resists shock and vibration, so safe to use in harsh industrial settings or near moving machinery
• Impulse withstand voltage of 4kV lets the unit tolerate significant electrical surges
• IP40 rating means it resists tools or wires with a diameter of 2.5mm or greater
Applications
• Industrial automation
• Mining
• Food and beverage production
• Mining
• Food and beverage production
How durable is this device?
As it offers a mechanical service life of 10 million operations and an electrical life of up to 100,000 cycles, you can rest assured this timer relay is a super-durable pick.
