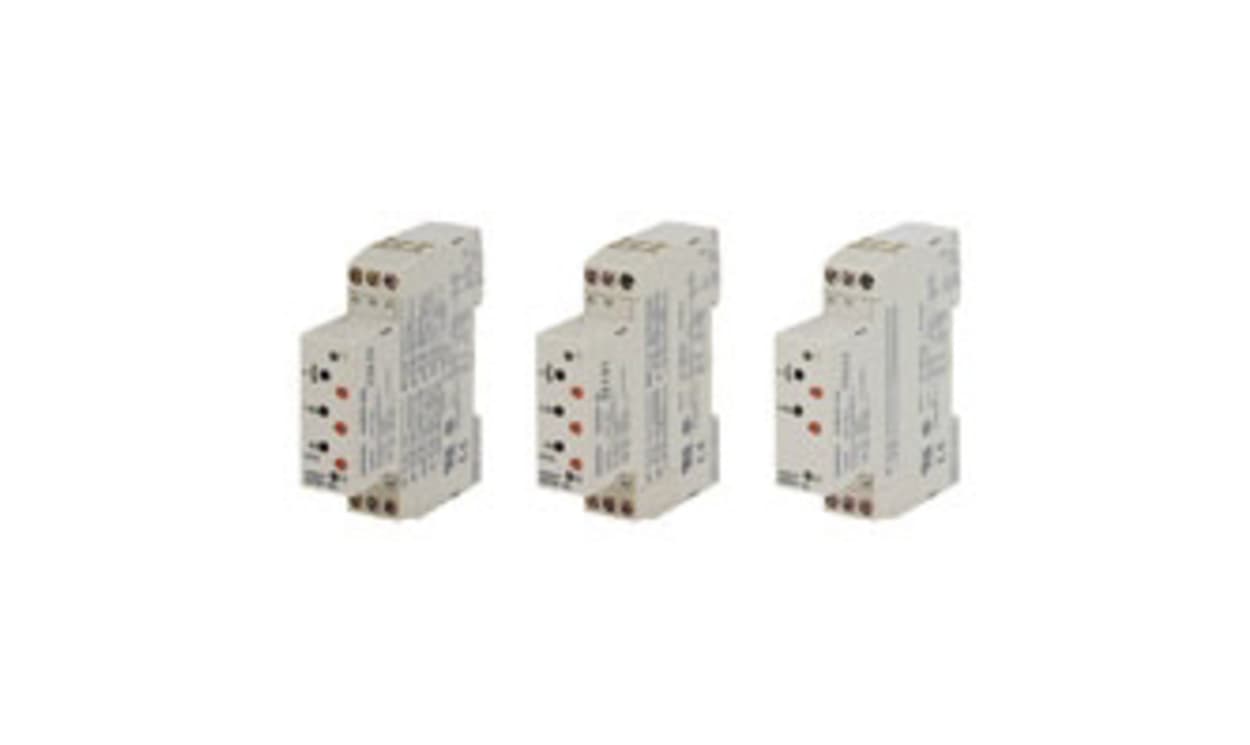

Omron H3DS-XLC, H3DS Series DIN Rail Mount Timer Relay, 24 → 230V ac/dc, 0.1 s → 120h

Name: Omron H3DS-XLC, H3DS Series DIN Rail Mount Timer Relay, 24 → 230V ac/dc, 0.1 s → 120h
Brand: OMRON
SKU: H3DS-XLC
Availability: OutOfStock

Part Number : H3DS-XLC

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Timer Relay

The Omron H3DS series relay is an analogue set multifunction relay along with an ultra slim timer and is DIN mount. It has 8 operating modes of H3DS-M and 4 operating modes of H3DS-S to cover a wide range of applications. To prevent shock, it has finger protection terminal block. This timer has a locking mechanism that prevents the dials and selectors on the timer's front panel from being operated without authorization. The relay requires a supply voltage ranging between 24VAC/DC and 230VAC/DC and a maximum current rating of 0.7A. It has an adjustable time range between 0.01sec and 120hours.

Features and Benefits

• Easy setup
• High immunity to inverter noise
• Ideal for space restricted panel applications
• Independent ON and OFF time setting on twin timer
• Operating temperature ranges between -10°C and 55°C

Applications

• Industrial application
• Timing control

Certifications

• CE approved
• CSA certified
• UL rated

Brand	Omron
Supply Voltage	24 → 230V ac/dc
Mounting Type	DIN Rail
Mode of Operation	ON Delay
Time Range	0.1 s → 120h
Number of Timer Functions	Multi Function
Time Increment	Hours, Minutes, Seconds
Maximum Current	0.7A
Maximum Voltage	230V ac/dc
Terminal Type	Screw
Width	80mm
Minimum Voltage	24V ac/dc
Power Supply	Internal
Depth	74mm
Minimum Current	0.005A
Length	17.5mm
Series	H3DS
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-10°C
