OMRON H3DT-A1 24-240VAC/DC | DIN Rail On-Delay Timer Relay | 24–240 V AC/DC, 0.1 s–1200 h, SPDT
The OMRON H3DT-A1 24-240VAC/DC is an H3DT series DIN rail on-delay timer relay with a 0.1 s to 1200 h time range, powered from 24 to 240 V AC/DC. The H3DT-A1 24-240VAC/DC provides SPDT output and a 5 A maximum current rating.
- Operating mode: ON Delay
- Single timer function
- Push-in terminals
- Dimensions: 90 mm wide, 17.5 mm long and 100 mm deep (as listed)
- Maximum operating temperature +60 °C
- Detailed Description
- Specifications
- Downloads

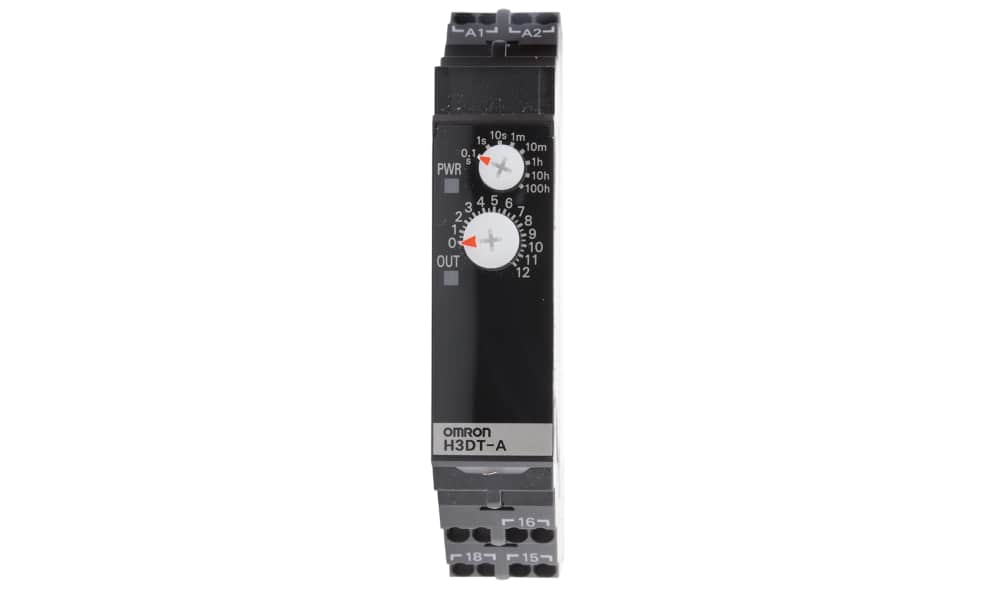

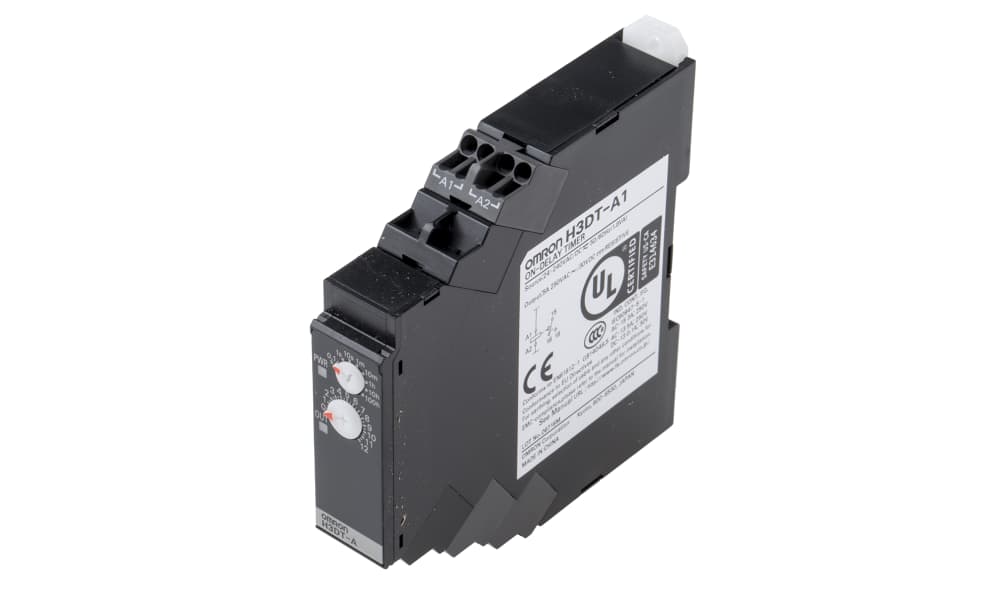

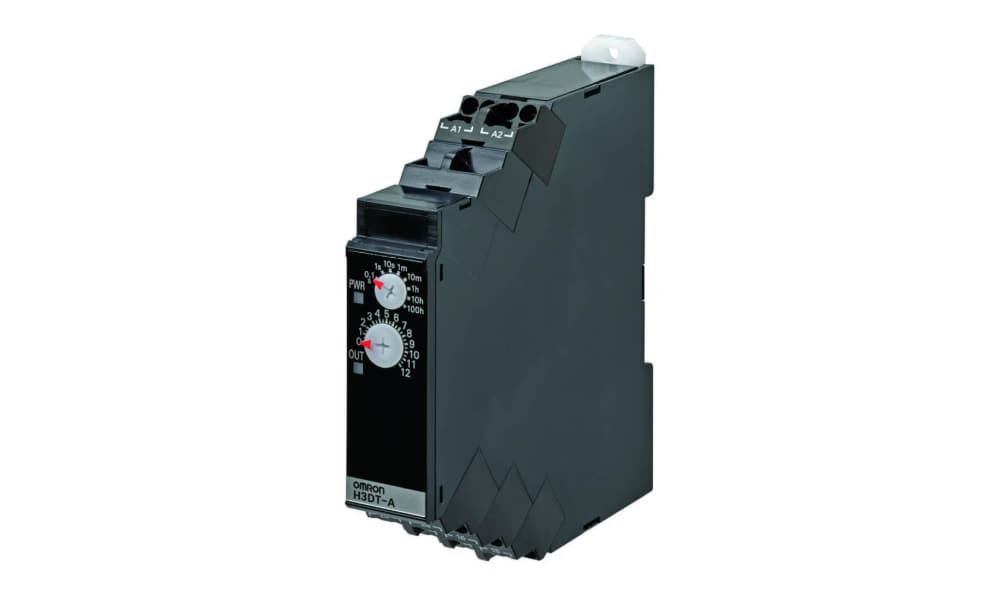

H3DT-A On Delay Timer
• Slim design, 17.5 mm width
• Fast wiring due to push in plug technology
• Relay output
• 24-240 V ac/dc supply voltage
• DIN Rail mounting
Omron H3DT Series Timer Relay, 24 to 240 V AC/DC Supply Voltage, 5A Maximum Current - H3DT-A1
Features & Benefits
• SPDT contact configuration enables versatile connections
• Time range from 0.1s to 1200h allows for flexible timing
• Push-in terminal type ensures rapid and secure installation
• Operates effectively within a temperature range of -20°C to +60°C
• Maximum current rating of 5A supports many electrical applications
Applications
• Suitable for HVAC systems to manage operational cycles
• Integrated into process control systems for precise timing
• Employed in lighting control for energy saving
• Ideal for automation tasks in manufacturing lines
What is the typical current rating that can be handled?
How does the device maintain performance across temperature extremes?
What installation method is recommended for optimal performance?
| Brand | Omron |
| Series | H3DT |
| Supply Voltage | 24 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Mode of Operation | ON Delay |
| Time Range | 0.1 s → 1200 h |
| Number of Timer Functions | Single |
| Number of Contacts | 2 |
| Time Increment | Hours, Minutes, Seconds |
| Maximum Voltage | 240V |
| Terminal Type | Push In |
| Switch Configuration | SPDT |
| Width | 90 mm (3.54 in) |
| Maximum Operating Temperature | +60 °C (140 °F) |
| Depth | 100 mm (3.94 in) |
| Length | 17.5 mm (0.689 in) |
| Contact Configuration | SPDT |
| Maximum Current | 5A |
| Power Supply | External |
| Minimum Voltage | 24V |
