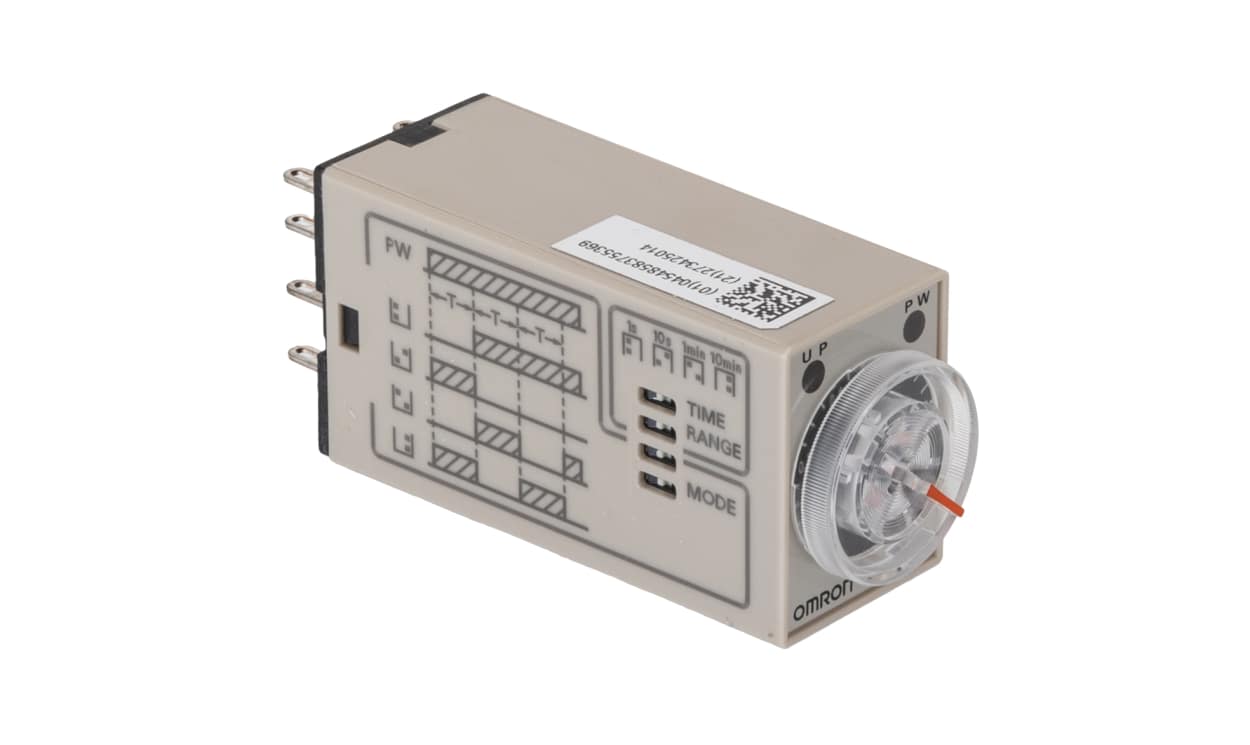

OMRON H3YN-2 DC12 | DIN Rail Multifunction Timer Relay | 12 V DC, 0.1 s–10 min, DPDT

Name: OMRON H3YN-2 DC12 | DIN Rail Multifunction Timer Relay | 12 V DC, 0.1 s–10 min, DPDT
Brand: OMRON
SKU: H3YN-2 DC12
Availability: OutOfStock

Part Number : H3YN-2 DC12

Covering a 0.1 s to 10 min time range, the OMRON H3YN-2 DC12 H3YN series DIN rail multifunction timer relay runs on a 12 V DC supply. Listed specifications for the H3YN-2 DC12 include DPDT output and a 5 A maximum current rating.

Modes of operation: Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Plug-in terminal connection
Dimensions: 28 mm wide, 21.5 mm long and 56.6 mm deep (as listed)

Availability: in stock

Detailed Description
Specifications
Downloads

Omron H3YN Series Timer Relay, DPDT Contact Configuration, 12V DC Supply Voltage - H3YN-2 DC12

This timer relay is a versatile device designed for various automation and control applications. It operates at a supply voltage of 12V DC and features a DIN rail mounting type for straightforward installation. With compact dimensions of 21.5x56.6mm, it is well-suited for environments where space is limited. Its range of operational modes enhances adaptability in diverse scenarios.

Features & Benefits

• Multi-function timer for different operational requirements
• Supports Flicker OFF Start and ON Delay modes
• Handles current loads of up to 5A
• Two contacts in DPDT configuration for flexibility
• Designed for connection to an external power supply
• Maximum voltage ratings of 125V DC and 230V AC

Applications

• Suitable for HVAC system timing operations
• Employed in process control
• Utilised in safety interlock circuits

Can it operate within a wide temperature range?

Yes, it functions between -10°C and +50°C.

Will it require an external power source?

Yes, it is intended for use with an external power supply.

Is it easy to install in existing systems?

Yes, it conveniently mounts on DIN rails.

Brand	Omron
Supply Voltage	12V dc
Mounting Type	DIN Rail
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Time Range	0.1 s → 10min
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Minutes, Seconds
Maximum Current	5A
Maximum Voltage	125 V dc, 230V ac
Terminal Type	Plug In
Switch Configuration	DPDT
Width	28mm
Power Supply	External
Minimum Voltage	12 V dc, 24V ac
Series	H3YN
Depth	56.6mm
Minimum Current	3A
Length	21.5mm

OMRON H3YN-2 DC12 | DIN Rail Multifunction Timer Relay | 12 V DC, 0.1 s–10 min, DPDT

DOWNLOAD CATALOG

H3YN-2 DC12 Selection Guide - H3 and H5 Series A700000012598577

OMRON H3YN-2 DC12 | DIN Rail Multifunction Timer Relay | 12 V DC, 0.1 s–10 min, DPDT

Omron H3YN Series Timer Relay, DPDT Contact Configuration, 12V DC Supply Voltage - H3YN-2 DC12

Features & Benefits

Applications

Can it operate within a wide temperature range?

Will it require an external power source?

Is it easy to install in existing systems?

OMRON H3YN-2-B DC125 | Panel Mount Multifunction Timer Relay | 125 V DC, 0.1 s–10 min, DPDT

OMRON H3YN-21-B DC12 | Panel Mount Multifunction Timer Relay | 12 V DC, 0.1 min–10 h, DPDT

OMRON H3YN-41-B 100-120VAC | Panel Mount Multifunction Timer Relay | 100–120 V AC, 0.1 min–10 h, 4PDT

OMRON H3YN-4-B AC24 | Panel Mount Multifunction Timer Relay | 24 V AC, 0.1 s–10 min, 4PDT

OMRON H3RN-11 24VAC | Plug-In Multifunction Timer Relay | 24 V AC, 0.1 min–10 h, SPDT

OMRON H5CC-AWSD | Flush Mount Timer Relay | 12–48 V

OMRON H3YN-2-B DC12 | Panel Mount Multifunction Timer Relay | 12 V DC, 0.1 s–10 min, DPDT

OMRON H3RN-2 24VAC | Plug-In Multifunction Timer Relay | 24 V AC, 0.1–600 s, DPST

Meet Us F2F

Brannan 81/154/0 | Industrial V-Line Thermometer | Straight, 200 mm, Polypropylene, 0 to +50 °C, 75 mm pocket

Brannan 81/153/0-M | Industrial V-Line Thermometer | Straight, 200 mm, Aluminium, 0 to +50 °C, 63 mm pocket

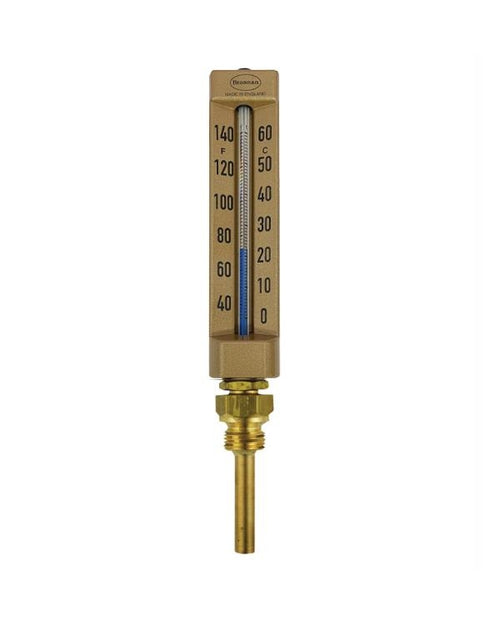

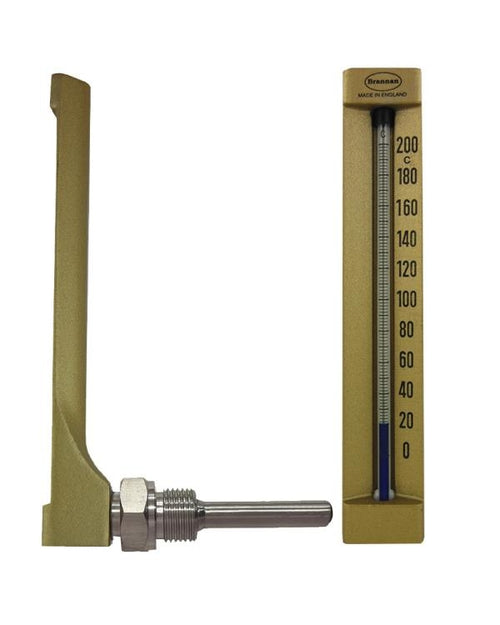

Brannan 81/152/0-M | Industrial V-Line Thermometer | Straight, 200 mm, Aluminium, 0 to +50 °C, 50 mm pocket
