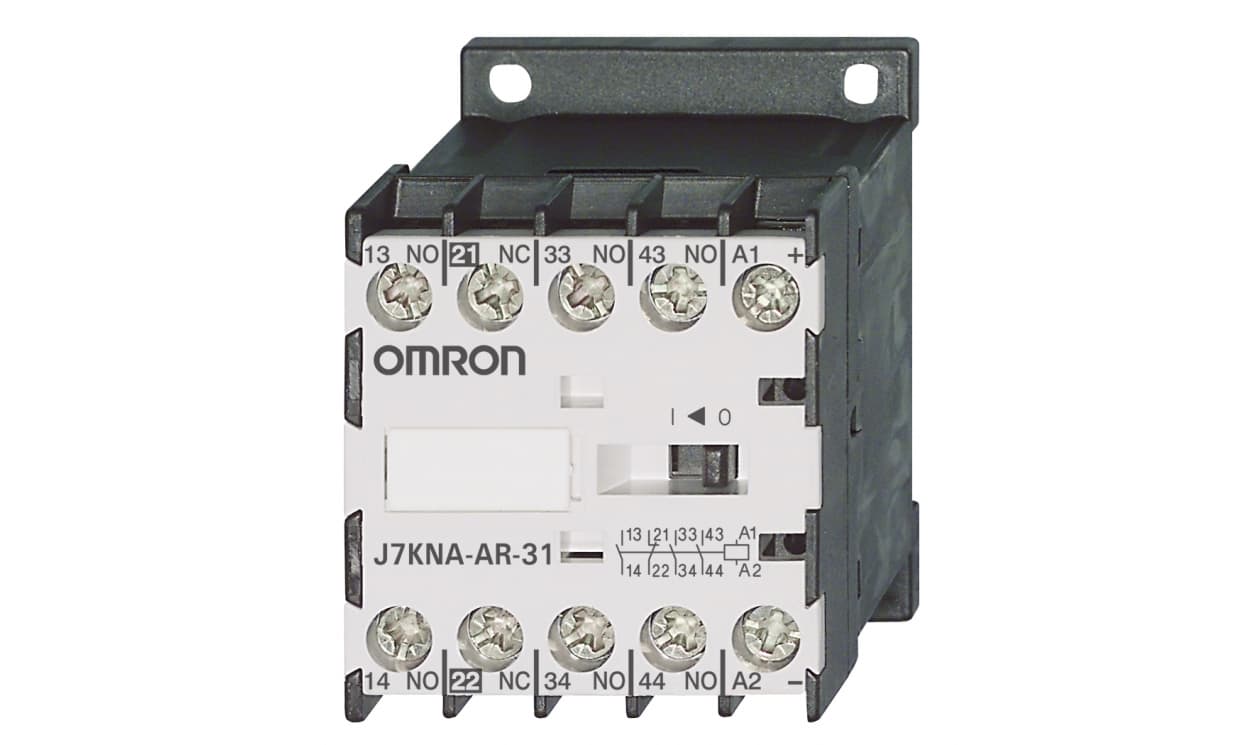

Omron J7KNA-AR-31 24D, J7KNA Contactor Relay, 24 V dc Coil, 4-Pole, 10 A, 3NO + 1NC

Part Number : J7KNA-AR-31 24D

Availability: Sold out

Detailed Description
Specifications

Omron J7KNA Series Contactor Relay, 24V DC Coil Voltage, Screw Terminal - J7KNA-AR-31 24D

This contactor relay is an important element designed for effective control in various electrical applications. With a coil voltage of 24V DC and the ability to manage significant loads, it enhances operational efficiency in automation and industrial settings. This relay is valuable for executing tasks with precision while ensuring safety in managing electrical circuits.

Features & Benefits

• Designed with a 3NO and 1NC configuration for flexibility
• Features screw terminals for secure, straightforward connections
• Includes four auxiliary contacts for additional functionality

Applications

• Ideal for managing motors and powerful machinery
• Suitable for automation systems requiring accurate control
• Commonly used in textiles, packaging, and assembly line operations

What specifications should be considered for compatibility with existing systems?

It's essential to verify the coil voltage and contact rating to ensure the relay can manage the required load without exceeding the 10A limit.

How does temperature impact performance and reliability?

The relay's performance is successfully maintained between -40°C and +90°C, ensuring reliable operation across varying environmental conditions.

What installation requirements are necessary?

The relay features screw terminals that facilitate easy installation, ensuring secure connections for straightforward wiring.

Are there limitations on the type of loads it can control?

While it effectively manages inductive loads, it is important to confirm that the maximum current rating is not exceeded for the products in use.

Brand	Omron
Coil Voltage	24 V dc
Number of Poles	4
Contact Current Rating	10 A
Series	J7KNA
Normal State Configuration	3NO + 1NC
Number Of Auxiliary Contacts	4
Auxiliary Contact Configuration	3NO/1NC
Terminal Type	Screw
Width	45mm
Depth	49mm
Pole and Throw Configuration	4P
Maximum Operating Temperature	+60 °C, +90 °C
Minimum Operating Temperature	-40°C
