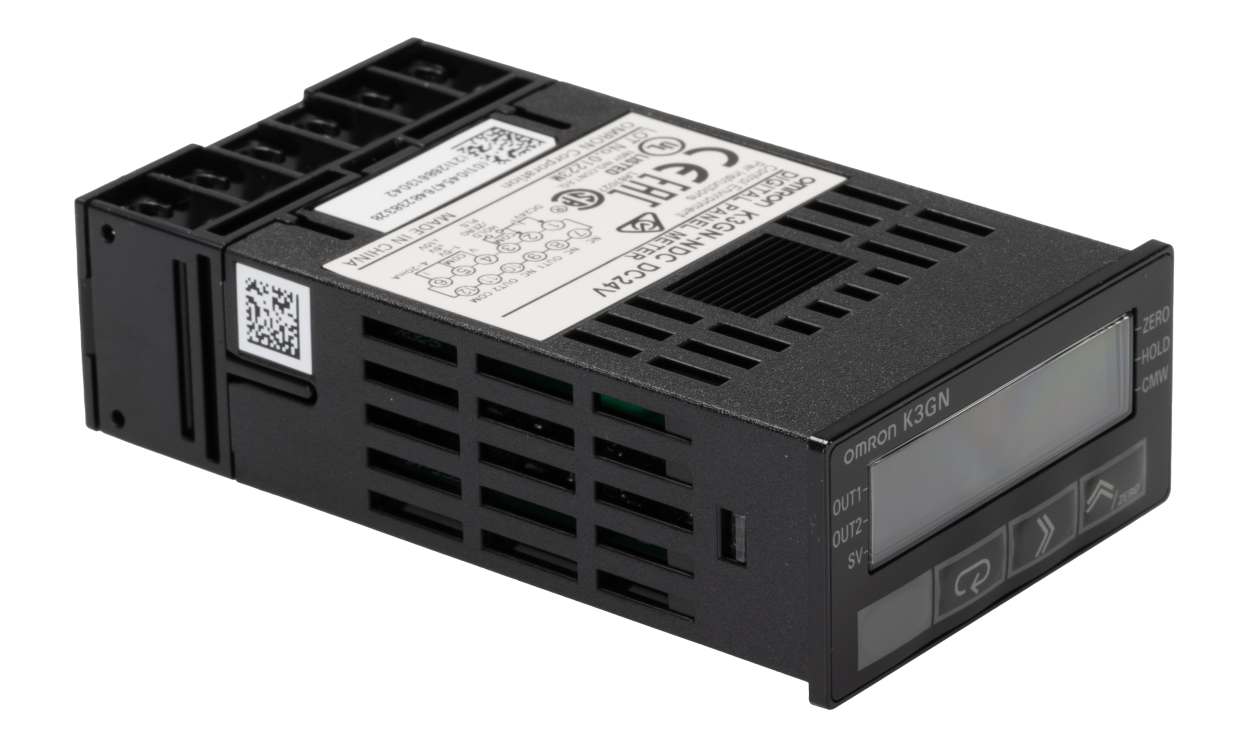

OMRON K3GN-NDC 24VDC | Digital Panel Multi-Function Meter | Current, Pulse, Voltage, 22.2 x 45 mm
Part Number : K3GN-NDC 24VDC
The OMRON K3GN-NDC 24VDC is a K3GN digital panel meter that measures current, pulse and voltage on a 5-digit, 7-segment LCD with 7 mm digits. It fits a 22.2 x 45 mm panel cutout with a depth of 83 mm.
- Measurement ranges: 0 to 10 V dc, 0 to 5 V dc, 1 to 5 V dc, 0 to 20 mA, 4 to 20 mA
- Display: 7-segment LCD, 5 digits, 7 mm digit height
- Cutout: 22.2 x 45 mm; depth 83 mm
- Approvals: CSA C22.2, UL 508
- Operating temperature: -10 to +55 °C
For pricing, please contact our experts.
