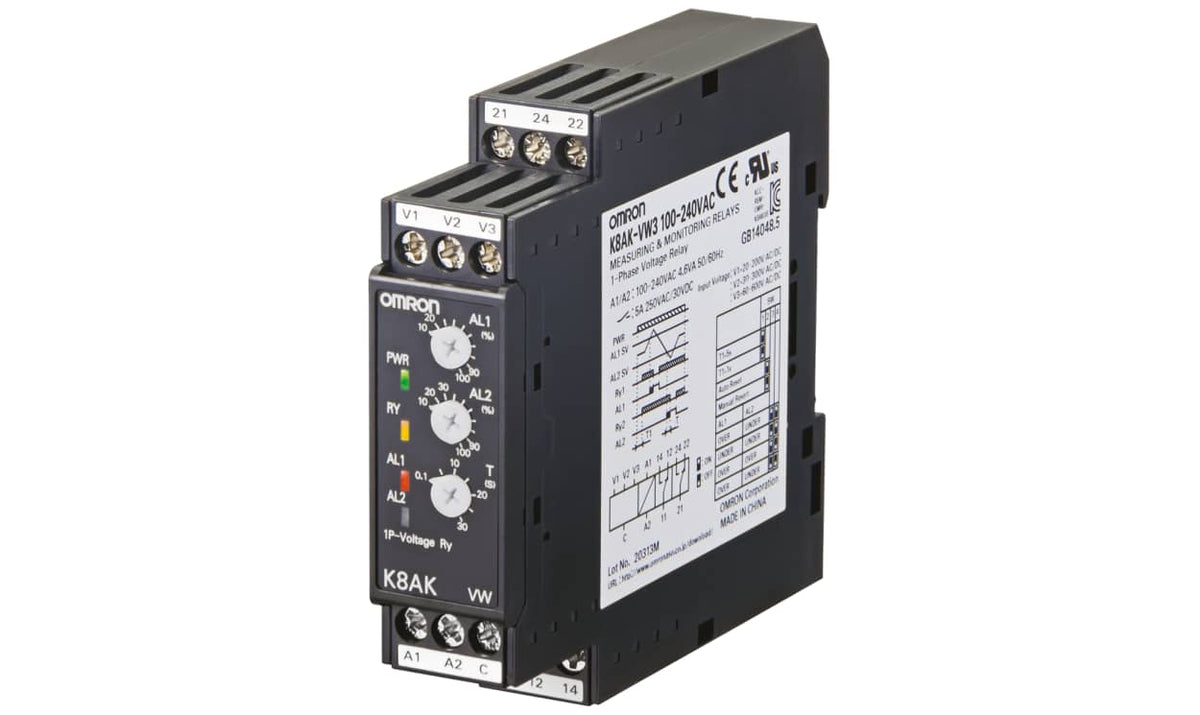

OMRON K8AK-VW3 24VAC/DC | Voltage Monitoring Relay | 20 to 600 V AC/DC, 1 Phase, 2 x SPDT

Name: OMRON K8AK-VW3 24VAC/DC | Voltage Monitoring Relay | 20 to 600 V AC/DC, 1 Phase, 2 x SPDT
Brand: OMRON
SKU: K8AK-VW3 24VAC/DC
Availability: OutOfStock

Part Number : K8AK-VW3 24VAC/DC

For single-phase voltage supervision, the OMRON K8AK-VW3 24VAC/DC relay provides voltage ranges of 20 to 200 V AC/DC, 30 to 300 V AC/DC and 60 to 600 V AC/DC, plus overvoltage and undervoltage detection. It switches two SPDT outputs and mounts on DIN rail in a 22.5 mm wide housing. Per the product description, the K8AK-VW3 24VAC/DC handles AC or DC input. The description lists 24 VAC/DC for the K8AK-VW3 24VAC/DC.

Voltage ranges: 20 to 200 V AC/DC, 30 to 300 V AC/DC, 60 to 600 V AC/DC
Detection: Overvoltage, undervoltage
Contacts: 2 x SPDT
Time delay: 0.1 to 30 s
Operating temperature: -20 to +60 °C

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron K8AK-VW Series Monitoring Relay, 1 Electrical Phase, 2 x SPDT Contact Configuration - K8AK-VW3 24VAC/DC

This monitoring relay is designed for effective voltage supervision across electrical systems. With compact dimensions of 22.5mm x 100mm x 90mm, it efficiently monitors for overvoltages and undervoltages, ensuring reliable operation of sensitive equipment. Operating within a temperature range of -20°C to +60°C, it is well-suited for various industrial environments and applications.

Features & Benefits

• Supports simultaneous monitoring of overvoltages and undervoltages
• Separate settings for overvoltage and undervoltage outputs enhance flexibility
• SPDT contact configuration allows for versatile relay connections
• Inputs isolated from power supply enhance safety during operation
• LED indicators provide clear status updates on output performance

Applications

• Used in industrial facilities for voltage regulation
• Suitable for equipment needing consistent voltage monitoring
• Ideal for process control systems requiring precise voltage management
• Utilised in electrical panels for safeguarding against voltage fluctuations

What range of input voltages can be monitored with this device?

The relay can monitor input voltages across a range of 20 to 600 V AC/DC, depending on the selected terminal connections.

How does the time delay feature improve system reliability?

This feature allows for a configurable delay between detecting voltage issues and relay activation, preventing false alarms during transient conditions.

What are the implications of selecting manual versus automatic reset?

Manual reset requires the operator to intervene to reactivate after an alarm, while automatic reset re-engages the relay once conditions normalise, offering flexibility based on operational needs.

Standards

UL 60947-5-1, UL 508, IP 20

Brand	Omron
Monitoring Application	Voltage
Electrical Phase	1
Contact Configuration	2 x SPDT
Voltage Sensing Range	20 → 200 V ac/dc, 30 → 300 V ac/dc, 60 → 600V ac/dc
Voltage Sensitivity	Overvoltage, Undervoltage
Mounting Type	DIN Rail
Time Delay	0.1 → 30s
Series	K8AK-VW
Width	22.5mm
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-20°C
Minimum Voltage Sensed	20 V ac/dc, 30 V ac/dc, 60V ac/dc
Length	22.5mm
Height	90mm
Operating Temperature Range	+60°C
Maximum Voltage Sensed	200 V ac/dc, 300 V ac/dc, 600V ac/dc
Dimensions	22.5 x 100 x 95mm

Monitoring relay 22.5mm wide, Single phase over or under voltage 20 to 600V AC or DC, Two SPDT, 24VAC/DC

OMRON K8AK-VW3 24VAC/DC | Voltage Monitoring Relay | 20 to 600 V AC/DC, 1 Phase, 2 x SPDT

DOWNLOAD CATALOG

K8AK-VW3 24VAC DC Brochure - The Smart Way to Protect Your System A700000014068122

OMRON K8AK-VW3 24VAC/DC | Voltage Monitoring Relay | 20 to 600 V AC/DC, 1 Phase, 2 x SPDT
