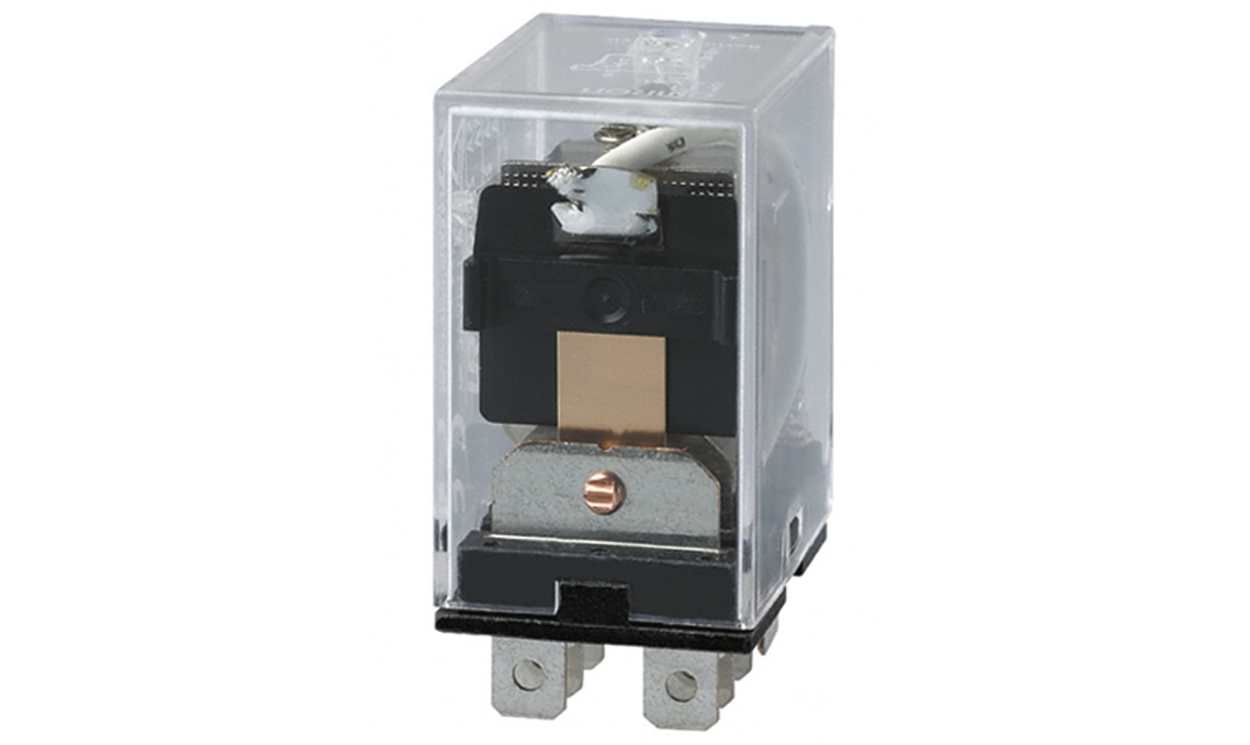

OMRON LY1 24VDC | Plug-In Power Relay | 24 V DC Coil, SPDT, 15 A

Name: OMRON LY1 24VDC | Plug-In Power Relay | 24 V DC Coil, SPDT, 15 A
Brand: OMRON
SKU: LY1 24VDC
Availability: OutOfStock

Part Number : LY1 24VDC

Rated for 15 A switching current, the OMRON LY1 24VDC is an SPDT power relay driven by a 24 V DC coil. The LY1 24VDC belongs to the LY series (non-latching) and comes with plug-in mounting and PCB pin terminals.

Coil-to-contact isolation: 2 kV AC
Operating temperature: −25 °C to +55 °C
Contact material: silver alloy
Dimensions: length 21.5 mm, depth 36 mm, height 28 mm
Coil resistance 650 Ω, coil power 900 mW
Maximum switching voltage: 250 V AC / 125 V DC

Availability: in stock

Detailed Description
Specifications
Downloads

Omron Series LY Power Relay, 24V DC Coil Voltage, 15A Switching Current - LY1 DC24

This power relay provides robust and efficient performance for general-purpose applications. The device operates at a coil voltage of 24V DC and features a single-pole double-throw (SPDT) configuration, suitable for various automation tasks. With compact dimensions of 21.5mm in length, 36mm in depth, and 28mm in height, this power relay offers a plug-in design that simplifies installation and maintenance.

Features & Benefits

• Offers an isolation rating of 2kV AC for enhanced safety
• Capable of handling a maximum switching voltage of 250V AC
• Integrated design includes a built-in diode for surge protection
• Wide operating temperature range from -25°C to +55°C for versatile usage

Applications

• Utilised in power distribution systems for efficient control
• Ideal for automotive where reliable switching is essential
• Used in industrial machinery for enhanced operational safety
• Used in HVAC systems to control heating and cooling systems

What current ratings are supported by this relay?

It supports a maximum switching current of 15A, making it suitable for various applications requiring high current handling.

How does the relay ensure electrical safety during operation?

It features an isolation voltage of 2kV AC between the coil and contacts to prevent unintended electrical faults.

What is the expected operational lifespan of this relay?

The relay is designed for longevity, boasting a mechanical life of up to 100 million operations and electrical life of 200,000 operations.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPDT
Mounting Type	Plug In
Switching Current	15A
Number of Poles	1
Latching	No
Series	LY
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	21.5mm
Coil Resistance	650Ω
Coil Power	900mW
Depth	36mm
Isolation Coil To Contact	2kV ac
Height	28mm
Minimum Operating Temperature	-25°C
Contact Material	Silver Alloy
Maximum Operating Temperature	+55°C
