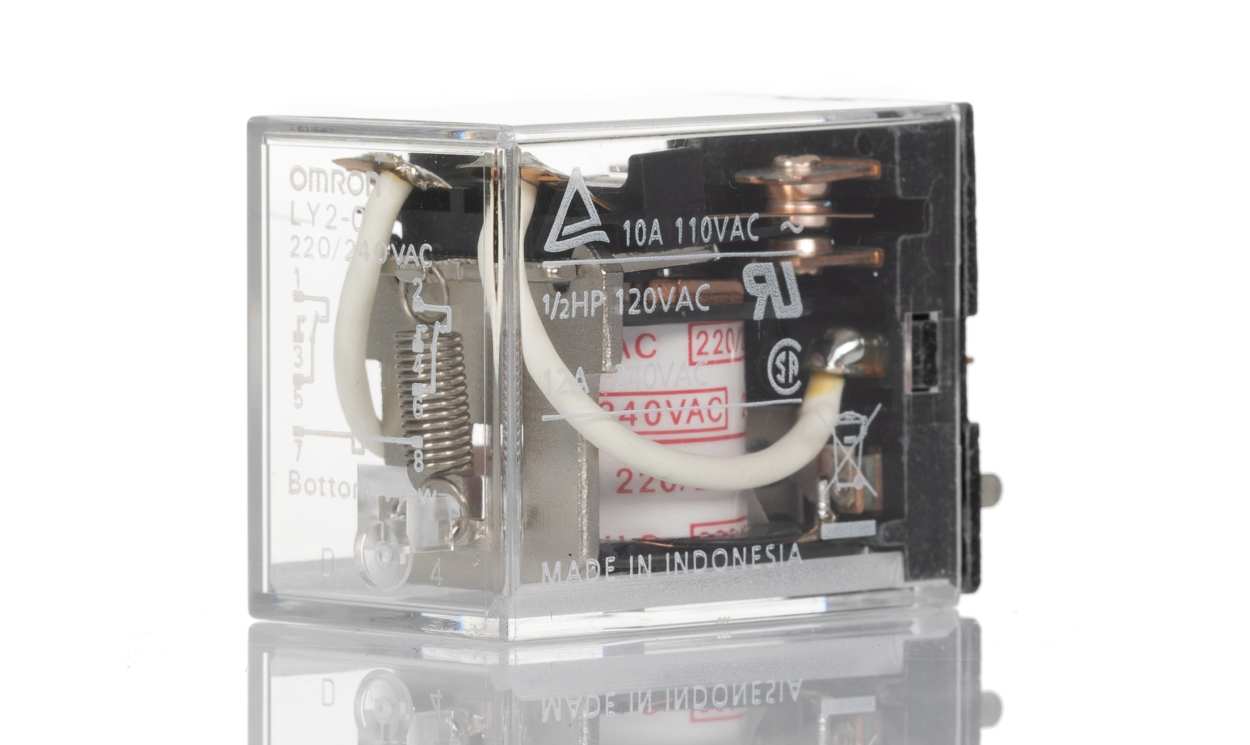

Name: Omron LY2-0 220/240VAC, PCB Mount Power Relay, 240V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: LY2-0 220/240VAC
Availability: OutOfStock

Omron LY2-0 220/240VAC, PCB Mount Power Relay, 240V ac Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron LY2-0 220/240VAC, PCB Mount Power Relay, 240V ac Coil, 10A Switching Current, DPDT

Part Number : LY2-0 220/240VAC

Availability: Sold out

Detailed Description
Specifications

Omron LY2 Series Power Relay, 1.1W Coil Power, 240V AC Coil Voltage - LY2-0 AC220/240

This power relay by Omron is designed for general-purpose and power applications. With the capabilities of a DPDT configuration and silver alloy contacts, this relay offers reliable operation. The maximum switching power of 1.1 kVA and coil resistance of 18790 Ω make it a versatile choice for various power requirements. The depth of 36mm and height of 28mm ensure that the relay fits easily in circuit boards.

Features & Benefits

• DPDT configuration allows for versatile power switching applications
• Silver alloy contact material ensures reliable and efficient operation
• Coil power of 1.1 W and coil resistance of 18790 Ω for optimal performance
• Maximum switching power of 1.1 kVA and voltage of 240 V ac for high-powered applications.

Applications

• Suitable for general-purpose and power applications
• Ideal for circuit boards, power control systems, and application requiring DPDT configuration
• Can be used in industrial automation, electronics, and electrical applications

Can it handle high-power applications?

Yes, this Omron power relay is specifically designed to manage applications with high power requirements.

Will it fit easily in circuit boards?

Yes, with dimensions of 36mm (depth) and 28mm (height), it ensures an easy fit in circuit board setups.

Is it suitable for general-purpose use?

This power relay by Omron is reliablely suited for general-purpose applications requiring reliable power switching.

Brand	Omron
Coil Voltage	240V ac
Contact Configuration	DPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	2
Series	LY2
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	21.5mm
Coil Resistance	18790Ω
Coil Power	1.1W
Minimum Operating Temperature	-25°C
Standards Met	CE
Contact Material	Silver Alloy
Height	28mm
Life	500000 (Electrical) Operations, 50000000 (Mechanical) Operations
Depth	36mm
