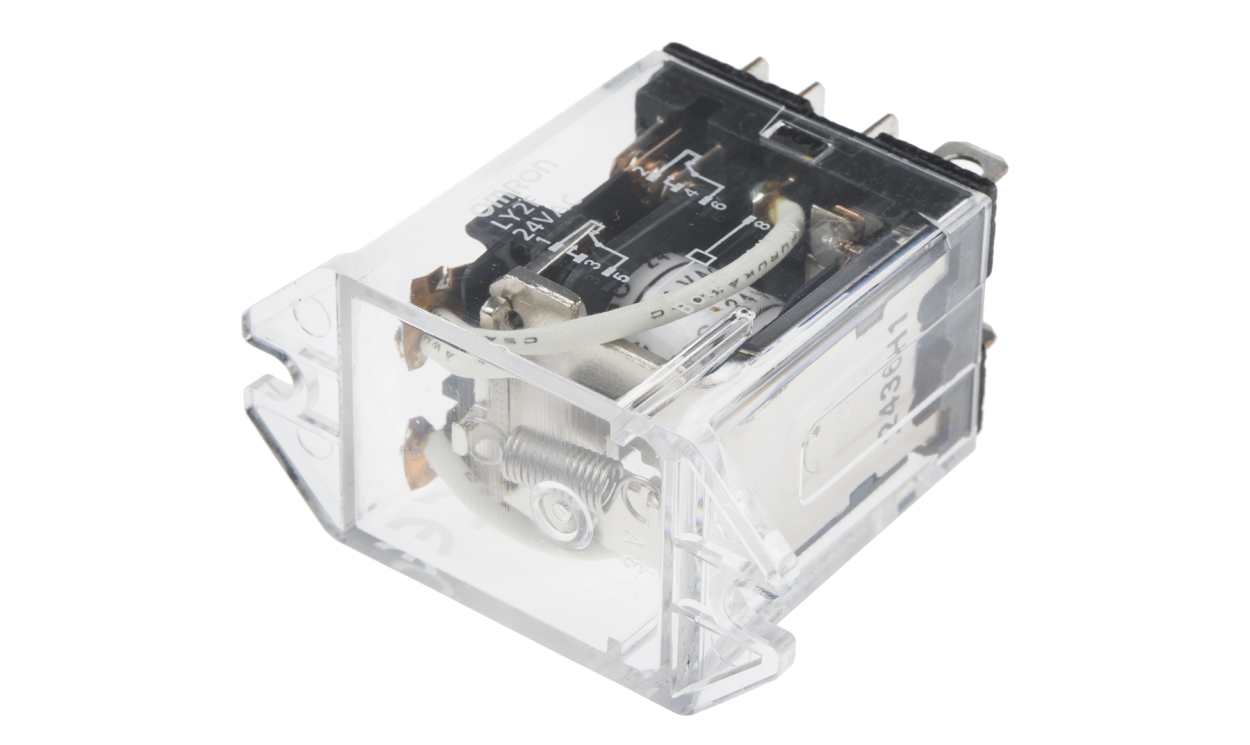

Name: Omron LY2F 24VAC, Case Surface Mount Power Relay, 24V ac Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: LY2F 24VAC
Availability: OutOfStock

Omron LY2F 24VAC, Case Surface Mount Power Relay, 24V ac Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron LY2F 24VAC, Case Surface Mount Power Relay, 24V ac Coil, 10A Switching Current, DPDT

Part Number : LY2F 24VAC

Availability: Sold out

Detailed Description
Specifications

Omron LY2F Series Power Relay, 24V AC Coil Voltage, DPDT Contact Configuration - LY2F AC24

This power relay effectively manages high voltage operations in a variety of electrical applications. Its robust construction and technical specifications provide consistent performance and safety within designated limits. Suitable for both automation and industrial electronics, this device contributes to operational efficiency in power management tasks.

Features & Benefits

• Maximum switching voltages of 250Vac and 125Vdc
• Operating temperature range from -25°C to +55°C for flexible application
• Rated for up to 500,000 electrical operations, providing longevity

Applications

• Utilised in electrical automation systems for effective control
• Ideal for power distribution management in industrial environments
• Suitable for circuit management to handle loads efficiently

What are the coil voltage specifications for compatibility?

The relay functions at a coil voltage of 24Vac, ensuring compatibility with standard control systems used across various applications.

How many poles does the relay feature, and what does it mean for operation?

This relay has a DPDT configuration with 2 poles, offering versatile control options for both switching and interlocking situations.

What are the expected life cycles for electrical and mechanical operations?

The relay is rated for up to 500,000 electrical operations and 50,000,000 mechanical operations, supporting prolonged use in various environments.

How does the temperature range affect its application?

With an operating temperature between -25°C and +55°C, it is suited for a range of environments, from cold applications to hotter conditions, ensuring reliable operation in various settings.

What terminal type is available, and how does it affect installation?

The device features PCB pin terminals, enabling straightforward mounting on printed circuit boards, which facilitates easy integration into electronic systems.

Brand	Omron
Coil Voltage	24V ac
Contact Configuration	DPDT
Mounting Type	Case Surface Mount
Switching Current	10A
Number of Poles	2
Series	LY2F
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	22.5mm
Coil Resistance	180Ω
Coil Power	1 → 1.2VA
Contact Material	Silver Alloy
Height	44mm
Life	500000 (Electrical) Operations, 50000000 (Mechanical) Operations
Depth	35.5mm
Isolation Coil To Contact	2kV ac
Maximum Operating Temperature	+55°C

Omron LY2F 24VAC, Case Surface Mount Power Relay, 24V ac Coil, 10A Switching Current, DPDT

Omron LY2F 24VAC, Case Surface Mount Power Relay, 24V ac Coil, 10A Switching Current, DPDT

Omron LY2F Series Power Relay, 24V AC Coil Voltage, DPDT Contact Configuration - LY2F AC24

Features & Benefits

Applications

What are the coil voltage specifications for compatibility?

How many poles does the relay feature, and what does it mean for operation?

What are the expected life cycles for electrical and mechanical operations?

How does the temperature range affect its application?

What terminal type is available, and how does it affect installation?
