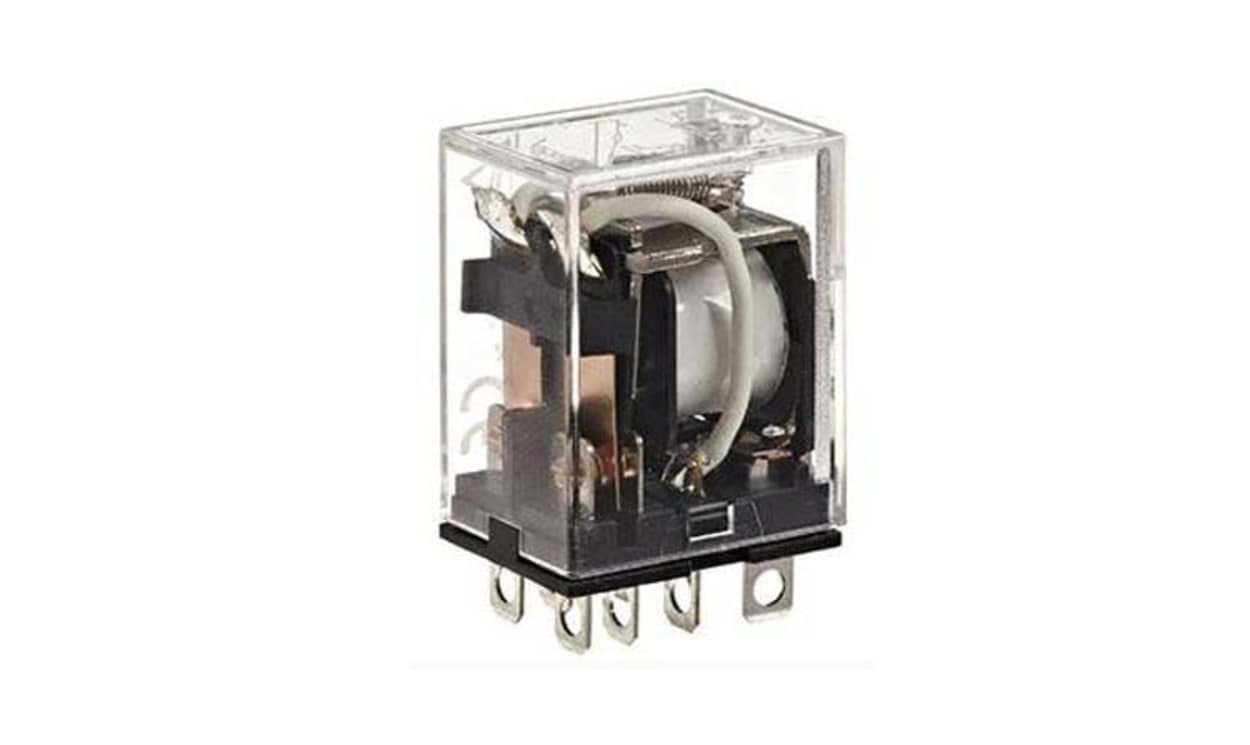

Omron LY2N-D2 100/110VDC, Plug In Power Relay, 110V dc Coil, 10A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron LY2N-D2 100/110VDC, Plug In Power Relay, 110V dc Coil, 10A Switching Current, DPDT

Name: Omron LY2N-D2 100/110VDC, Plug In Power Relay, 110V dc Coil, 10A Switching Current, DPDT
Brand: OMRON
SKU: LY2N-D2 100/110VDC
Availability: OutOfStock

Part Number : LY2N-D2 100/110VDC

Relay, plug-in, 8-pin, DPDT, 10 A, LED indicator, coil suppressor

Availability: Sold out

Detailed Description
Specifications
Features

LY Series

Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm

Approvals

VDE, UL, CSA, TUV

Brand	Omron
Coil Voltage	110V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	2
Series	LY2N
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	21.5mm
Coil Resistance	11000Ω
Coil Power	900mW
Contact Material	Silver Alloy
Height	28mm
Life	200000 (Electrical) Operations, 50000000 (Mechanical) Operations
Depth	36mm
Isolation Coil To Contact	2kV ac
Maximum Operating Temperature	+40°C

Relay, plug-in, 8-pin, DPDT, 10 A, LED indicator, coil suppressor
