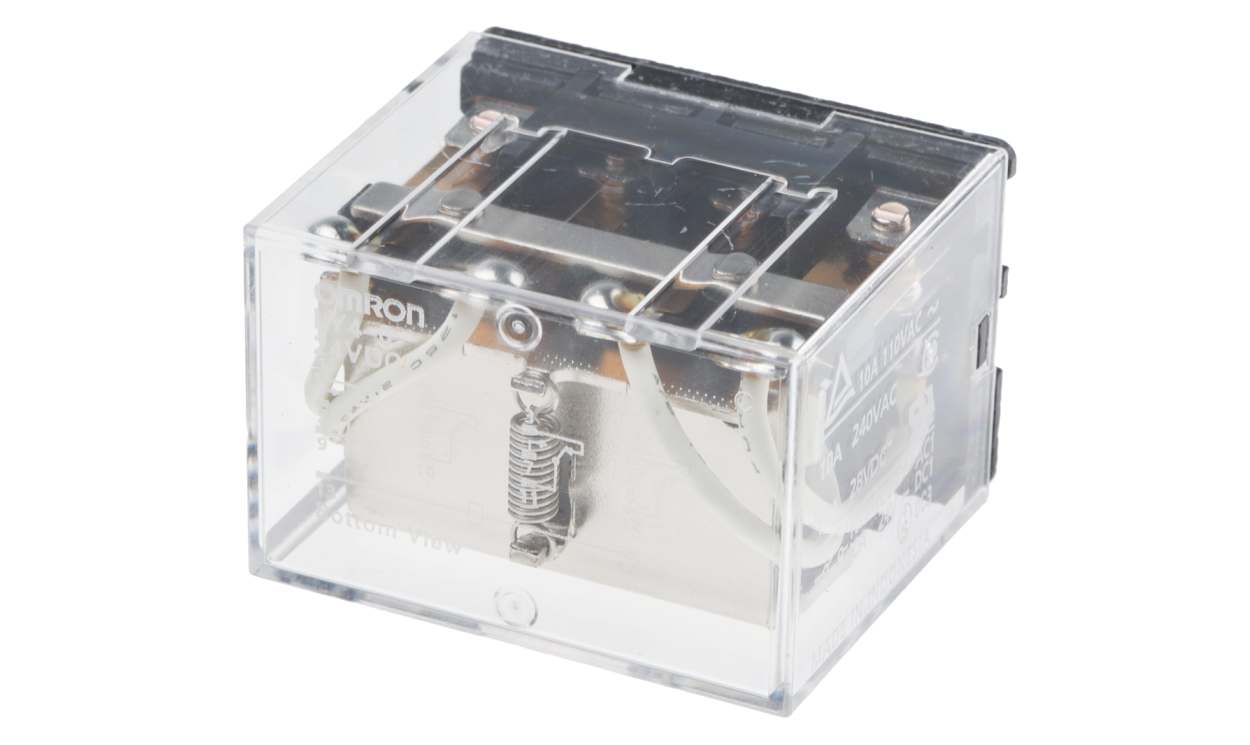

Name: Omron LY4-0 24VDC, Soldering Power Relay, 24V dc Coil, 10A Switching Current, 4PDT
Brand: OMRON
SKU: LY4-0 24VDC
Availability: OutOfStock

Omron LY4-0 24VDC, Soldering Power Relay, 24V dc Coil, 10A Switching Current, 4PDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron LY4-0 24VDC, Soldering Power Relay, 24V dc Coil, 10A Switching Current, 4PDT

Part Number : LY4-0 24VDC

Availability: Sold out

Detailed Description
Specifications

Omron LY4 Series Power Relay, 24V DC Coil Voltage, 4PDT Contact Configuration - LY4-0-DC24

This power relay is suitable for a range of automation and electrical applications, providing effective control and switching functions. With a coil voltage of 24V DC, this electromechanical relay is ideal for scenarios requiring efficient power management. Its robust construction allows it to manage various electrical tasks, making it a useful component for professionals in electronics and mechanical industries.

Features & Benefits

• PCB pin terminal type enables straightforward installation
• Capable of withstanding 100 million mechanical operations for extended service life
• Coil resistance of 350Ω optimises power usage

Applications

• Utilised in automated control systems and machinery
• Suitable for power management in industrial equipment
• Used in HVAC system operations

What is the maximum switching voltage for this device?

The maximum switching voltage for AC applications is 250V AC, and for DC applications, it is 125V DC.

How does the coil power impact function?

The relay operates with a coil power of 1.5W, ensuring efficient energy use for dependable switching actions while minimising heat generation.

What is the typical lifespan of this relay under normal operating conditions?

This relay can handle up to 100,000,000 mechanical operations and 200,000 electrical operations, providing a durable choice for prolonged use.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	4PDT
Mounting Type	Soldering
Switching Current	10A
Number of Poles	4
Latching	No
Series	LY4
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	125V dc
Length	21.5mm
Coil Resistance	350Ω
Coil Power	1.5W
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+40°C
Isolation Coil To Contact	2kV ac
Depth	36mm
Life	100000000 (Mechanical) Operations, 200000 (Electrical) Operations
Height	28mm
