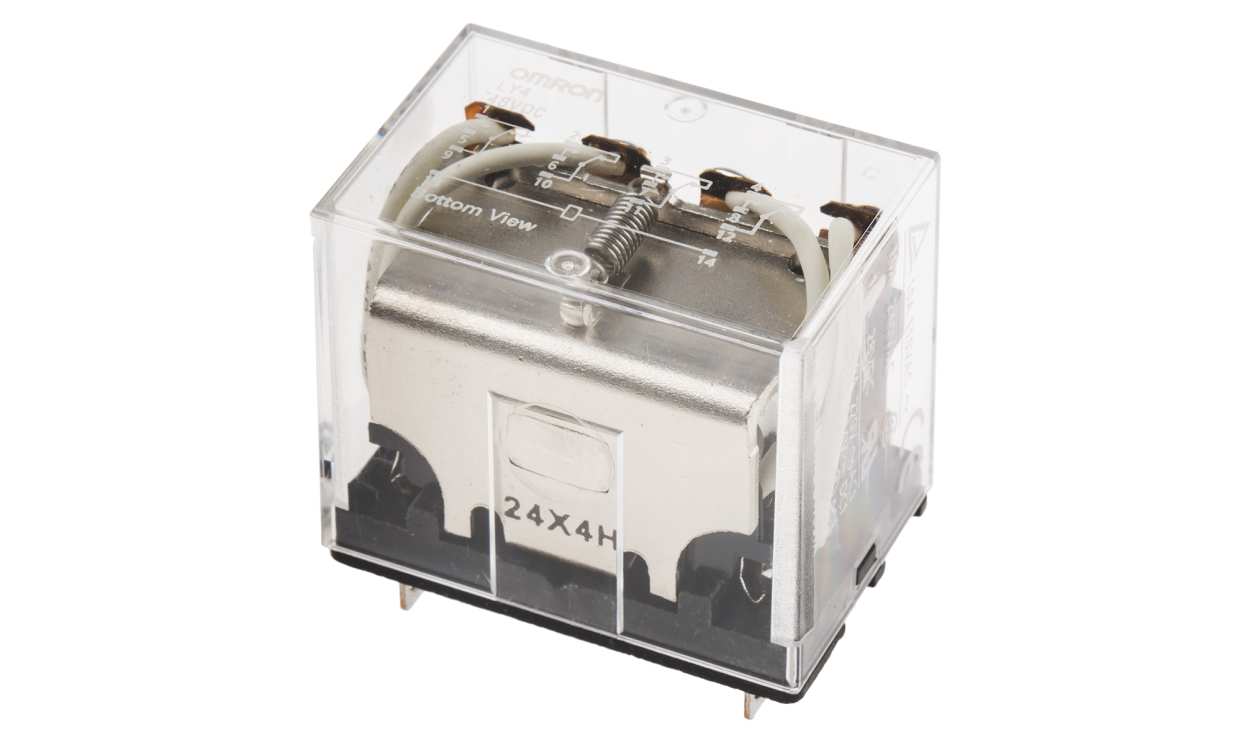

OMRON LY4 48VDC | Power Relay | 48 V DC Coil, 4PDT, 10 A

Name: OMRON LY4 48VDC | Power Relay | 48 V DC Coil, 4PDT, 10 A
Brand: OMRON
SKU: LY4 48VDC
Availability: OutOfStock

Part Number : LY4 48VDC

Rated for 10 A switching current, the OMRON LY4 48VDC is a 4PDT power relay driven by a 48 V DC coil. It has quick-connect terminals and a coil resistance of 1,600 Ω.

Maximum switching power 1.1 kVA AC / 240 W DC
Operating temperature -25 °C to +40 °C
Dimensions 28 x 42.4 x 41.5 mm (L x H x D)
Non-latching operation
4 poles (4PDT)
OMRON LY4 series

Availability: in stock

Detailed Description
Specifications
Downloads

Miniature industrial relays - LY Series

LY Series 10 A miniature industrial relays are extremely compact, have a breaking capacity of 10 A to 220 VAC, with protection against standard arcs.
Long service life, high-efficiency coil, highly resistant to impact and vibration.

Approvals

UL, CSA, VDE and SEV

Brand	Omron
Coil Voltage	48V dc
Contact Configuration	4PDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	4
Latching	No
Series	LY4
Terminal Type	Quick Connect
Length	28mm
Coil Resistance	1600Ω
Height	42.4mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+40°C
Depth	41.5mm
Maximum Switching Power DC	240 W
Maximum Switching Power AC	1.1 kVA
Application	General Purpose
